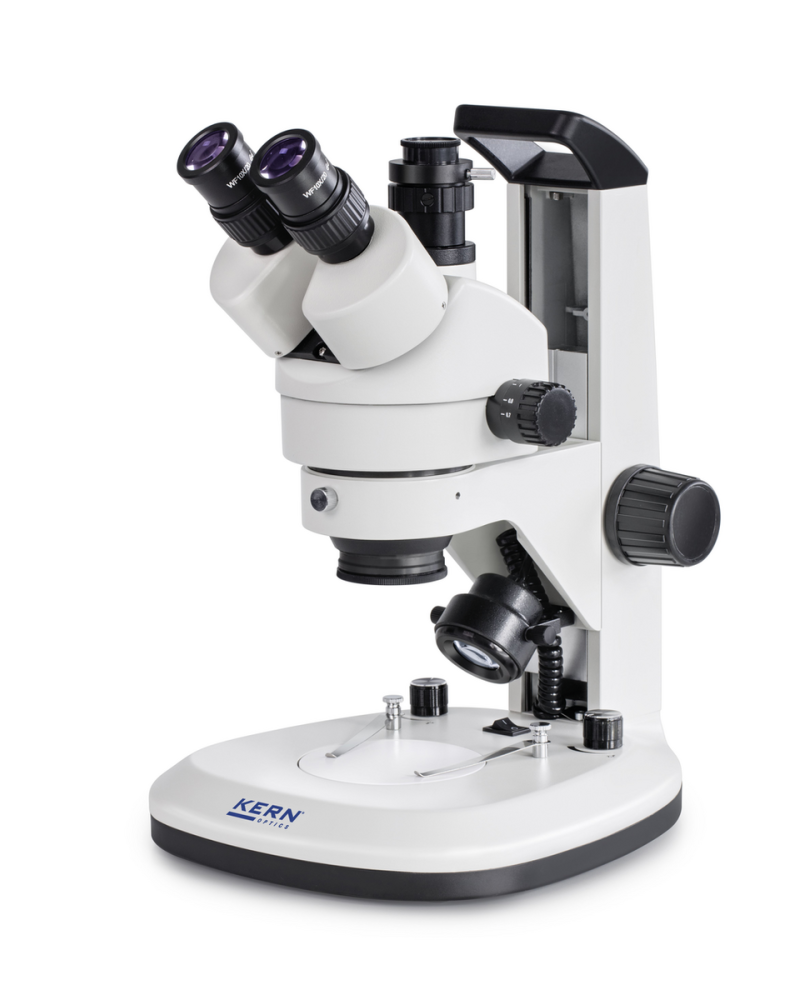

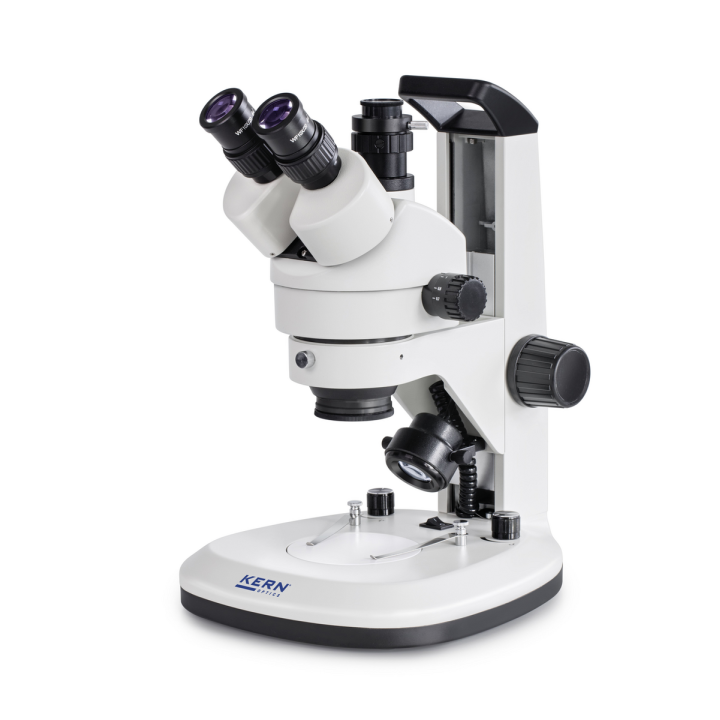

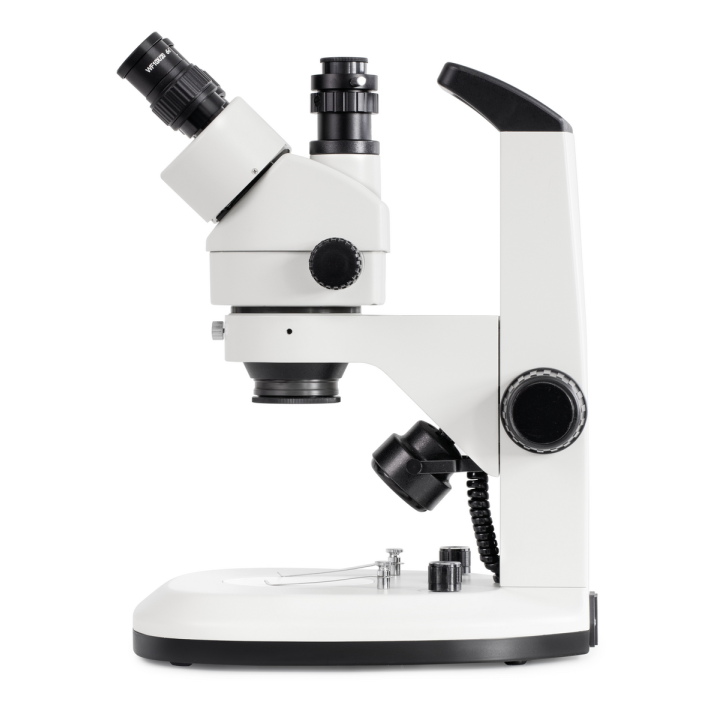

Stereo zoom microscope KERN OZL 468 with handle

• The products in the KERN OZL-46 series are stereo zoom microscopes, which will impress you with their quality, easy handling, flexibility as well as their stability and economical price
• The LED reflected and transmitted illumination included as standard guarantees the very best illumination of your sample
• The highlight of the OZL 465/OZL 466 is the strong, continuously dimmable, integrated LED ring illumination in the objective housing, which ensures uniform, shadow-free illumination. An LED transmitted light variant is also included
• As well as excellent optical characteristics and their large working surface, these models offer the highest level of comfort in this class – ideal for training companies, workshops as well as assembly and repair workstations, e.g. in the electronics industry
• The zoom objective offers you continuous magnification from 7×–45×
• The KERN OZL-46 series is available as a binocular or trinocular version
• The pillar stand offers you the highest level of flexibility and the freedom to remove the microscope head and to integrate it into other modular systems, for example into a universal stand
• With its integrated handle as well as its stable arm curved stand, the KERN OZL 467/OZL 468 has been specially developed for schools and workshops
• A large selection of eyepieces, external illumination units as well as auxiliary objectives are available as accessories
• A protective dust cover, eye cups, as well as multi-lingual user instructions are included in the scope of delivery
• A C-mount adapter is required to connect a camera to the trinocular version. You can select this adapter from the following model outfit list

Scope of application

• In vitro fertilisation, detection of parasites, zoology and botany, tissue preparation, section, quality control

Applications/Samples

• Samples with focus on three-dimesnional impression, zoom with variable magnification (depth, thickness), e.g. insects, seeds, circuit boards, components

FEATURES

Technical data

• Optical system: Greenough optics
• Brightness adjustable (separate)
• Tube 45° inclined
• Magnification ratio: 6,4:1
• Light distribution 50:50
• Interpupillary distance 55 – 75 mm
• Diopter adjustment: Both-sided
• Overall dimensions W×D×H 300×240×420 mm
• Net weight approx. 4 kg
