Indirect Ophthalmoscopes

Indirect ophthalmoscopes for professional fundus examination

Indirect ophthalmoscopes provide a comprehensive view of the fundus and are essential diagnostic instruments in professional ophthalmology. Unlike direct ophthalmoscopy, the fundus is examined using an additional condensing lens positioned between the patient and examiner. This provides a wider field of view and facilitates examination of the peripheral retina.

At V-MEDTECH, ophthalmologists, eye clinics and healthcare facilities can find high-quality HEINE indirect ophthalmoscopes – from premium binocular systems for specialised ophthalmology to compact solutions for flexible and mobile examinations.

Direct or indirect ophthalmoscopy?

Both methods are used to examine the fundus, but their principles and clinical applications differ significantly.

Direct ophthalmoscopy

With a direct ophthalmoscope, the examiner views the fundus directly through the instrument.

Typical advantages include:

compact instrument design;
convenient mobile use;
high magnification;
quick fundus examinations;
suitable for general medical diagnostics.

Indirect ophthalmoscopy

Indirect ophthalmoscopy uses a separate condensing lens between the patient and examiner.

This makes it possible to:

view larger areas of the retina;
examine peripheral retinal regions more effectively;
assess structures stereoscopically with binocular systems;
perform more comprehensive ophthalmic examinations.

For ophthalmology and retinal diagnostics, indirect ophthalmoscopy is therefore particularly important.

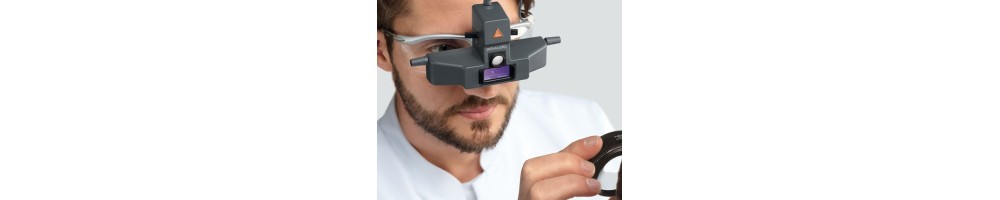

Binocular indirect ophthalmoscopes

Wide field of view and stereoscopic examination

With a binocular indirect ophthalmoscope, the examiner views the fundus with both eyes.

This provides stereoscopic vision and supports three-dimensional assessment of visible retinal structures.

Another major advantage is the large retinal area that can be viewed. Combined with a suitable condensing lens, the technique also facilitates examination of more peripheral areas of the retina.

HEINE indirect ophthalmoscopes

HEINE is an established manufacturer of professional ophthalmic diagnostic instruments and offers different systems for indirect ophthalmoscopy.

Important models include:

HEINE OMEGA 600
HEINE OMEGA 500
HEINE SIGMA 250
HEINE MONOCULAR

These provide different solutions – from premium binocular instruments for specialised ophthalmology to compact systems for flexible examinations.

HEINE OMEGA 600

Premium binocular indirect ophthalmoscope for professional ophthalmology

The HEINE OMEGA 600 represents the modern premium system within the HEINE range of indirect ophthalmoscopes.

It is designed for demanding ophthalmic examinations and combines high-quality optics, powerful illumination, ergonomic wearing comfort and precise adjustment options.

The OMEGA 600 is particularly suitable for:

ophthalmologists;
ophthalmology clinics;
retinal specialists;
specialist eye departments;
facilities with a high examination frequency.

During long examination sessions, optical performance is only one consideration. Weight distribution, balance and operating comfort can also make an important difference in everyday clinical practice.

HEINE OMEGA 500

Proven binocular indirect ophthalmoscope

The HEINE OMEGA 500 is an established binocular indirect ophthalmoscope for professional fundus examination.

The system combines a high-quality optical design with extensive adjustment options and a headband concept developed for regular clinical use.

It is particularly suitable for ophthalmology practices, clinics and healthcare facilities where detailed fundus examinations are performed regularly.

HEINE SIGMA 250

Compact binocular indirect ophthalmoscopy

The HEINE SIGMA 250 follows a more compact concept than traditional OMEGA headband ophthalmoscopes.

It combines the advantages of binocular indirect ophthalmoscopy with a particularly compact instrument design.

The SIGMA 250 is therefore interesting for users who value:

binocular viewing;
compact dimensions;
convenient transport;
flexible applications;
mobile ophthalmic diagnostics.

HEINE MONOCULAR

Indirect ophthalmoscopy in a compact format

The HEINE MONOCULAR provides another option for indirect examination of the fundus.

Unlike binocular systems, viewing is monocular. This can make the instrument an interesting solution when a particularly compact and straightforward system for indirect ophthalmoscopy is required.

For stereoscopic assessment of the fundus, however, binocular systems such as OMEGA or SIGMA remain the preferred solution.

OMEGA 600, OMEGA 500, SIGMA 250 or MONOCULAR?

The appropriate instrument depends primarily on the intended application.

HEINE OMEGA 600

For the highest professional requirements

The modern premium solution for intensive ophthalmic use, demanding fundus examinations and a strong focus on ergonomic comfort.

HEINE OMEGA 500

For professional clinical routine

A proven binocular headband ophthalmoscope for regular and comprehensive fundus examinations.

HEINE SIGMA 250

For compact binocular diagnostics

An attractive option when the advantages of binocular indirect ophthalmoscopy are required in a more compact instrument design.

HEINE MONOCULAR

For compact monocular examinations

A practical solution for users requiring indirect ophthalmoscopy without a binocular headband system.

Advantages of indirect ophthalmoscopy

Indirect ophthalmoscopy offers several important advantages for professional retinal examination.

Wider field of view

Compared with direct ophthalmoscopy, a substantially larger area of the fundus can be viewed at one time.

Examination of the peripheral retina

The indirect technique is particularly valuable when the examination needs to extend beyond the central fundus to more peripheral retinal regions.

Binocular viewing

Binocular systems provide stereoscopic vision, supporting three-dimensional assessment of the structures being examined.

Flexible choice of condensing lens

Different ophthalmic examination lenses allow the field of view, magnification and working distance to be adapted to the examination.

Condensing lenses for indirect ophthalmoscopy

The examination lens is an essential component of indirect ophthalmoscopy.

Depending on its dioptric power, the lens influences factors such as:

magnification;
field of view;
working distance;
size of the visible fundus area.

Commonly used lenses include powers in the range of approximately 20 D to 30 D, although the optimum choice depends on the examination objective and the examiner’s individual preferences.

Why is the field of view important?

Examining only the central fundus is not always sufficient.

Relevant findings may also occur in the retinal periphery. A wide field of view therefore facilitates systematic examination of larger retinal areas.

This is one of the major strengths of indirect ophthalmoscopy.

Indirect ophthalmoscopy in retinal diagnostics

Indirect ophthalmoscopy is particularly important for detailed assessment of the retina.

It is useful when larger or more peripheral areas of the fundus need to be examined.

Typical applications include:

general ophthalmology;
retinal diagnostics;
ophthalmology clinics;
ophthalmic emergency care;
follow-up examinations;
specialised eye departments.

Headband indirect ophthalmoscopes

Hands free during examination

With binocular headband ophthalmoscopes, the optical and illumination system is worn on the examiner’s head.

This provides an important practical advantage: both hands remain available during the examination.

One hand can be used to hold the condensing lens, while the other remains available for positioning or assisting with the examination.

This working principle is particularly valuable during more demanding fundus examinations.

Ergonomics in indirect ophthalmoscopy

For regular professional use, optical quality is not the only consideration.

A headband ophthalmoscope may be worn for extended periods. Important factors therefore include:

weight;
weight distribution;
balance;
headband adjustment;
ease of operation;
heat development;
freedom of movement.

For professionals performing numerous examinations each day, an ergonomically optimised design can make a considerable difference.

LED illumination for indirect ophthalmoscopy

Modern indirect ophthalmoscopes increasingly use high-performance LED technology.

Depending on the instrument, advantages can include:

high light output;
long light-source life;
consistent illumination;
energy-efficient operation;
compact design.

Brightness alone, however, is not the decisive factor. Uniform illumination and the overall quality of the optical system are equally important for professional ophthalmic examination.

Indirect ophthalmoscopes for ophthalmology practices

In a specialised ophthalmology practice, a binocular indirect ophthalmoscope is an important instrument for professional fundus examination.

Systems such as the HEINE OMEGA 600 and OMEGA 500 are particularly interesting when comprehensive retinal examinations are performed regularly.

For more flexible or mobile applications, a compact system such as the SIGMA 250 can be an attractive alternative.

Indirect ophthalmoscopes for hospitals and eye clinics

Indirect ophthalmoscopes are frequently used intensively in hospitals and ophthalmology departments.

Important characteristics include:

reliable optical performance;
robust construction;
ergonomic wearing comfort;
quick adjustment for different users;
powerful illumination;
easy integration into clinical workflows.

Where several clinicians use the same instrument, quick and precise adjustment can be especially important.

Mobile indirect ophthalmoscopy

Not every fundus examination takes place at a fixed ophthalmic workstation.

Indirect ophthalmoscopes can also be used for:

ward examinations;
emergency care;
mobile ophthalmology services;
consultations in other departments;
examinations in different treatment rooms.

Compact systems and suitable mobile power solutions can provide clear advantages in these situations.

Which indirect ophthalmoscope is right for me?

The decision should not be based on price alone.

Important selection criteria include:

binocular or monocular viewing;
required field of view;
illumination system;
ergonomic comfort;
weight and balance;
adjustment options;
mobile or stationary use;
frequency of examinations.

A specialised ophthalmology practice with a high examination volume will have different priorities from a user who primarily requires a portable instrument.

Frequently asked questions about indirect ophthalmoscopes

What is an indirect ophthalmoscope?

An indirect ophthalmoscope is an instrument for examining the fundus using an additional condensing lens positioned between the patient’s eye and the examiner.

What is the main advantage over a direct ophthalmoscope?

One of the principal advantages is the wider field of view, which makes it easier to examine larger areas of the fundus and the peripheral retina.

What does binocular indirect ophthalmoscopy mean?

With binocular indirect ophthalmoscopy, the examiner views the fundus with both eyes. This provides stereoscopic vision and supports three-dimensional assessment.

Do I need an additional lens for indirect ophthalmoscopy?

Yes. Classical indirect ophthalmoscopy requires a suitable condensing lens.

Which lens is commonly used?

A 20 D lens is a widely used choice for indirect ophthalmoscopy. Other lens powers may be preferable depending on the required field of view, magnification and working distance.

What is the difference between OMEGA 600 and OMEGA 500?

Both are professional binocular indirect ophthalmoscopes. The OMEGA 600 represents the newer premium generation with a particular focus on optics, illumination and ergonomics, while the OMEGA 500 is an established professional system for routine clinical use.

When is the SIGMA 250 a good choice?

The SIGMA 250 is particularly interesting when a compact binocular indirect ophthalmoscope is required for flexible or mobile applications.

Who should choose a monocular indirect ophthalmoscope?

A monocular system can be suitable when a compact solution for indirect ophthalmoscopy is required and stereoscopic viewing is not a priority.

HEINE indirect ophthalmoscopes at V-MEDTECH

At V-MEDTECH, ophthalmologists, eye clinics and healthcare facilities can find indirect ophthalmoscopes for professional fundus and retinal examination.

With the HEINE OMEGA 600, OMEGA 500, SIGMA 250 and MONOCULAR, different instrument concepts are available for specialised ophthalmology – from a premium solution for intensive clinical use to compact systems for flexible examinations.
