The KRÜSS AR4 is a classic Abbe refractometer. The scales can be set manually using the drive knob and the refractive index and Brix values are read off using an eyepiece. The temperature is measured with the integrated digital thermometer and displayed on the LCD. The AR4 refractometer can be connected to a circulation thermostat for temperature control. This device can be used in a wide range of applications: for identity checking, purity control and concentration determination of raw materials, semi-finished products and end products or for determining the sugar concentration as well as for incoming and outgoing goods inspection.

• Measurement of liquid and viscous samples, regardless of their viscosity
• Measurement of films possible and of solid samples that have at least one smooth side
• Wide measurement range from nD 1.3000-1.7200 and 0-95 %Brix
• Reading the measured values via an eyepiece
• Integrated thermometer
• Hose connections for temperature control with a circulation thermostat
• Robust housing and easy handling
• Temperature display on LED display

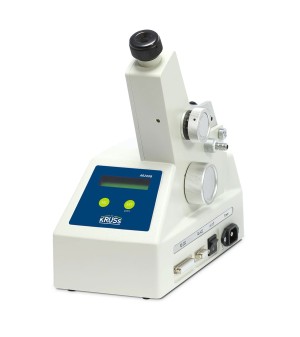

KRÜSS AR2008 is an Abbe refractometer in which the sample is placed between a measuring and illumination prism. The device can measure the refractive index or Brix value and display the measured value together with the temperature on the LCD display. Using the serial interface, the measured values, date and time can be transferred directly to a PC or printed. These devices can be used in a wide range of applications: e.g. in the chemical, petrochemical, oil and grease industries, the food industry, in the pharmaceutical environment and in research & education.

• Measurement of liquid and viscous samples, regardless of their viscosity
• Measurement of films possible and of solid samples that have at least one smooth side
• Wide measurement range from nD 1.3000-1.7200 and 0-95 %Brix
• Digital representation of the measurement data
• Integrated thermometer
• Hose connections for temperature control with a circulation thermostat
• Automatic temperature compensation for the BRIX scale can be switched on as an option
• Robust housing and easy handling
• Serial interfaces RS-232, RS-422

Abbe refractometer KRÜSS AR4

• Measurement of liquid and viscous samples, regardless of their viscosity
• Measurement of films possible and of solid samples that have at least one smooth side
• Wide measurement range from nD 1.3000-1.7200 and 0-95 %Brix
• Reading the measured values via an eyepiece
• Integrated thermometer
• Hose connections for temperature control with a circulation thermostat
• Robust housing and easy handling
• Temperature display on LCD display

Circulation thermostat KRÜSS PT31

• Temperature control using Peltier technology
• Temperature range from 8°C to 35 °C
• Temperature accuracy of ±0.2 °C
• Space-saving, sturdy design
• Suitable for operation with non-flammable liquids (water or water/glycol mixture)
• Bright, easy-to-read LCD matrix display
• Sophisticated, easily accessible operating elements
• Simple and plainly structured functions

KRÜSS AR2008 digital Abbe refractometer

• Measurement of liquid and viscous samples, regardless of their viscosity
• Measurement of films possible and of solid samples that have at least one smooth side
• Wide measurement range from nD 1.3000-1.7200 and 0-95 %Brix
• Digital representation of the measurement data
• Integrated thermometer
• Hose connections for temperature control with a circulation thermostat
• Automatic temperature compensation for the BRIX scale can be switched on as an option
• Robust housing and easy handling
• Serial interfaces RS-232, RS-422

Circulation thermostat KRÜSS PT31

• Temperature control using Peltier technology
• Temperature range from 8°C to 35 °C
• Temperature accuracy of ±0.2 °C
• Space-saving, sturdy design
• Suitable for operation with non-flammable liquids (water or water/glycol mixture)
• Bright, easy-to-read LCD matrix display
• Sophisticated, easily accessible operating elements
• Simple and plainly structured functions
