HEINE HR 2.5x loupes

High-Resolution Medical Loupes with a Large Field of View

The HEINE HR 2.5x High Resolution Binocular Loupes combine 2.5x magnification, a large field of view and excellent depth of field in a lightweight professional optical system. They are designed for medical professionals who need precise magnification while retaining a broad overview of the working area.

HEINE positions 2.5x magnification as an especially versatile choice, including for users starting with professional binocular loupes. Compared with higher-magnification HRP systems, HR 2.5x provides a larger field of view and greater depth of field, making it particularly suitable for extended everyday use.

HEINE HR 2.5x High Resolution Optics

Precision without sacrificing overview

The HEINE HR system uses multi-coated achromatic optics designed to provide crisp, bright images with colour correction.

The HR 2.5x optics weigh only approximately 51 g, are water-resistant and allow the left and right optical systems to be adjusted independently for precise adaptation to the user's pupillary distance.

The combination of moderate magnification, a large visible area and generous depth of field makes HR 2.5x particularly versatile for medical applications.

Three Working Distances: 340, 420 and 520 mm

Choose the loupe according to your working position

HEINE HR 2.5x binocular loupes are available with three working distances:

The magnification remains 2.5x in all three configurations. What changes is the ergonomic working position as well as the resulting field and depth of view.

HEINE HR 2.5x – 340 mm

For shorter working distances

The HR 2.5x / 340 mm configuration is intended for users who naturally work relatively close to the treatment or examination area.

It provides a field of view of approximately 90 mm and a depth of field of approximately 110 mm.

A 340 mm working distance can be particularly appropriate for seated work or for users whose natural ergonomic position places them closer to the patient.

HEINE HR 2.5x – 420 mm

The versatile configuration for many medical applications

The HR 2.5x / 420 mm combines 2.5x magnification with a field of view of approximately 130 mm and a depth of field of approximately 180 mm.

For many users, this represents an attractive balance between comfortable working distance, overview and freedom of movement.

However, working distance should not be selected simply according to popularity. HEINE recommends choosing it according to the user's height, working posture and whether the procedure is typically performed sitting or standing.

HEINE HR 2.5x – 520 mm

Long working distance with an exceptionally large field

The HR 2.5x / 520 mm configuration is designed for users who require a greater distance between their eyes and the working area.

It provides the largest field of view within the HR 2.5x range at approximately 180 mm, together with a generous depth of field of approximately 260 mm.

This can be particularly advantageous for taller users, standing procedures or applications where a greater working distance supports a more natural posture.

Why 2.5x Magnification?

A strong balance between detail and orientation

Higher magnification is not automatically better.

As magnification increases, the visible field generally becomes smaller and precise positioning becomes more demanding. A moderate 2.5x magnification therefore provides an attractive balance between improved detail recognition and maintaining an overview of the treatment area.

HEINE specifically recommends 2.5x magnification for users beginning with binocular loupes and notes that higher magnifications can be considered as experience grows, particularly for applications such as microsurgery.

HEINE i-View Loupe Mount

Adjustable viewing angle for an ergonomic posture

The HR 2.5x optics are equipped with the HEINE i-View loupe mount.

The viewing angle can be individually adjusted, helping the user position the optics according to their natural working posture rather than adapting their posture to the loupes.

The i-View system also allows the optics to be flipped up and, when used with the optional LoupeLight2, the loupes can be moved independently of the illumination.

This is especially useful when frequently switching between magnified and unaided vision.

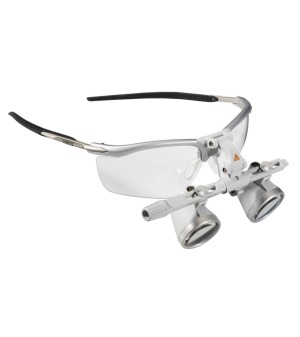

HEINE HR 2.5x with S-FRAME

Lightweight spectacle-mounted configuration

For users who prefer a spectacle-style system, the HR 2.5x optics can be combined with the HEINE S-FRAME.

The S-FRAME weighs approximately 24 g and features adjustable temples and a malleable nose pad. Protective polycarbonate lenses are integrated into the system, while an optional clip-in correction frame allows prescription lenses to be fitted.

Together with the lightweight HR optics, this creates a highly mobile solution for daily clinical use.

HEINE HR 2.5x with Professional L Headband

Stable positioning for longer procedures

The HR 2.5x optics are also available with the HEINE Professional L Headband.

Two principal configurations are available:

• Professional L with S-GUARD splash protection
• Professional L without S-GUARD

The headband can be adjusted in height and width. The version without S-GUARD is particularly suitable for users who want to wear their own prescription spectacles underneath.

HEINE HR 2.5x for Surgery

Magnification while retaining a broad overview

In surgery, the HR 2.5x system is particularly interesting when improved visualisation of anatomical structures is required without restricting the field of view excessively.

The combination of 2.5x magnification and generous depth of field allows the surgeon to work with enhanced detail while maintaining orientation within the surrounding operating area.

The three available working distances also make it possible to adapt the loupe system to different body heights and working positions.

HEINE HR 2.5x for Dentistry

Precision and ergonomics for everyday dental work

Binocular loupes are widely useful in dentistry because clinicians frequently work on small structures over extended periods.

The HR 2.5x provides additional detail while retaining a comparatively large field of view. Selecting the correct working distance can also support a more upright posture and reduce the need to lean towards the patient.

For users who wear their loupes for many hours each day, the combination of optical performance, low weight and ergonomic adjustment is particularly important.

HEINE HR 2.5x for ENT

Detailed viewing with good spatial orientation

For ENT applications, the HR 2.5x can provide useful magnification when examining or treating relatively small anatomical structures.

The large field and generous depth of field help retain spatial orientation, while compatible HEINE illumination systems can provide targeted light along the practitioner's viewing direction.

HEINE HR 2.5x with LED Illumination

Combine magnification and targeted light

HEINE offers professional illumination systems that can be combined with its binocular loupes.

Depending on the required configuration, HR optics can be integrated into professional loupe and headlight systems. HEINE's current range includes combinations and compatible solutions involving LoupeLight2 and ML4 LED.

This makes it possible to combine optical magnification with illumination directed towards the same working area.

HEINE HR 2.5x with LoupeLight2

Compact illumination directly on the loupe system

The HEINE LoupeLight2 provides a compact illumination solution for compatible HR 2.5x configurations.

A particular advantage of the HEINE i-View mechanism is that the HR optics can be flipped up independently of the optional LoupeLight2.

This allows the illumination to remain available even when the magnifying optics are temporarily moved out of the user's field of view.

HEINE HR 2.5x with ML4 LED

Professional illumination for demanding procedures

For applications requiring more powerful illumination, HEINE also offers combinations of its professional ML4 LED HeadLight with HR optics.

This creates a professional system combining 2.5x optical magnification with targeted medical illumination.

HEINE HR 2.5x or HRP – Which Is Right for You?

The key difference is not simply quality: both systems are professional HEINE optics. The decisive factor is how much magnification the application actually requires.

HEINE HR 2.5x is the more versatile choice when a large field of view, generous depth of field and easy orientation are priorities.

HEINE HRP is intended for applications requiring substantially stronger magnification, with 3.5x, 4x and 6x options.

For many everyday medical and dental applications, 2.5x can therefore be the more practical choice. Higher magnification becomes valuable when the additional detail outweighs the reduced field and depth of view.

Which Working Distance Should You Choose?

340 mm – closer working position

Suitable for users whose natural working posture places them relatively close to the patient or treatment area.

420 mm – medium working distance

A balanced configuration for many seated and standing medical applications.

520 mm – greater distance

Particularly interesting for taller users, standing procedures or situations where a greater distance supports a more upright working posture.

The correct distance should ultimately be measured according to the individual user's body height, posture and typical treatment position rather than selected solely on the basis of the application.

Frequently Asked Questions about HEINE HR 2.5x Binocular Loupes

What magnification do HEINE HR loupes provide?

The HEINE HR model provides 2.5x magnification.

Which working distances are available?

HEINE HR 2.5x is available with 340, 420 and 520 mm working distances.

What is the field of view?

Depending on working distance, the field of view is approximately 90 mm at 340 mm, 130 mm at 420 mm and 180 mm at 520 mm.

What is the depth of field?

The respective depth-of-field values are approximately 110, 180 and 260 mm.

How much do the HR 2.5x optics weigh?

The HR 2.5x optics weigh approximately 51 g.

Are HEINE HR 2.5x available with a spectacle frame?

Yes. They are available with the lightweight HEINE S-FRAME.

Are HEINE HR 2.5x available with a headband?

Yes. HEINE offers configurations with the Professional L Headband, either with or without S-GUARD splash protection.

Can HEINE HR 2.5x be combined with LoupeLight2?

Yes. HEINE specifically documents the i-View mount as allowing the optics to flip up independently of the optional LoupeLight2.

Buy HEINE HR 2.5x Binocular Loupes at V-MEDTECH

Discover HEINE HR 2.5x High Resolution Binocular Loupes for surgery, dentistry, ENT and other medical precision applications.

Choose between 340, 420 and 520 mm working distances and different mounting options including the lightweight S-FRAME and Professional L Headband. Compatible HEINE illumination solutions allow the optical system to be expanded for applications requiring targeted LED lighting.

With their combination of 2.5x magnification, large field of view, excellent depth of field and lightweight achromatic optics, HEINE HR binocular loupes provide a versatile professional solution for everyday medical precision work.
