  KRÜSS DR6000 Series

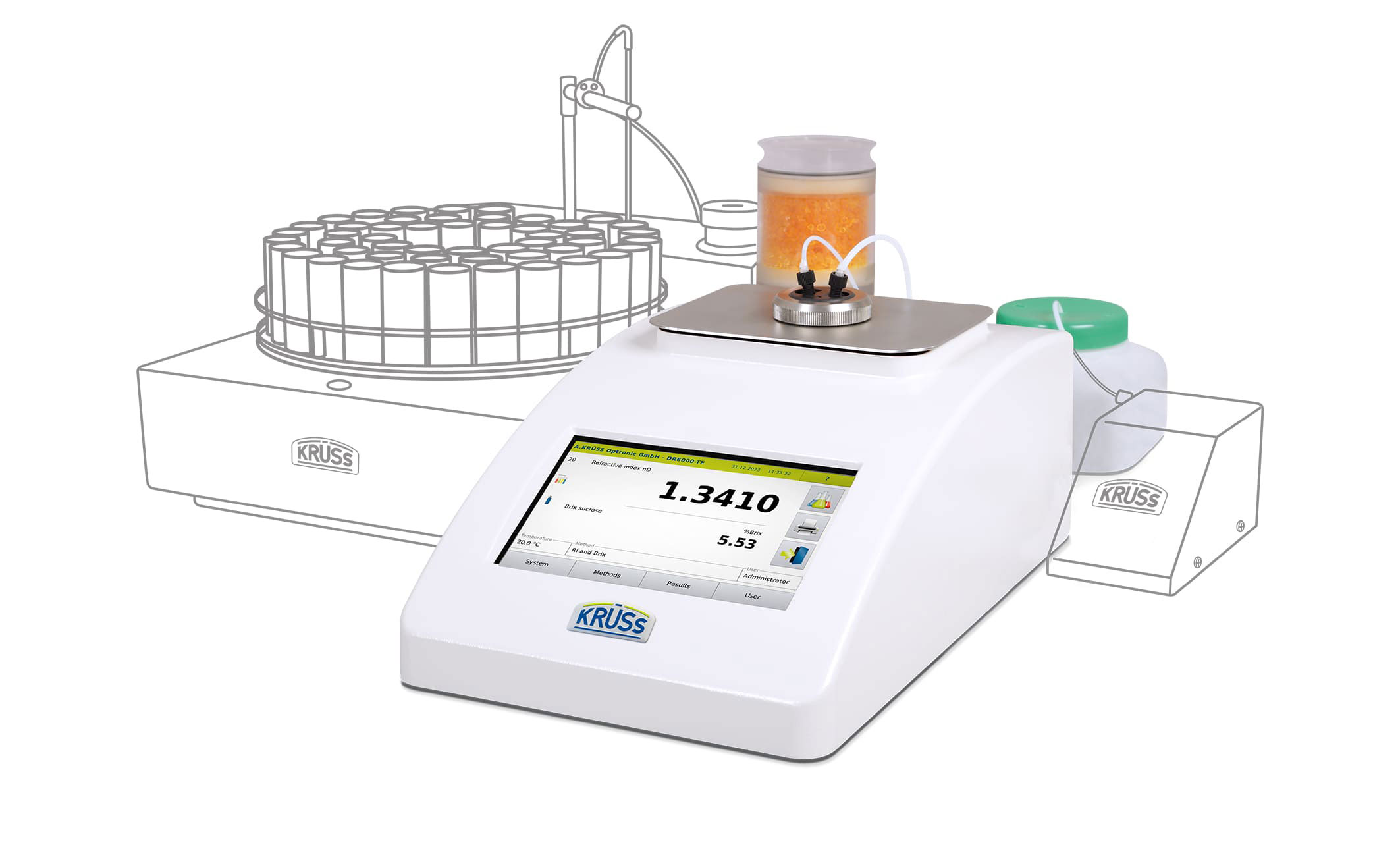

  Digital laboratory refractometers DR6000-TF fully automatic

  In addition to the Peltier element, the DR6000-TF models have a flow-through cell which, in conjunction with the drying unit, peristaltic pump and autosampler, enables fully automatic operation. The measured value is determined using a CCD sensor.

  These refractometers are the ideal solution for manufacturers of flavors, fragrances and essential oils, as well as for the pharmaceutical and beverage industries. They are ideal for routine analysis with high sample volumes, quality and purity control of raw materials and end products, or determination of sugar concentration in juices and soft drinks.

  Technical data Refractometer DR6000 series
  	DR6000-TF	DR6100-TF	DR6200-TF	DR6300-TF
  SCALES	Refractive index (nD) Concentration of sucrose, glucose, fructose and invert sugar (%Brix) User-defined (unlimited)
  MEASUREMENT RANGE	nD 1.3200-1.5800 0-95 %Brix	nD 1.3200-1.7000 0-95 %Brix	nD 1.32000-1.58000 0-95 %Brix	nD 1.32000-1.70000 0-95 %Brix
  MEASUREMENT ACCURACY 1)	nD ±0.0001 ±0.1 %Brix		nD ±0.00002 ±0.02 %Brix
  RESOLUTION	nD 0.0001 0.1 %Brix		nD 0.00001 0.01 %Brix
  MEASUREMENT PERIOD 3)	approx. 4 seconds
  MEASUREMENT PRISM	Sapphire
  LIGHT SOURCE	LED 589 nm
  SAMPLE VOLUME/FILLING QUANTITY	0.5 ml
  COMPONENTS IN CONTACT WITH THE SAMPLE	Sapphire, PTFE and stainless steel
  Operation & Device data
  OPERATION	Stand-alone device (incl. firmware): 7.0 inch capacitive touchscreen, 800 x 480 pixels ; Operation also possible with PC keyboard, mouse, barcode scanner (several languages)
  DATA INTEGRITY	Firmware, data recording and storage are compliant with the requirements of 21 CFR Part 11 and EU GMP Annex 11 Conformity with GMP/GLP, pharmacopoeias (USP, BP, JP, Ph. Eur.), FDA, ISO, HACCP, OIML, ASTM, ICUMSA, NIST
  ELECTRONIC INTERFACE	1x USB, 1x RS-232, 1x ethernet, LIMS Simple integration into networks (DHCP client) or LIMS
  ADJUSTMENT	Easy-to-understand, menu-guided adjustment. Certified, traceable calibration standards available as consumables
  Temperature data
  TEMPERATURE MEASUREMENT	Integrated Peltier sample temperature control system
  TEMPERATURE MEASUREMENT RANGE 2)	10-80 °C
  TEMPERATURE MEASUREMENT ACCURACY	±0,1 °C
  TEMPERATURE COMPENSATION	Activatable (ICUMSA or freely definable)
  TEMPERATURE MEASUREMENT	With integrated temperature sensor Pt100
  TEMPERATURE MEASUREMENT RANGE	10-80 °C
  TEMPERATURE MEASUREMENT ACCURACY	±0,1 °C
  TEMPERATURE MEASUREMENT RESOLUTION	0,1 °C
  Devices basic data
  HOUSING	Aluminum, powder-coated; protection class: IP20
  DIMENSIONS (W x H x D)	215 mm x 150 mm x 345 mm
  WEIGHT	5 kg
  OPERATING VOLTAGE	90-240 V
  POWER CONSUMPTION (measurement mode)	40 W
  RATED FREQUENCY	47-63 Hz

  ¹) Under normal conditions for measurement refractive index (λ = 589 nm, 20 °C, 1013 hPa, 50 % relative humidity)

  ²) For non-condensing ambient conditions

  ³) After temperature equalization

•

  KRÜSS DR7000 Series

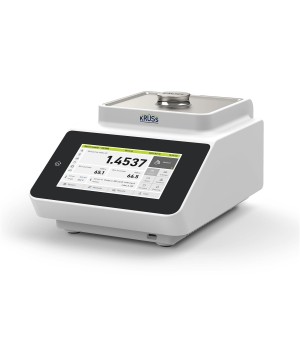

  Digital laboratory refractometers KRÜSS DR7000-Series

  The DR7000 series devices are digital refractometers designed for measuring refractive index, %Brix or other concentrations in liquid samples. With an optical CCD sensor, Peltiertemperature control, measurement electronics, evaluation electronics and touch display, the devices contain all the components needed to carry out measurements reliably. The Operation is located directly on the device. A separate PC with software is not necessary.

  The devices and their firmware meet all requirements for FDA-regulated areas (depending on the model), as well as for the European (Ph. Eur.) and American (USP) pharmacopoeia. The DR7200-P and DR7400-P models meet the requirements of CFR 21 Part 11.

  The refractometer models of the DR7000 series in comparison
  Specification	DR7100-P model	DR7200-P model	DR7300-P model	DR7400-P model
  MEASUREMENT RANGE	nD 1.3000 – 1.5800 0-95 %Brix	nD1.3000 – 1.5800 0-95 %Brix	nD 1.30000 – 1.72000 0-95 %Brix	nD 1.30000 – 1.72000 0-95 %Brix
  MEASUREMENT ACCURACY 1)	nD ±0.0001 ±0.1 %Brix		nD ±0.00002 ±0.02 %Brix
  RESOLUTION	nD 0.0001 0.1 %Brix		nD 0.00001 0.01 %Brix
  SCALES	Refractive index, %Brix sucrose, many other scales available on request as well as individually adjustable scales
  TEMPERATURE CONTROL RANGE	10°-60°C		10°-80°C
  TEMPERATURE CONTROL	Precise Peltier temperature control and a measured value preview which is updated every second
  METHODS	>1000	>1000	>1000	>1000
  MEASURED DATA STORAGE	>1 000 000	>1 000 000	>1 000 000	>1 000 000
  AUDIT TRAIL FUNCTIONALITY	None	Completely available	None	Completely available
  CONFORMITY WITH STANDARDS/DIRECTIVES	– – – – – – – – – –	CFR 21 Part 11	– – – – – – – – – –	CFR 21 Part 11
  	Pharmacopoeias (EU / USP / JP / BP); ASTM / DIM / ICUMSA / NIST / OIML; GAMP / GMP
  USER ACCOUNTS	More than 10,000 user accounts; for correct, clear identification, each user account has a unique login consisting of a combination of name and login information
  KRÜSS ASSISTANCE SYSTEMS (measurement reliability)	TempGate: The set sample temperature control is continuously monitored by the TempGate functionality. With LED ring around the sample well, signaling readiness for measurement
  	Measurement stability check (MSC): Measured value stability is checked during the ongoing measurement. Only measured values with set stability criteria are saved
  	Dynamic Temperature Control – DTC: option for individual accuracy of temperature control. This allows temperature control and measurement period to be specifically adapted to samples
  DATA EXPORT	Export as print via network/printer or to USB stick OR to several password-protected network folders (PDF format; A format; CSV format)
