HEINE HRP Loupes

High-Resolution Prismatic Binocular Loupes for Maximum Magnification

The HEINE HRP High Resolution Prismatic Binocular Loupes are designed for medical professionals who require significantly higher magnification for demanding precision work. With 3.5x, 4x and 6x magnification, the HRP series represents HEINE’s high-magnification range of professional binocular loupes.

High-resolution achromatic optics provide a crisp, bright image across the field of view, while the lightweight optical system and individually adjustable optics support precise stereoscopic viewing during longer procedures.

HEINE HRP High Resolution Prismatic Optics

Higher magnification for demanding medical precision work

HEINE HRP loupes use prismatic optics to achieve substantially higher magnification than conventional HR 2.5x loupes.

The series is available in three configurations:

These specifications show an important principle when choosing medical loupes: as magnification increases, the visible field and depth of field become smaller.

HEINE HRP 3.5x

High magnification with a comparatively generous field of view

The HEINE HRP 3.5x combines 3.5x magnification with a 420 mm working distance.

With a field of view of approximately 65 mm and a depth of field of approximately 60 mm, it offers the widest viewing area within the HRP range.

This makes HRP 3.5x particularly interesting for professionals who need considerably more magnification than HR 2.5x while still wanting a relatively generous overview of the working area.

HEINE HRP 4x

Strong magnification for detailed precision work

The HEINE HRP 4x provides 4x magnification at a 340 mm working distance.

Its field of view is approximately 50 mm, with a depth of field of approximately 40 mm.

The 4x configuration represents an interesting balance for applications requiring strong magnification without moving directly to the maximum 6x magnification.

HEINE HRP 6x

Maximum HEINE HRP magnification

The HEINE HRP 6x provides the highest magnification within the HRP series.

At a 340 mm working distance, it offers a field of view of approximately 40 mm and a depth of field of approximately 30 mm.

The HRP 6x is therefore intended for particularly demanding precision applications where the visualisation of very small structures takes priority over a large field of view.

High-Resolution Achromatic Optics

Crisp images across the field of view

The optical quality is one of the key characteristics of the HEINE HRP system.

HEINE specifies multi-coated achromatic optics designed to provide crisp, bright images across the field of view. The HRP optics weigh approximately 85 g and are water-resistant.

The left and right optics can also be adjusted independently to achieve precise adaptation to the user’s pupillary distance.

HEINE i-View Loupe Mount

Individually adjustable viewing angle

The HRP optics are mounted using the HEINE i-View loupe mount.

The i-View system allows the viewing angle to be adjusted to the individual working position. The optics can also be flipped up independently of an optional LoupeLight2.

This is particularly useful when switching between magnified and unaided vision during a procedure.

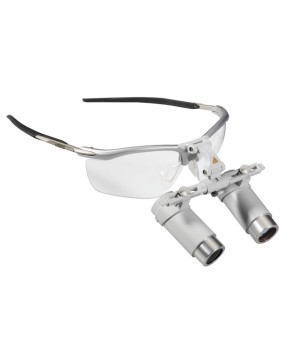

HEINE HRP with S-FRAME

Lightweight spectacle-frame configuration

The HEINE S-FRAME provides a lightweight mounting option for HRP binocular loupes.

The frame uses an ergonomic design with adjustable temples and nose pads. HEINE specifies a frame weight of approximately 24 g and uses polycarbonate protective lenses. An optional clip-in correction frame is available for prescription lenses.

This configuration is particularly suitable for users who prefer the freedom and low weight of a spectacle-mounted loupe system.

HEINE HRP with Professional L Headband

Stable support for longer procedures

As an alternative to the S-FRAME, HEINE HRP optics are available with the Professional L Headband.

HEINE offers configurations both with and without S-GUARD splash protection. The headband can be adjusted in height and width, while the version with S-GUARD provides additional splash protection.

The Professional L Headband without S-GUARD is also particularly suitable for users who wish to wear their own prescription spectacles underneath.

HEINE HRP for Surgery

High magnification for fine anatomical structures

The HRP series is particularly interesting for medical procedures where fine structures must be visualised with greater detail.

Depending on the procedure, the practitioner can choose between:

• 3.5x for higher magnification with a comparatively generous field;
• 4x for stronger detail magnification;
• 6x for maximum magnification of very small structures.

For surgical applications, the correct magnification should always be considered together with working distance, field of view and depth of field.

HEINE HRP for Dentistry

Detailed visualisation for demanding dental procedures

In dentistry, higher magnification can be particularly valuable when working on small structures and confined treatment areas.

The different HRP magnifications allow the optical system to be selected according to the required level of detail.

For users who wear binocular loupes for extended periods, the choice of mounting system and ergonomic adjustment is particularly important.

HEINE HRP for ENT

Magnification for small and difficult-to-access areas

In ENT, HRP binocular loupes can support detailed visualisation when examining or treating small anatomical structures.

The loupes can also be combined with compatible HEINE illumination systems, allowing magnification and targeted lighting to be directed towards the same working area.

HEINE HRP with LED Illumination

Combine high magnification with targeted light

HEINE confirms that HRP binocular loupes can be combined with its professional illumination systems, including the ML4 LED HeadLight and compatible loupe-mounted lighting solutions.

This allows the user to combine high optical magnification with illumination directed along the line of sight.

Depending on the configuration, HRP systems can be combined with:

• HEINE ML4 LED;
• HEINE LoupeLight2;
• HEINE MicroLight2.

HEINE HRP with LoupeLight2

Compact illumination for high-magnification loupes

The HEINE LoupeLight2 can also be used with compatible HRP configurations.

This is particularly relevant for users who want a compact illumination system positioned directly with the binocular optics. The i-View mechanism allows the HRP optics to be flipped up independently of the optional LoupeLight2.

HEINE HRP with ML4 LED HeadLight

Powerful illumination for demanding applications

All HEINE HR and HRP binocular loupes can be mounted with the HEINE ML4 LED HeadLight, according to HEINE.

The combination is particularly attractive for demanding procedures requiring both strong magnification and professional illumination.

HR 2.5x or HRP – Which HEINE Loupes Should You Choose?

The main difference is the level of magnification.

HEINE HR 2.5x is designed for versatile applications where a wide overview and moderate magnification are important.

HEINE HRP moves into significantly higher magnification with 3.5x, 4x and 6x options. This makes HRP particularly suitable when fine structures and small details need to be visualised more precisely. HEINE itself recommends choosing the lowest magnification that meets the requirements, because lower magnification provides a larger field of view and is generally easier to use.

Which HEINE HRP Magnification Should You Choose?

The HRP 3.5x / 420 mm is the most versatile HRP configuration when higher magnification is required while maintaining the largest field of view within the series.

The HRP 4x / 340 mm offers stronger magnification and is suited to applications where finer detail becomes increasingly important.

The HRP 6x / 340 mm provides maximum magnification and is therefore intended for highly detailed precision work where a smaller field and depth of field are acceptable.

Frequently Asked Questions about HEINE HRP Binocular Loupes

What magnifications are available for HEINE HRP?

HEINE HRP binocular loupes are available with 3.5x, 4x and 6x magnification.

What working distances are available?

The standard configurations are HRP 3.5x with 420 mm and HRP 4x and 6x with 340 mm working distance.

What is the difference between HR and HRP?

HR provides 2.5x magnification and is designed as a versatile high-resolution loupe. HRP uses prismatic optics and offers substantially higher magnifications of 3.5x, 4x and 6x.

Can HEINE HRP loupes be worn on a spectacle frame?

Yes. HRP optics are available with the lightweight HEINE S-FRAME.

Are HEINE HRP loupes available with a headband?

Yes. HEINE offers the Professional L Headband, including configurations with S-GUARD splash protection.

Can HEINE HRP be combined with ML4 LED?

Yes. HEINE states that its HR and HRP binocular loupes can be mounted with the ML4 LED HeadLight.

Can HEINE HRP be combined with LoupeLight2?

Yes. HEINE documents HRP use with the optional LoupeLight2, including independent flip-up functionality through the i-View mount.

Buy HEINE HRP Binocular Loupes at V-MEDTECH

Discover HEINE HRP High Resolution Prismatic Binocular Loupes for demanding medical, surgical and dental precision applications.

Choose between HRP 3.5x, HRP 4x and HRP 6x, with S-FRAME or Professional L Headband configurations and compatible professional HEINE LED illumination.

For users who require greater magnification than conventional 2.5x medical loupes, the HEINE HRP series provides a professional high-magnification solution with high-resolution prismatic optics and flexible mounting options.
