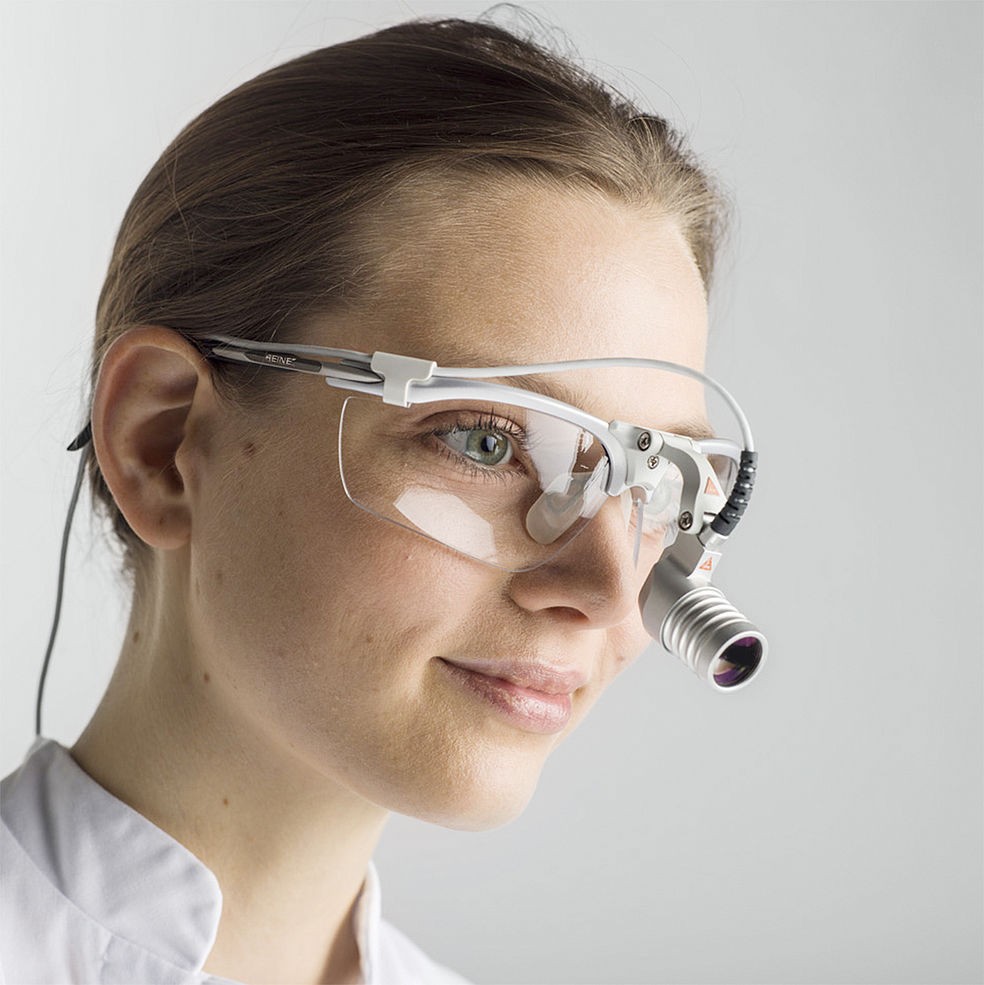

HEINE MicroLight2

Ultralight LED Headlight for Medical Examinations and Precision Work

The HEINE MicroLight2 is a compact professional medical headlight designed for users who need bright, homogeneous and shadow-free illumination without magnification. HEINE positions the MicroLight2 as the lightweight, universal alternative within its professional headlight range.

With LED HQ illumination, up to approximately 55,000 lux, a typical colour temperature of 4,000 K and continuously adjustable brightness, the MicroLight2 is designed for examinations and procedures where precise illumination of the working area is essential.

HEINE LED HQ Illumination

Natural colours and homogeneous illumination

The MicroLight2 uses HEINE's LED HQ technology, developed to provide natural colour rendering and homogeneous illumination across the entire light field.

A precision optical system with four high-quality lenses creates an evenly illuminated field with a clearly defined light spot. This helps provide consistent visibility from the centre to the edge of the illuminated area.

The MicroLight2 is now 25% brighter than its predecessor, according to HEINE.

Shadow-Free Coaxial Illumination

Light exactly where you are looking

An important advantage of the MicroLight2 is its coaxial illumination.

The light source is positioned close to the user's visual axis. This helps reduce shadows and provides effective illumination of areas that can be difficult to see with conventional room or examination lighting.

This makes the MicroLight2 particularly useful for examinations where the practitioner needs direct illumination while keeping both hands free.

Up to 55,000 Lux

Powerful illumination from a compact headlight

Despite its compact dimensions, the MicroLight2 provides a typical illumination intensity of approximately 55,000 lux, measured at a working distance of 180 mm.

The typical colour temperature is approximately 4,000 K, providing a neutral, natural-looking illumination suitable for medical examinations.

Technical illumination data

*According to HEINE specifications; illumination values are measured at a working distance of 180 mm.

Lightweight Design for Comfortable Working

Only 80 g with S-FRAME

One of the major strengths of the HEINE MicroLight2 is its low weight.

With the HEINE S-FRAME, the complete system weighs approximately 80 g. With the Lightweight Headband, the weight is approximately 190 g.

This makes the MicroLight2 particularly interesting for professionals who wear a headlight regularly or for extended examination periods.

Two Wearing Options

S-FRAME or Lightweight Headband

HEINE offers the MicroLight2 with two different carrying systems:

HEINE MicroLight2 on S-FRAME

The S-FRAME provides a lightweight spectacle-style solution. Its temples and nose pad can be adjusted to the user, while polycarbonate protective lenses provide additional eye protection.

HEINE MicroLight2 on Lightweight Headband

The Lightweight Headband provides an alternative for users who prefer a head-worn system. HEINE specifically identifies this configuration as suitable for spectacle wearers. The headband can be adjusted to the user's head size.

HEINE MicroLight2 with mPack mini

Compact mobile power supply

The MicroLight2 is powered by the HEINE mPack mini.

HEINE specifies a typical operating time of approximately 9 hours, depending on the selected brightness. At continuous operation at full power, the typical operating time is approximately 4 hours.

The compact mPack mini can be worn using a belt clip, allowing the headlight itself to remain particularly lightweight.

Replaceable Connecting Cord

Designed for intensive professional use

The MicroLight2 uses a replaceable connecting cord between the headlight and the mPack mini.

HEINE equips the connection with a high-quality splash-protected threaded connector. The cable has a length of 1.5 metres.

The advantage is important for long-term professional use: the connecting cable is a replaceable component rather than a permanently integrated part of the headlight.

Aluminium Housing

Lightweight, durable and designed for thermal management

The MicroLight2 features a full aluminium housing.

According to HEINE, the housing protects the optical system against dust and moisture while also supporting effective thermal management.

This combination of low weight and durable construction is one of the key differences between the MicroLight2 and simpler examination headlights.

Continuously Adjustable Angle

Position the illumination according to the examination

The angle of declination can be continuously adjusted.

This allows the light beam to be aligned with the individual working position and examination area rather than forcing the practitioner to adapt their posture to a fixed illumination angle.

Optional Yellow Filter

Particularly useful for dental applications

An optional detachable yellow filter is available for the MicroLight2.

For dental applications, HEINE explains that a yellow filter can help prevent the premature curing of composite materials caused by the examination light.

This makes the MicroLight2 particularly interesting not only for general medical examinations but also for dental applications.

HEINE MicroLight2 or ML4 LED HeadLight?

Two different professional headlight concepts

HEINE positions both models as premium medical headlights, but they serve different requirements.

The positioning is therefore clear:

MicroLight2 = ultralight and versatile headlight for illumination without magnification

ML4 LED = more powerful professional headlight for demanding procedures and integration with HR / HRP binocular loupes

MicroLight2 or LoupeLight2?

Without magnification or with binocular loupes?

The names are similar, but the products serve different purposes.

The HEINE MicroLight2 is a headlight without magnification.

The HEINE LoupeLight2 combines professional illumination with compatible HEINE binocular loupe configurations. HEINE lists the MicroLight2 under “Headlights”, while LoupeLight2 belongs to “Loupes and Lights”.

For the shop structure, this distinction is important:

MicroLight2 → Medical Headlights

LoupeLight2 → Loupes with Headlight Kits

This avoids unnecessary overlap between the two categories.

HEINE MicroLight2 Sets

Complete configurations for professional use

HEINE currently offers two principal configurations:

MicroLight2 Set – S-FRAME + mPack mini

and

MicroLight2 Set – Lightweight Headband + mPack mini

The sets include the corresponding carrying system, mPack mini power source and additional system components.

Accessories for HEINE MicroLight2

Depending on the configuration, accessories include the mPack mini, belt clip, replacement connecting cords, detachable yellow filter and carrying/storage solutions.

This modular approach is particularly useful for professional users who want to replace individual components rather than the complete system.

Frequently Asked Questions about HEINE MicroLight2

Does the HEINE MicroLight2 provide magnification?

No. The MicroLight2 is a medical headlight without magnification. Users requiring integrated binocular magnification should consider HEINE LoupeLight2 or an ML4 LED configuration with HR / HRP optics.

How bright is the HEINE MicroLight2?

HEINE specifies a typical light intensity of approximately 55,000 lux, measured at 180 mm working distance.

What is the colour temperature?

The typical colour temperature is approximately 4,000 K.

Can the brightness be adjusted?

Yes. HEINE specifies 0–100% brightness control for the MicroLight2.

How long does the battery last?

With the mPack mini, HEINE specifies a typical operating time of approximately 9 hours. At continuous full-power operation, the typical operating time is around 4 hours.

Can the MicroLight2 be worn with glasses?

Yes. The Lightweight Headband is particularly suitable for spectacle wearers. Alternatively, the MicroLight2 is available on the HEINE S-FRAME.

Is a yellow filter available?

Yes. An optional detachable yellow filter is available, particularly useful for dental applications involving composite materials.

Buy HEINE MicroLight2 at V-MEDTECH

The HEINE MicroLight2 is an excellent choice for medical professionals looking for a lightweight, high-quality headlight without integrated magnification.

With LED HQ illumination, approximately 55,000 lux, 4,000 K colour temperature, continuously adjustable brightness and a choice between S-FRAME and Lightweight Headband, the MicroLight2 combines professional illumination with exceptionally low weight.
