HEINE K180 LED Ophthalmoscope

Professional direct ophthalmoscope with excellent value for money

The HEINE K180 LED is a professional direct ophthalmoscope for physicians, medical practices, clinics and healthcare facilities looking for reliable HEINE quality at an attractive price.

Within the HEINE range, the K180 LED has a clear position: it offers the essential features required for professional routine examinations while remaining more economical than the more sophisticated BETA series.

The combination of spherical precision optics, HEINE LEDHQ illumination, 27 dioptre steps, five apertures and a robust polycarbonate housing makes the K180 LED particularly attractive for everyday medical diagnostics.

What makes the HEINE K180 LED stand out?

The K180 LED focuses on the features that matter in daily professional use:

low-reflection spherical precision optics;
bright HEINE LEDHQ illumination;
suitable for dilated and undilated pupils;
refractive error compensation from –35 to +40 D;
27 dioptre steps;
five apertures with two aperture wheel options;
robust, dust-resistant polycarbonate housing;
flexible power supply options;
5-year HEINE guarantee.

The result is a deliberately functional professional ophthalmoscope without the more complex optical system of the premium BETA models.

Spherical precision optics

Low-reflection viewing for reliable fundus examination

The HEINE K180 LED uses spherical precision optics designed to provide a clear, low-reflection view of the fundus.

The shape of the instrument head also helps shield the examiner from distracting ambient light during examination.

This supports reliable observation of central fundus structures during direct ophthalmoscopy and makes the K180 LED particularly suitable for routine examinations in everyday clinical practice.

HEINE LEDHQ illumination

Bright, uniform light for a clear view of the fundus

The current K180 is equipped with HEINE LEDHQ technology.

The illumination is designed to provide bright and uniform lighting of the examination area while supporting natural colour rendering.

This is important because the quality of an ophthalmoscope depends not simply on producing as much light as possible. The interaction between illumination and optics is essential for a clear and clinically useful view.

The K180 LED can be used for examinations with both dilated and undilated pupils.

Refractive error compensation from –35 to +40 dioptres

The HEINE K180 LED provides an extensive range of refractive error compensation.

Its lens wheel offers 27 dioptre steps within a range from –35 to +40 D.

This enables the examiner to adapt the focus to different refractive conditions and provides the adjustment range required for a wide variety of routine examinations.

K180 LED compared with the BETA 200S LED

The different positioning of the two instruments becomes particularly clear when comparing their refractive error compensation.

HEINE K180 LED

27 dioptre steps from –35 to +40 D

HEINE BETA 200S LED

74 one-dioptre steps from –36 to +38 D

The K180 LED therefore provides a broad adjustment range for professional routine examinations.

The BETA 200S LED is aimed at users who require significantly finer refractive error compensation and additional capabilities for more demanding examination situations.

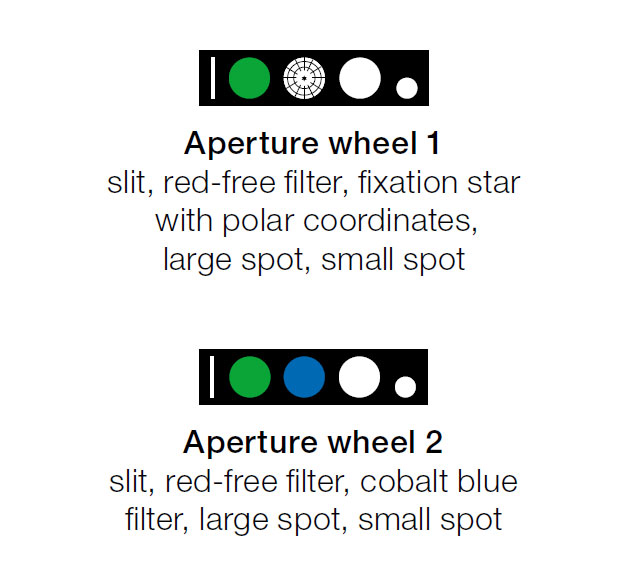

5 apertures with two aperture wheel options

An interesting feature of the HEINE K180 LED is the availability of two different aperture wheel configurations.

Both versions provide five apertures.

Aperture wheel 1

slit;
red-free filter;
fixation star with polar coordinates;
large circle;
medium circle.

Aperture wheel 2

slit;
red-free filter;
blue filter;
large circle;
medium circle.

This allows users to select the configuration that best suits their intended examinations.

Aperture wheel 1 or aperture wheel 2?

The main difference is the choice between a fixation star and blue filter.

Aperture wheel 1 with fixation star

This configuration is suitable when a fixation star is required for the intended examinations.

Aperture wheel 2 with blue filter

This version replaces the fixation star with a blue filter, extending the possibilities for appropriate ophthalmic examinations.

The slit, red-free filter, large circle and medium circle are available in both configurations.

HEINE K180 LED or BETA 200 LED?

This is an important distinction when choosing between HEINE direct ophthalmoscopes.

Both are professional instruments, but they follow different optical concepts.

HEINE K180 LED

The professional standard instrument for value-conscious users.

spherical precision optics;
LEDHQ illumination;
27 dioptre steps;
–35 to +40 D;
5 apertures;
robust polycarbonate housing;
attractive price-performance ratio.

HEINE BETA 200 LED

The higher-level solution for more demanding professional diagnostics.

One of the key differences is the optical system. The BETA 200 LED uses the more sophisticated HEINE Aspherical Optical System (AOS), whereas the K180 LED uses spherical precision optics.

This does not make the K180 LED a basic consumer instrument.

Instead, it is the more economical solution for professionals who want a reliable HEINE ophthalmoscope for regular routine examinations without requiring the additional optical capabilities of the BETA series.

HEINE K180 LED or mini 3000 LED?

These two instruments also have different strengths.

K180 LED

The focus is on a full-size professional ophthalmoscope with a conventional instrument head, extensive refractive error compensation and compatibility with different HEINE handle and power supply systems.

mini 3000 LED

The emphasis is primarily on compact dimensions and mobility.

The K180 LED is therefore particularly attractive for medical practices and fixed diagnostic workstations.

For users who prioritise a particularly compact instrument for a coat pocket, home visits or mobile diagnostics, the mini 3000 LED offers a different concept.

Robust design for everyday medical use

Durable polycarbonate housing

The K180 LED features a robust polycarbonate housing.

This is one of the differences compared with the more elaborate construction of the premium BETA instruments, but it is also an important part of the K180 concept: professional functionality combined with economical construction.

The housing is designed to be robust and dust resistant, making the instrument suitable for regular use in medical environments.

With an instrument head weighing approximately 45 g and measuring around 90 × 46 × 28 mm, the K180 LED also remains pleasantly lightweight.

Flexible power supply options

The HEINE K180 LED is available in 2.5 V and 3.5 V versions.

Depending on the version and configuration, it can be combined with different HEINE power supply solutions, including:

battery handles;
rechargeable handles;
USB charging solutions;
desktop charging systems;
compatible HEINE wall transformer systems.

This makes the K180 LED suitable for both fixed diagnostic workstations and more flexible mobile applications.

Ideal for existing HEINE systems

For medical practices and hospitals already using HEINE diagnostic instruments, system compatibility can be an important advantage.

Depending on the version, the K180 LED can be integrated into compatible existing HEINE handle and power supply systems.

This means that purchasing an entirely new diagnostic set may not always be necessary.

Complete K180 diagnostic sets combining an ophthalmoscope and otoscope are also available, making it possible to create a coordinated diagnostic system.

Who is the HEINE K180 LED designed for?

The K180 LED is particularly suitable for:

general practitioners;
medical practices;
internal medicine;
paediatrics;
neurology;
emergency medicine;
hospitals and clinics;
medical centres;
teaching and examination facilities.

Its strength lies wherever a reliable professional ophthalmoscope is required for regular examinations without the additional premium features of a BETA 200S or BETA X.

Particularly attractive for medical practices and clinics

The position of the K180 LED within the HEINE range can be summarised clearly:

Professional HEINE quality without the premium price level.

Users benefit from LEDHQ illumination, an extensive refractive range, five apertures, robust construction and compatibility with HEINE power supply systems.

Professionals who regularly perform more demanding ophthalmic examinations and require a more sophisticated optical system should consider the BETA series.

For routine direct ophthalmoscopy, however, the K180 LED offers a particularly attractive balance between functionality, quality and cost.

Technical highlights

Optics

HEINE spherical precision optics

Illumination

HEINE LEDHQ

Pupils

Suitable for dilated and undilated pupils

Refractive error compensation

–35 to +40 D

Dioptre settings

27 dioptre steps

Apertures

5 apertures – two aperture wheel configurations available

Housing

Robust, dust-resistant polycarbonate

Dimensions

Approx. 90 × 46 × 28 mm

Weight

Approx. 45 g

Versions

2.5 V and 3.5 V

Guarantee

5 years

Why choose the HEINE K180 LED?

Not every professional user needs the most technically sophisticated direct ophthalmoscope.

That is precisely where the K180 LED has its strength.

It combines:

HEINE precision optics + LEDHQ + –35 to +40 D + 5 apertures + robust construction + flexible power supply

in an instrument designed to offer an excellent balance between professional performance and acquisition cost.

For practices and healthcare facilities looking for dependable HEINE quality without moving into the premium BETA range, the K180 LED is a particularly convincing choice.

Frequently asked questions about the HEINE K180 LED

What is the HEINE K180 LED?

The HEINE K180 LED is a professional direct ophthalmoscope for examination of the fundus. It combines spherical precision optics with LEDHQ illumination, 27 dioptre steps and five apertures.

Is the K180 LED suitable for undilated pupils?

Yes. The K180 LED is designed for examinations with both dilated and undilated pupils.

What dioptre range does the K180 LED provide?

The instrument provides 27 dioptre steps within a range from –35 to +40 D.

How many apertures does the K180 LED have?

The K180 LED provides five apertures. Two aperture wheel configurations are available: one with a fixation star and another with a blue filter.

What is the difference between the K180 LED and BETA 200S LED?

The K180 LED uses spherical precision optics and provides 27 dioptre steps. The BETA 200S LED uses the more sophisticated aspherical optical system and offers 74 one-dioptre steps together with additional capabilities for examining particularly small pupils.

The K180 LED is therefore positioned primarily as a professional standard instrument with an attractive price-performance ratio.

Is the K180 LED an entry-level ophthalmoscope?

Within the HEINE range it is the more economical solution, but it is still a professional medical diagnostic instrument.

It is particularly suitable for users who need reliable HEINE quality for routine examinations without requiring the more sophisticated optical features of the BETA series.

Is the K180 LED available with rechargeable or battery handles?

Yes. Depending on the version and configuration, the K180 LED can be combined with rechargeable HEINE handles or replaceable battery systems.

How long is the HEINE guarantee?

The HEINE K180 LED comes with a 5-year guarantee.

HEINE K180 LED at V-MEDTECH

The HEINE K180 LED is a compelling choice for physicians, medical practices, clinics and healthcare facilities looking for a professional, robust and durable direct ophthalmoscope at an attractive price.

With spherical precision optics, LEDHQ illumination, 27 dioptre steps and five apertures, it provides the essential features required for a wide range of professional routine examinations.

Within the HEINE portfolio, the K180 LED occupies an important position between the particularly compact mini 3000 instruments and the more sophisticated BETA ophthalmoscopes.
