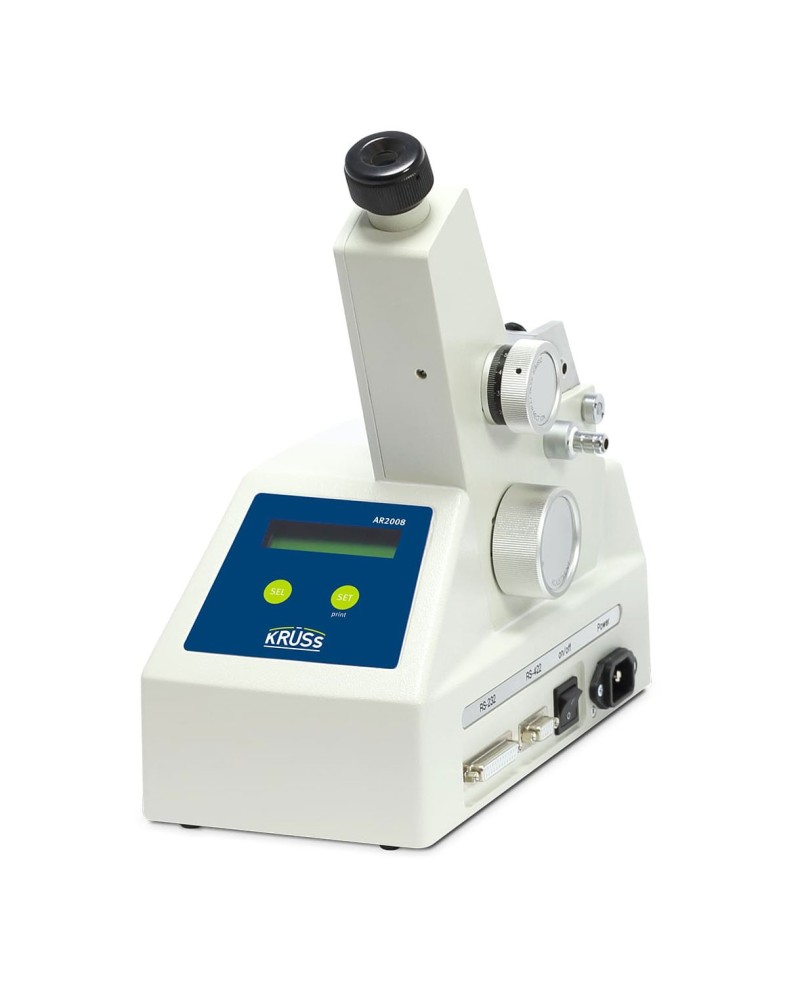

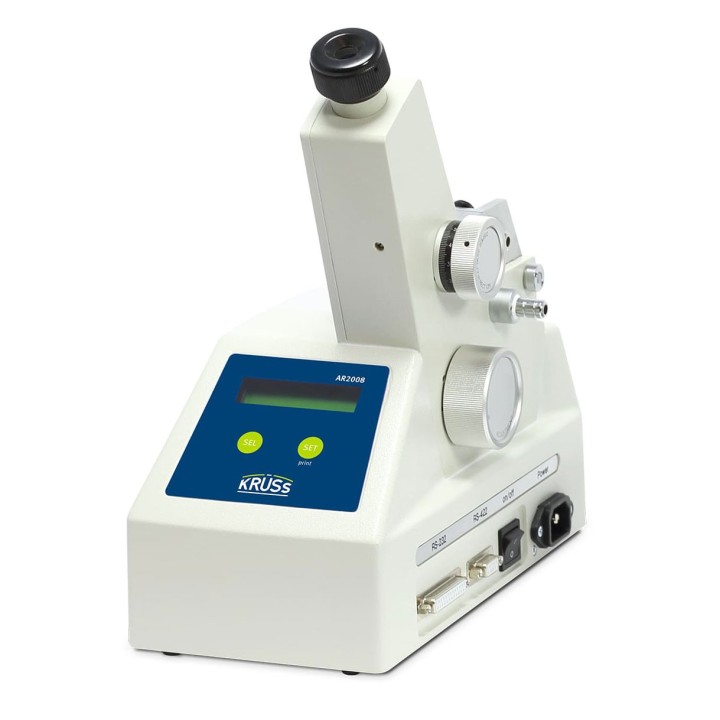

Digital Abbe refractometer KRÜSS AR2008

Name: Digital Abbe refractometer KRÜSS AR2008
Brand: KRÜSS
SKU: AR2008
Price: 4695 EUR
Availability: InStock

KRÜSS

€4,695.00

Tax excluded

KRÜSS AR2008 is an Abbe refractometer in which the sample is placed between a measuring and illumination prism. The device can measure the refractive index or Brix value and display the measured value together with the temperature on the LCD display. Using the serial interface, the measured values, date and time can be transferred directly to a PC or printed. These devices can be used in a wide range of applications: e.g. in the chemical, petrochemical, oil and grease industries, the food industry, in the pharmaceutical environment and in research & education.

Measurement of liquid and viscous samples, regardless of their viscosity
Measurement of films possible and of solid samples that have at least one smooth side
Wide measurement range from nD 1.3000-1.7200 and 0-95 %Brix
Digital representation of the measurement data
Integrated thermometer
Hose connections for temperature control with a circulation thermostat
Automatic temperature compensation for the BRIX scale can be switched on as an option
Robust housing and easy handling
Serial interfaces RS-232, RS-422

The AR2008 determines the refractive index between nD 1.3000–1.7200 and the sugar content in the range of 0–95 %Brix of liquid, viscous as well as solid samples. The dry substance content in % and the dispersion value nF-nC can be calculated. The output of the measurement results is performed digitally. The refractive index of the Brix value is shown on the LCD display together with the temperature.

Typical applications KRÜSS AR2008

The Abbe refractometers have a wide range of applications in the chemical, petro- and food industry, in hospitals, pharmacies and research offices, as well as in research and teaching. The special feature is the possibility to measure not only liquid and viscous samples but also solids and foils. Main application fields are:]

Identity test, purity control and concentration determination of raw materials, semi-finished products and end products
Determination of the sugar concentration
Incoming and outgoing goods inspection
Purity control
Testing of food and pharmaceutical products
Testing of the compliance with national and international standards
Training

Technical data KRÜSS AR2008

Specification	Abbe refractometer AR2008 model
	Measurement range	nD 1.3000-1.7200 0-95 %Brix
	Temperature control range 1)	Retrofittable
Measurement accuracy 2)	nD ±0.0002 ±0.1 %Brix
Accuracy of temperature control 1)	Retrofittable
Resolution	nD 0.0001 0.1 %Brix
Wavelength	589 nm
Temperature measurement accuracy	±0.3 °C
Temperature measurement resolution	0,1 °C
Temperature control 1)	Retrofittable
Scales	Refractive index (nD), concentration of sucrose (%Brix)
Adjustment	About adjusting screw
Parts in contact with the sample	Optical Flint glass (SF4)
Additional features	Optional temperature compensation for %Brix according to ICUMSA
Operation	drive knob Selection keys
Interfaces	1 x RS-232, 1 x RS-422
Dimensions (W x H x D)	120 mm x 290 mm x 250 mm
Weight	5 kg
Operating voltage	115/230 V, switchable
Power consumption (max.)	40 W
