Abbe refractometer KRÜSS AR4

Name: Abbe refractometer KRÜSS AR4
Brand: KRÜSS
SKU: AR4
Price: 1034 EUR
Availability: InStock

€1,034.00

Tax excluded

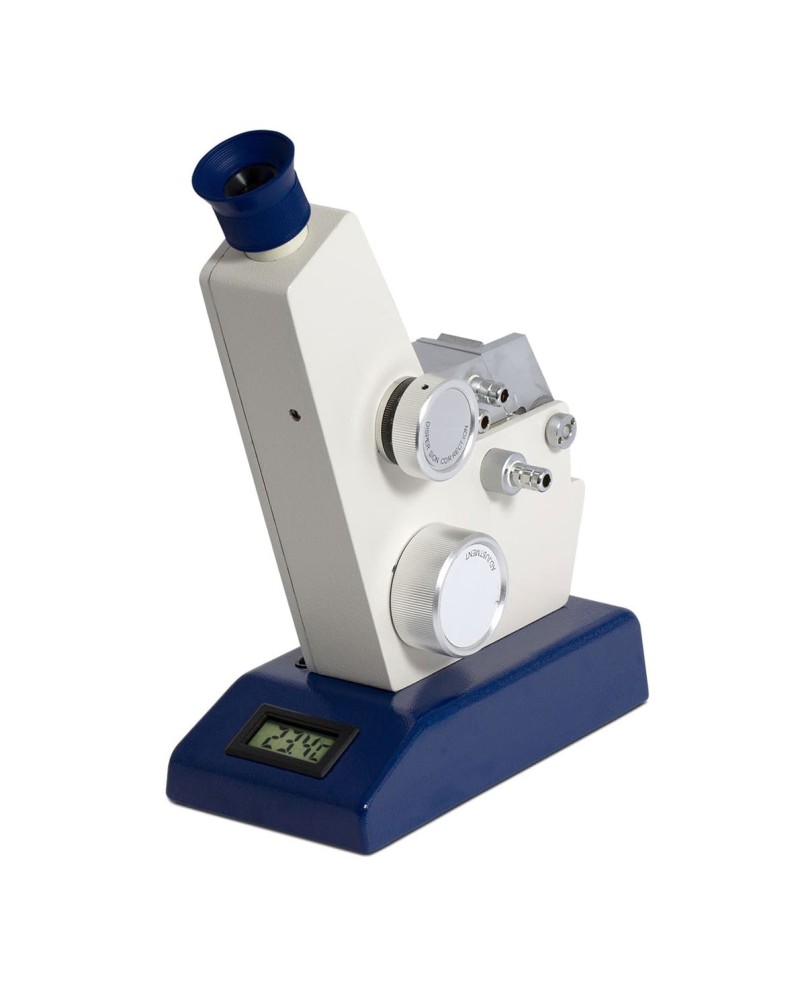

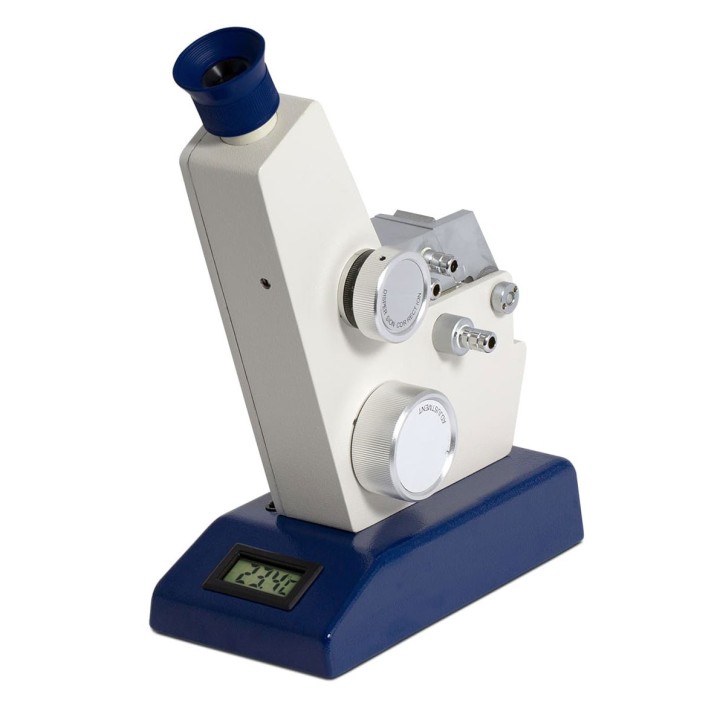

The KRÜSS AR4 is a classic Abbe refractometer. The scales can be set manually using the drive knob and the refractive index and Brix values are read off using an eyepiece. The temperature is measured with the integrated digital thermometer and displayed on the LCD. The AR4 refractometer can be connected to a circulation thermostat for temperature control. This device can be used in a wide range of applications: for identity checking, purity control and concentration determination of raw materials, semi-finished products and end products or for determining the sugar concentration as well as for incoming and outgoing goods inspection.

Measurement of liquid and viscous samples, regardless of their viscosity
Measurement of films possible and of solid samples that have at least one smooth side
Wide measurement range from nD 1.3000-1.7200 and 0-95 %Brix
Reading the measured values via an eyepiece
Integrated thermometer
Hose connections for temperature control with a circulation thermostat
Robust housing and easy handling
Temperature display on LED display

The Abbe refractometers have a wide range of applications in the chemical, petro-, oil- and fat industries, in the food industry, in hospitals, pharmacies and research offices, as well as in research and teaching. The special feature is the possibility to measure not only liquid and viscous samples but also solids and foils.

Main application fields are:

Identity test, purity control and concentration determination of raw materials, semi-finished products and end products
Determination of the sugar concentration
Incoming and outgoing goods inspection
Purity control
Testing of food and pharmaceutical products
Testing of the compliance with national and international standards
Training

Technical data KRÜSS AR4

Specification	Abbe refractometer AR4 model
	Measurement range	nD 1.3000-1.7200 0-95 %Brix
	Temperature control range 1)	Retrofittable
Measurement accuracy 2)	nD ±0.0002 ±0.1 %Brix
Accuracy of temperature control 1)	Retrofittable
Resolution	nD 0.0005 0.25 %Brix
Wavelength	589 nm
Temperature measurement accuracy	±0.5 °C
Temperature measurement resolution	0,1 °C
Temperature control 1)	Retrofittable
Scales	Refractive index (nD), concentration of sucrose (%Brix)
Adjustment	About adjusting screw
Parts in contact with the sample	Optical Flint glass (SF4)
Operation	drive knob
Interfaces	1 x RS-232, 1 x RS-422
Dimensions (W x H x D)	100 mm x 270 mm x 190 mm
Weight	2.5 kg
Operating voltage	7.5 V
Power consumption (max.)	15 W
