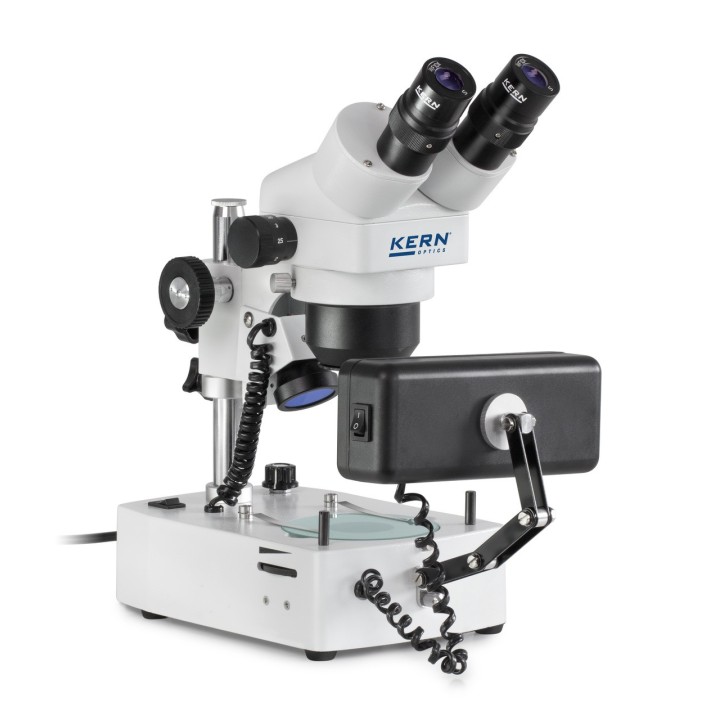

Gem microscope KERN OZG 493 for jewellers


Jewellery microscope KERN OZG 493

KERN & SOHN GmbH
OZG 493

The specialist for jewellers and the gem industry

Optical system Greenough
Tube type Binocular
Ocular magnifications 10 x
Ocular visual field 20 mm
Magnification ratio 5,1:1
Zoom [Min] 0,7 x
Zoom [Max] 3,6 x
Illuminance Reflected light, Transmitted light
Illumination type transmitted light Halogen
Illumination type incident light Halogen
Illumination intensity incident light 10 W
Focusing mechanism coarse drive
Working distance 86 mm
Stand type pillar
Dimension (W×D×H) 310×170×350 mm
Hurry! only 9 items left in stock.
€549.00
€610.00
Save 10%
Tax excluded
Quantity

Add to Compare
Add to Wishlist

  • The KERN OZG series has been specially developed for jewellers and mineral observations in the gem industry. Precious stones and gems can be checked and handled with this stereo zoom microscope
  • You have a choice of a strong halogen transmitted illumination unit as well as halogen reflected and transmitted illumination variants, each with an additional frontal illumination
  • As well as very good optical characteristics, these models form an ideal package with their dark field unit with object clamp which is included in the scope of delivery
  • The KERN OZG 493 is fitted with a pillar stand as well as an integrated bright halogen light unit with reflected and transmitted illumination
  • A protective dust cover, eye cups, as well as multi-lingual user instructions are included in the scope of delivery

Scope of application

  • Jewellers and gem industry

Applications/Samples

  • Samples with focus on three-dimesnional impression (depth, thickness), zoom for variable magnification, special stand for processing workpieces e.g. gems, components, precious stones

FEATURES

360° rotatable microscope head Binocular Microscope: For the inspection with both eyes Trinocular Microscope: For the inspection with both eyes and the additional option for the connection of a camera Halogen illumination: For pictures bright and rich in contrast Incident illumination: For non-transparent objects Transmitting illumination: For transparent objects Zoom magnification: For stereomicroscopes Mains part: mains part integrated in the balance. 230V/50Hz Standard type D, if requested also available in standard GB, AUS or USA. 3 years warranty

  • Tube: Binocular
  • Eyepiece: 10x Ø 20.0 mm
  • Field of view: Ø 28.0mm - 5.6 mm
  • Objective Zoom: 0,7x - 3,6x
  • Stand: Pillar style
  • Illumination: 12V 10W Halogen (transmitting), 12V 10W Halogen (reflecting)
: OZG 493
Hurry! only 9 items left in stock.

Data sheet

Illumination
12 V/10 W Halogen (incident)12 V/10 W Halogen (transmitted)10 W Fluorescence (front illumination)
Optical system
Greenough optics
Tube
Binocular
