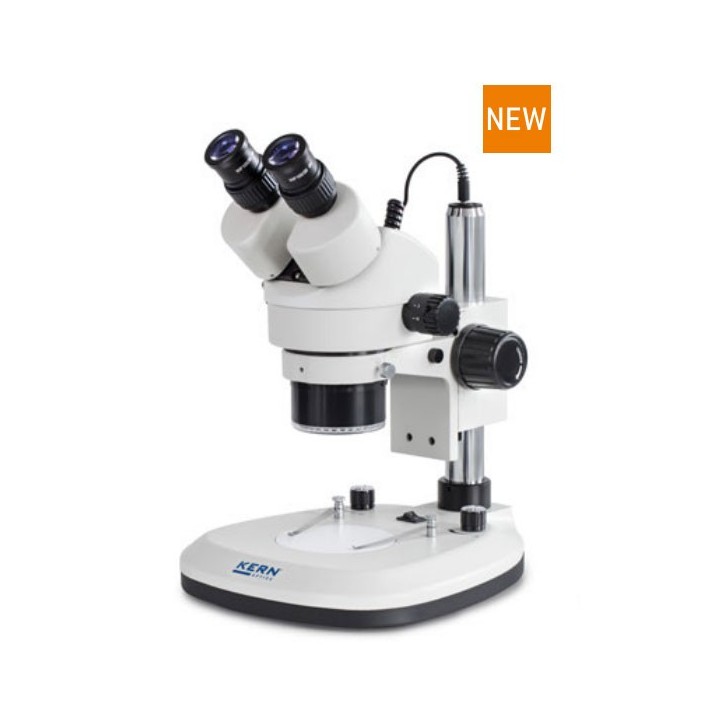

Stereo zoom microscope KERN OZL 466

    Stereo zoom microscope KERN OZL 466 ring illumination

    The flexible, affordable all-rounder with zoom function for schools, training companies, inspection authorities and laboratories

    360° rotatable microscope headBinocular Microscope: For the inspection with both eyes LED illumination: Cold, energy saving and especially long-life illuminationIncident illumination: For non-transparent objectsTransmitting illumination: For transparent objectsZoom magnification: For stereomicroscopesMains adapter: 230V/50Hz in standard version for Germany. On request GB or USA version. 3 years warranty

    Tax excluded
    1-3 days
    discover visa googlewallet paypal mastercard americanexpress
    • The products in the KERN OZL-46 series are stereo zoom microscopes, which will impress you with their quality, easy handling, flexibility as well as their stability and economical price
    • The LED reflected and transmitted illumination included as standard guarantees the very best illumination of your sample
    • The highlight of the OZL 465/OZL 466 is the strong, continuously dimmable, integrated LED ring illumination in the objective housing, which ensures uniform, shadow-free illumination. An LED transmitted light variant is also included
    • As well as excellent optical characteristics and their large working surface, these models offer the highest level of comfort in this class – ideal for training companies, workshops as well as assembly and repair workstations, e.g. in the electronics industry
    • The zoom objective offers you continuous magnification from 7×–45×
    • The KERN OZL-46 series is available as a binocular or trinocular version
    • The pillar stand offers you the highest level of flexibility and the freedom to remove the microscope head and to integrate it into other modular systems, for example into a universal stand
    • With its integrated handle as well as its stable arm curved stand, the KERN OZL 467/OZL 468 has been specially developed for schools and workshops
    • A large selection of eyepieces, external illumination units as well as auxiliary objectives are available as accessories
    • A protective dust cover, eye cups, as well as multi-lingual user instructions are included in the scope of delivery
    • A C-mount adapter is required to connect a camera to the trinocular version. You can select this adapter from the following model outfit list

    Scope of application

    • In vitro fertilisation, detection of parasites, zoology and botany, tissue preparation, section, quality control


    • Samples with focus on three-dimesnional impression, zoom with variable magnification (depth, thickness), e.g. insects, seeds, circuit boards, components

    Technical data

    • Optical system: Greenough optics
    • Brightness adjustable (separate)
    • Tube 45° inclined
    • Magnification ratio: 6,4:1
    • Light distribution 50:50
    • Interpupillary distance 55 – 75 mm
    • Diopter adjustment: Both-sided
    • Overall dimensions W×D×H 300×240×420 mm
    • Net weight approx. 4 kg
    OZL 466

    Data sheet

    Power Source
    100 - 240 V
    3 W LED (incident); 3 W LED (transmitted) with ring illumination
    Optical system
    Greenough optics
    0,7× – 4,5×
