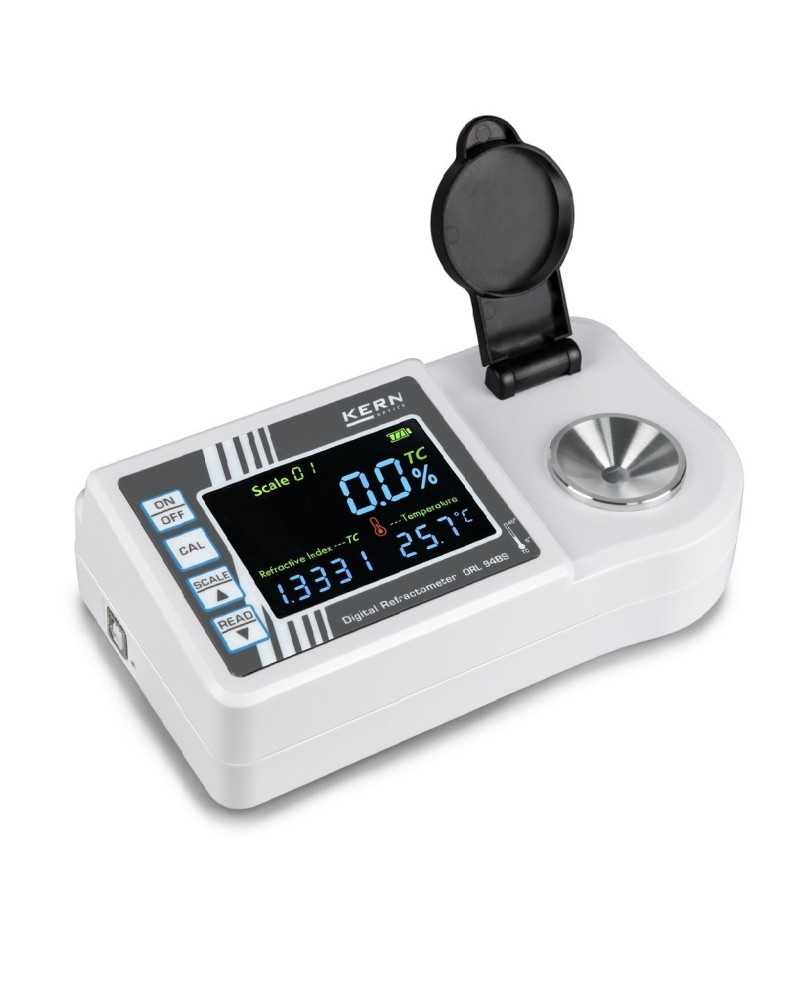

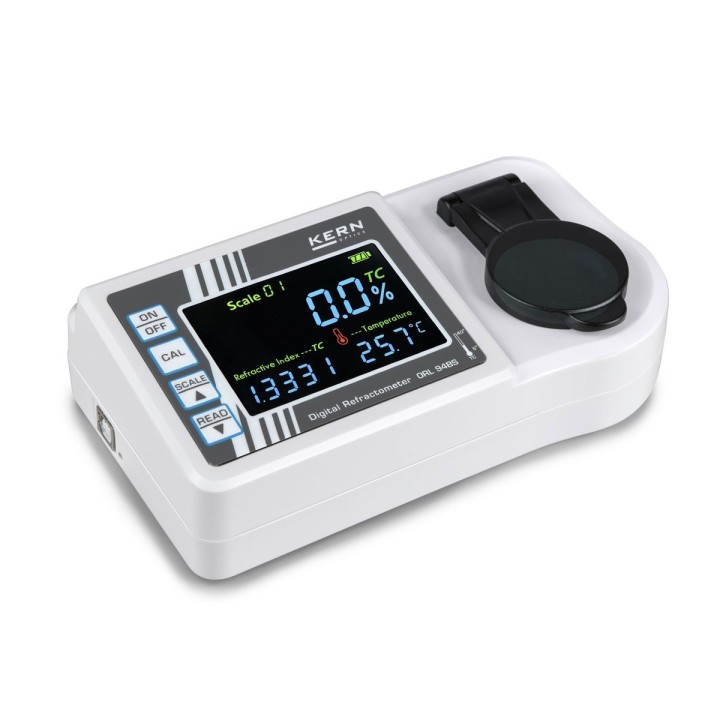

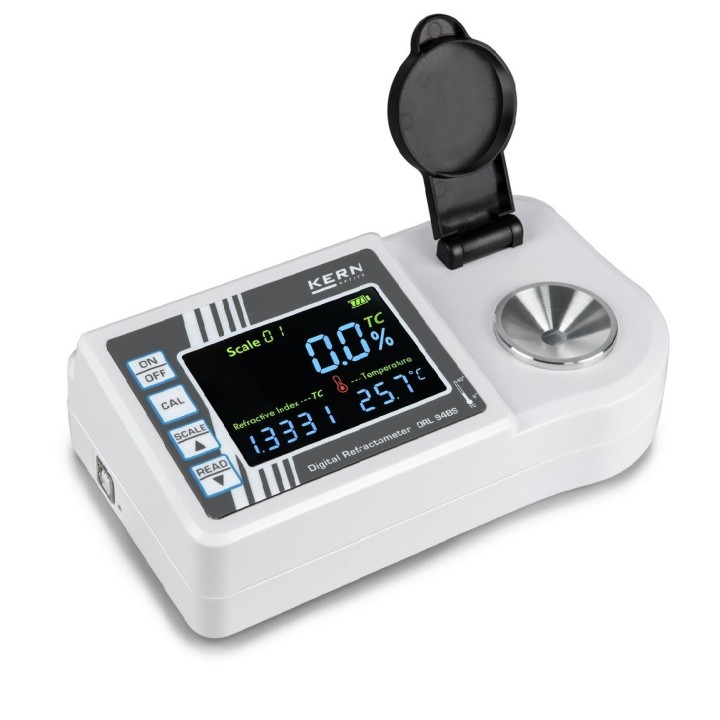

Digital handheld refractometer ORL 94LM food images
Digital handheld refractometer ORL 94LM food

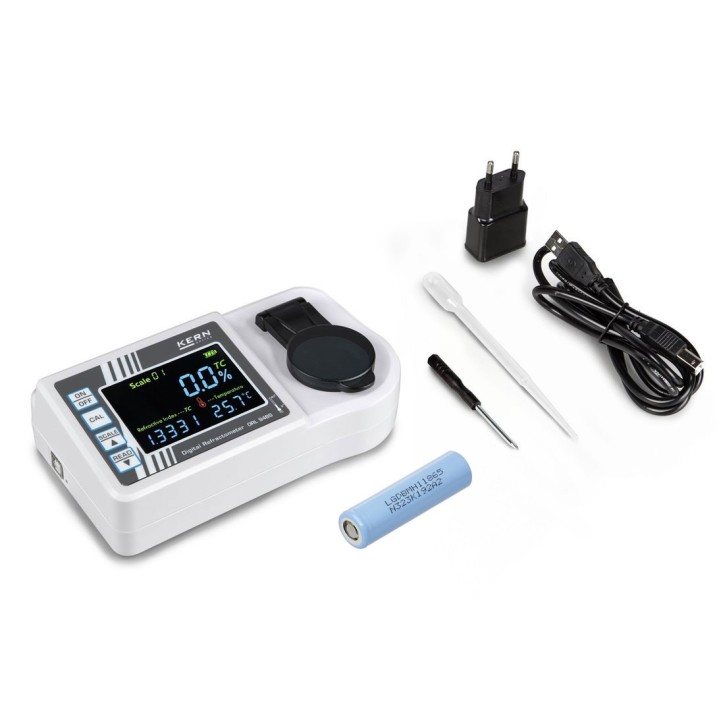

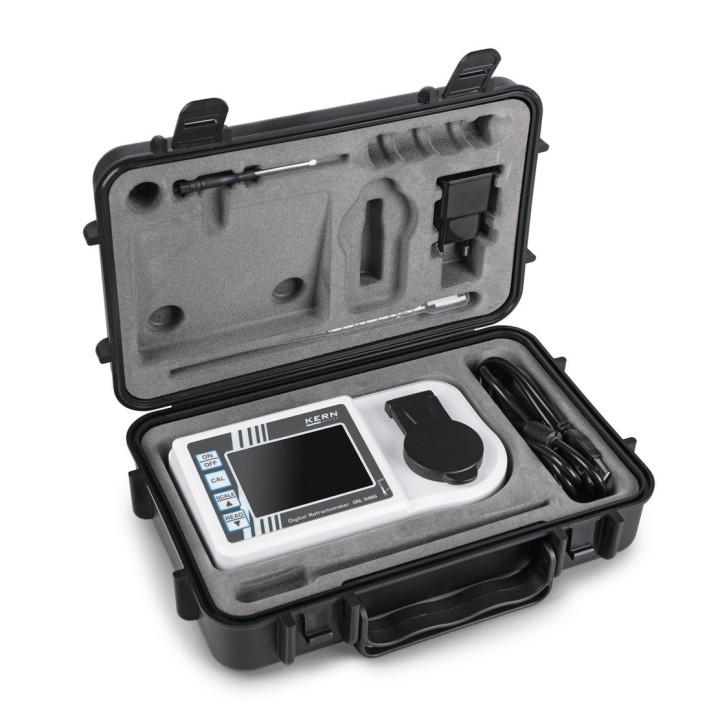

Practical application set including rechargeable battery for mobile use
In addition to the standard Brix and refractive index scales, eight further scales are installed specifically for food applications. This allows you to conveniently carry out various measurements, e.g. of sugar types or salt content, with just one device. You can easily change the scale by pressing a button.
NEW: The free OXR-BASIC software for performing measurements and for saving and exporting measurement results: download
The KERN ORL 94LM is a accurate, universal and maintenance-free digital desktop refractometer
Other key features are the extra-large measuring range and a high degree of accuracy
With their handy design, they are ideal for convenient and rapid everyday use
The large, easy-to-read display with integrated temperature display supports the user to reliably determine the measurement
The integrated automatic temperature compensation (ATC), avoids the manual conversion of the measurement. This allows a quick and efficient usage of the instrument
A quick and user-friendly calibration of the refractometer is possible at any time using commercially available distilled water
Mean value measurements possible
Technical Data
| Refractometer type | Desktop refractometer |
| Scale - Display type | Digital |
| Area of application | Food |
| Measuring method | Total reflection |
| Measurement temperature (°C) | 0 °C – 40 °C |
| Automatic temperature compensation (ATC) | |
| IP protection - complete device | IP43 |
| Dimension (W×D×H) | 180×100×55 mm |
| Brix scale | |
| Measuring range Brix | 0 % – 94 % |
| Readout Brix | 0,1 % |
| Scale salinity (NaCl) % | |
| Measuring range salinity (NaCl) % | 0 % – 28 % |
| Readout salinity (NaCl) % | 0,1 % |
| Scale salinity (NaCl) ‰ | |
| Measuring range salinity (NaCl) ‰ | 0 ‰ – 280 ‰ |
| Readout salinity (NaCl) ‰ | 1 ‰ |
| Scale salinity (spec. weight) | |
| Measuring range salinity (spec. weight) | 1,000 – 1,220 |
| Readout salinity (spec. weight) | 0,001 |
| Scale for Refractive index | |
| Measuring range refractive index | 1,3330 nD – 1,5290 nD |
| Readout refractive index | 0,0001 nD |
| Scale for fructose (fruit sugar) | |
| Measuring range fructose (fruit sugar) | 0 % – 69 % |
| Readout fructose (fruit sugar) | 0,1 % |
| Scale for glucose (fruit sugar) | |
| Measuring range glucose (fruit sugar) | 0 % – 60 % |
| Readout glucose (fruit sugar) | 0,1 % |
| Scale for dextran | |
| Measuring range dextran | 0 % – 11 % |
| Readout dextran | 0,1 % |
| Scale lactose (milk sugar) | |
| Measuring range lactose (milk sugar) | 0 % – 17 % |
| Readout lactose (milk sugar) | 0,1 % |
| Scale maltose (malt sugar) | |
| Measuring range maltose (malt sugar) | 0 % – 16 % |
| System requirements CPU | Intel Core i3 or higher, AMD Ryzen 5 or higher |
| System requirements clock speeds | 2.8 GHz |
| Power supply | power adapter and rechargeable battery |
