Digital handheld refractometer KRÜSS DR301-95 images

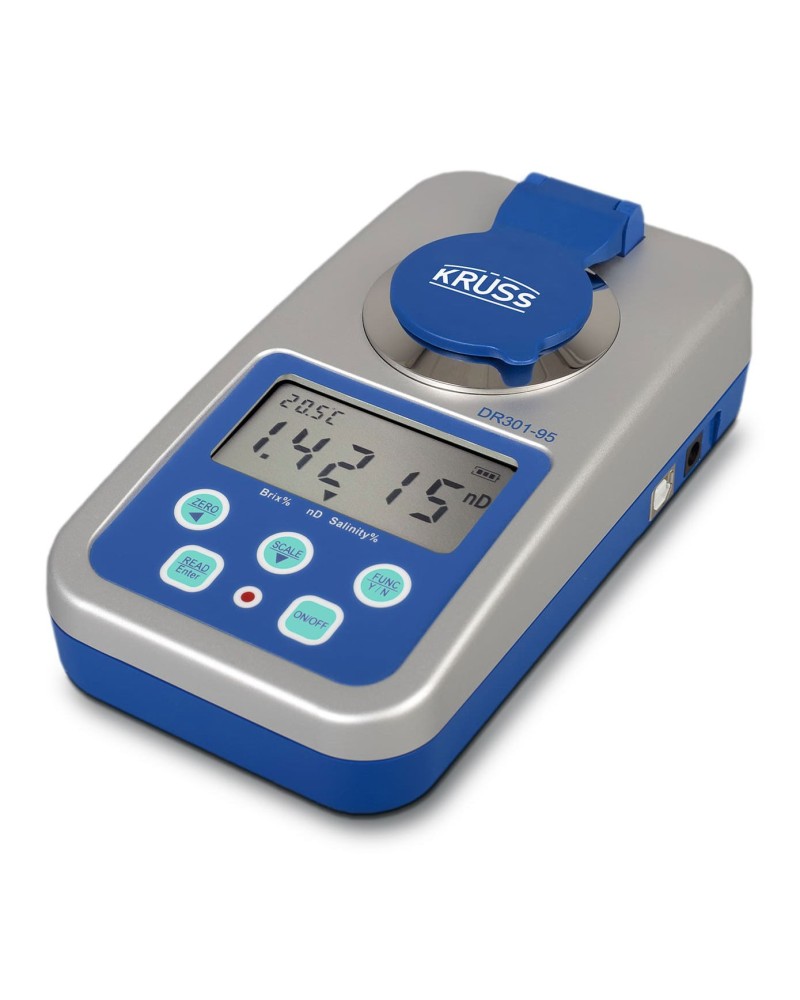

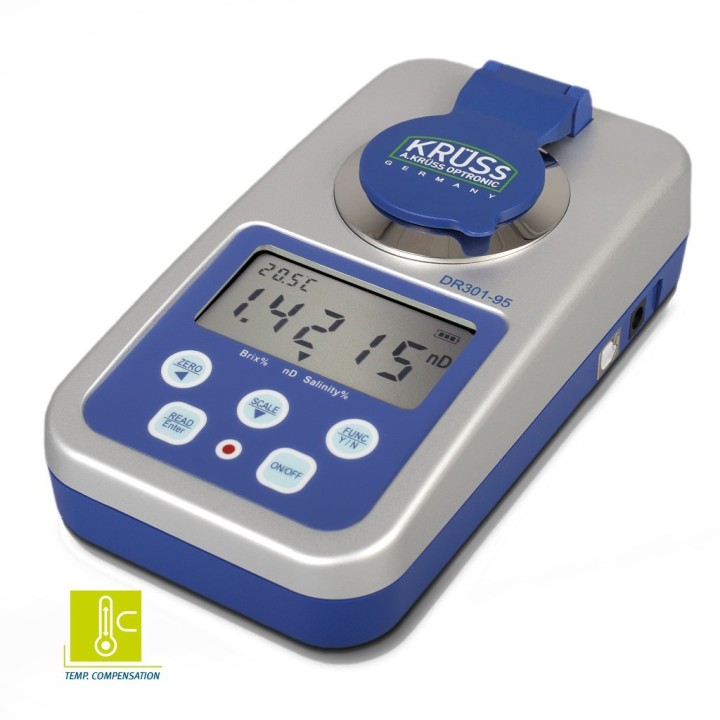

Digital handheld refractometer KRÜSS DR301-95
The KRÜSS DR301-95 is both a high-quality mobile handheld device and a simple digital desktop device. In addition to the refractive index and sugar content, it can also measure the salt content (%) (NaCl). On request, the DR301-95 can be manufactured with any two other scales. Via the menu control it is possible to switch on the automatic temperature compensation for each scale – with measurement reference to sucrose. An alarm option can be set up for monitoring limit values in production processes. The supplied Mains adaptor turns the DR301-95 into a small laboratory refractometer. In mobile use, it is operated with a 9 V block battery. The DR301-95 is used in the food and beverage industry, in pharmacies, laboratories
- Measurement range: nD 1.3330-1.5318 and 0-95%Brix
- High measurement accuracy: nD ±0.00015 and ±0.1 %Brix
- Can also be used to determine the salt content (%)
- Reproducible measurement results
- Optional automatic activation temperature compensation for all scales
- Swift filling and cleaning
- With high-quality, fully chrome-plated measurement tray
- Robust housing and low device weight
- Operation Mains adaptor or battery
Digital on-site measurements at the touch of a button
The mobile measurement with a digital handheld refractometer saves time as random checks or the regulation of mixing ratios can be carried out directly on the site. The measurement results are determined at the touch of a button and shown on the display. Unlike in the case of the analogue handheld refractometers, the digital determination of reproducible measurement results does not depend on the user’s interpretation
Typical applications KRÜSS DR301-95
The digital hand-held refractometers DR301-95 are the ideal solution for the chemical, petrochemical, automotive, aviation, metal processing and food industry as well as for hospitals and pharmacies.
- Characterisation tests in research and development
- Identity test, purity control and concentration determination of raw materials, semi-finished products and end products
- Tracking of chemical processes during production
- Outgoing goods inspection
- Stability test
- Determination of the sugar concentration
- Incoming and outgoing goods inspection
- Checking medicines for pharmacopeias
- Analysis of body secretions
Technical data DR301-95
| Specification | Digital handheld refractometers DR301-95 model |
|---|---|
| Measurement range | nD 1.3330-1.5318 0-95 %Brix |
| Measurement accuracy 1) | nD ±0.00015 ±0.1 %Brix |
| Resolution | nD 0.0001 0.1 %Brix |
| Measurement period 2) | approx. 1 second |
| Minimum sample volume | 0.3 ml |
| Temperature measurement accuracy | ±0.5 °C |
| Temperature measurement resolution | 0,1°C |
| Scales | refractive index (nD), concentration of sucrose (%Brix), salt content (%), on request up to two more scales |
| Adjustment | Via membrane keypad |
| Additional features | Optional temperature compensation for 10-40 °C IP code: IP50 |
| Parts in contact with the sample | Optical Flint glass (SF4), full chromed surface |
| Operation | Membrane keypad |
| Dimensions (W x H x D) | 180 mm x 100 mm x 60 mm |
| Weight | 500 g |
| Operating voltage | 9 V (1x9V battery) |
¹) Under normal conditions for measurement refractive index (λ = 589 nm, 20 °C, 1013 hPa, 50 % relative humidity)
²) after temperature equalization
- Brand
- ReferenceDR301-95C
