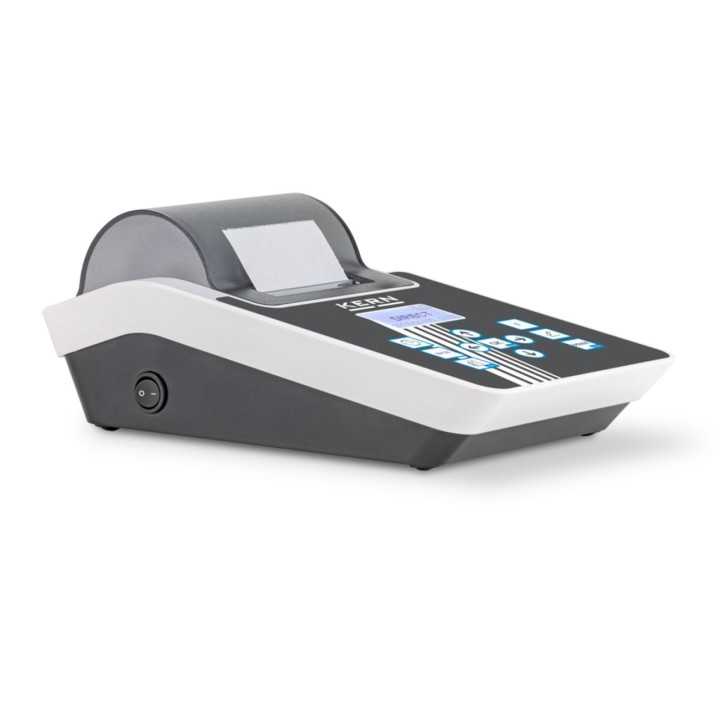

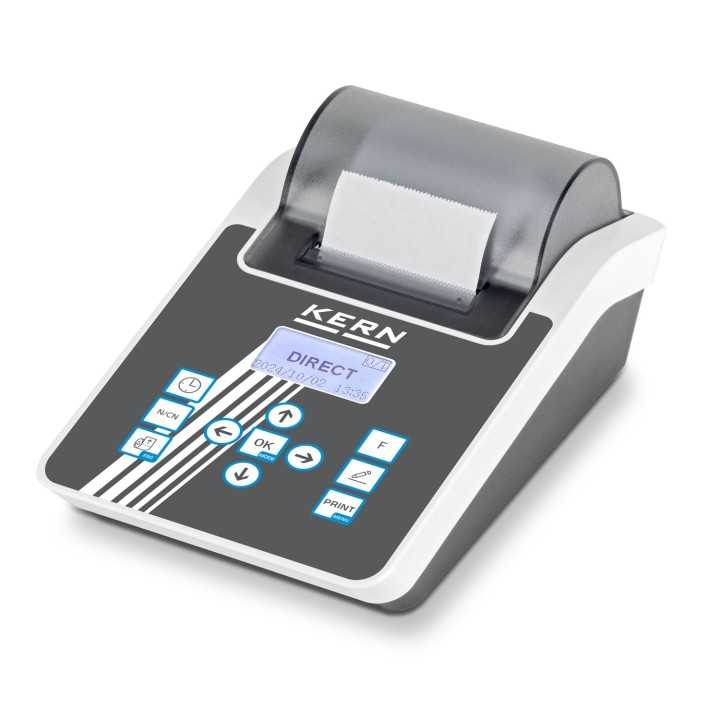

KERN YKT-01 High-quality dot matrix printer
High-quality dot matrix printer with large LCD display and numerous functions, e.g. statistical function, batch labelling in plain text and totalizing function
| Dimension (W×D×H) | 114,6×188,2×86,6 mm |
| Statistic function | |

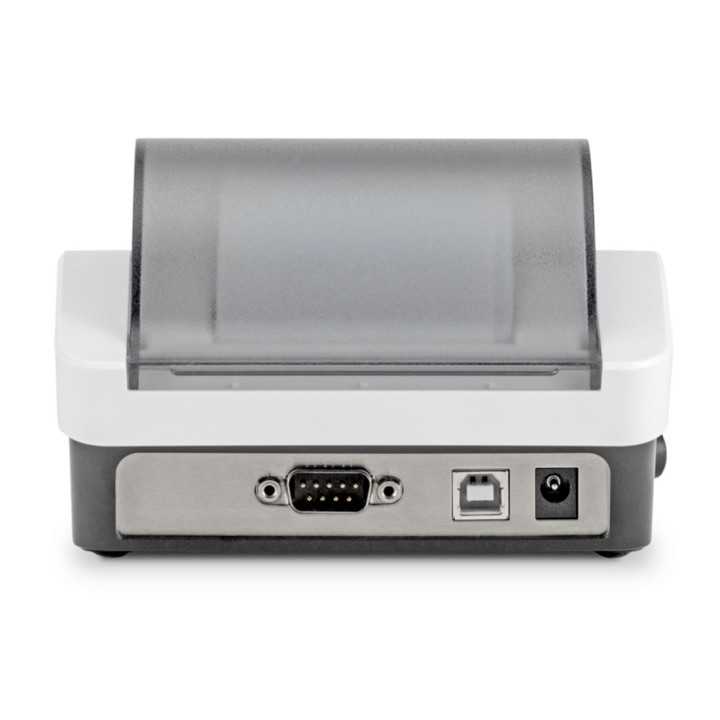

| Interfaces | RS-232 standard |
| Power supply type | Power adapter |
| Input voltage power supply / power [Max] | 100 V - 240 V AC, 50 / 60 Hz |
| Input voltage device / power [Max] | 12 V, 2000 mA |
| Plug-in power supply / adapter for countries - included with the delivery | EURO, AUS, UK, US, CH |
| Net weight approx. | 0,65 kg |
GLP-compliant printout thanks to durable paper and dot matrix printing process
Printout of date and time to document the weighings with a time stamp

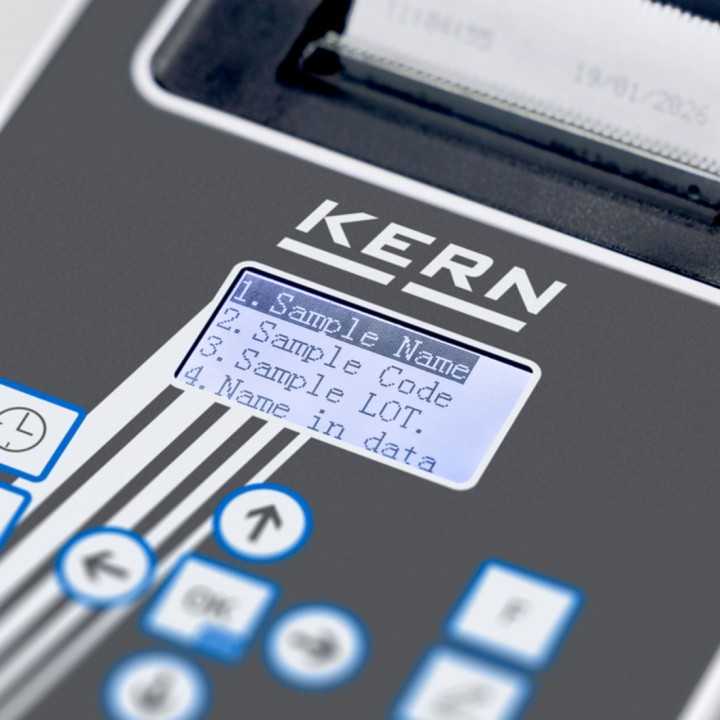

Specification of name, batch number and ID for printing user-defined information
Display and printout of tare, gross and net weights for easy calculation and documentation
Multiple weighing for storing and processing multiple consecutive weighings
Recipe function for weighing and documenting various components
Totalizing function for calculating the total of multiple weighings
Statistical function for calculating and printing statistical values such as average value or standard deviation
Label printing possible, only in combination with optional label rolls, see accessories (KERN YKT-A05S05)
Printing process: 8 print magnets with dot matrix
Speed: 1,7 line/s
Character size (ASCII characters): W×H 1.7×2.6 mm
Service life: 1 million lines
Ribbon cartridge: EPSON ERC-22 or ERC-09B
Operation via mains adapter 100-230 V/50-60 Hz (plug standard EU)
