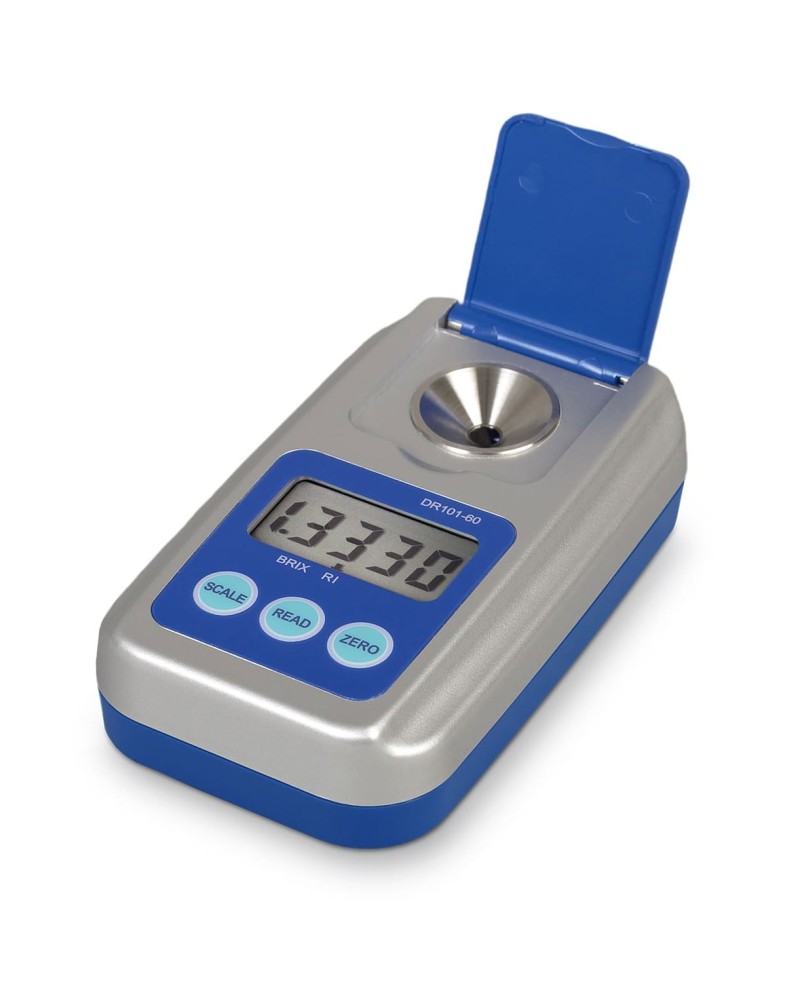

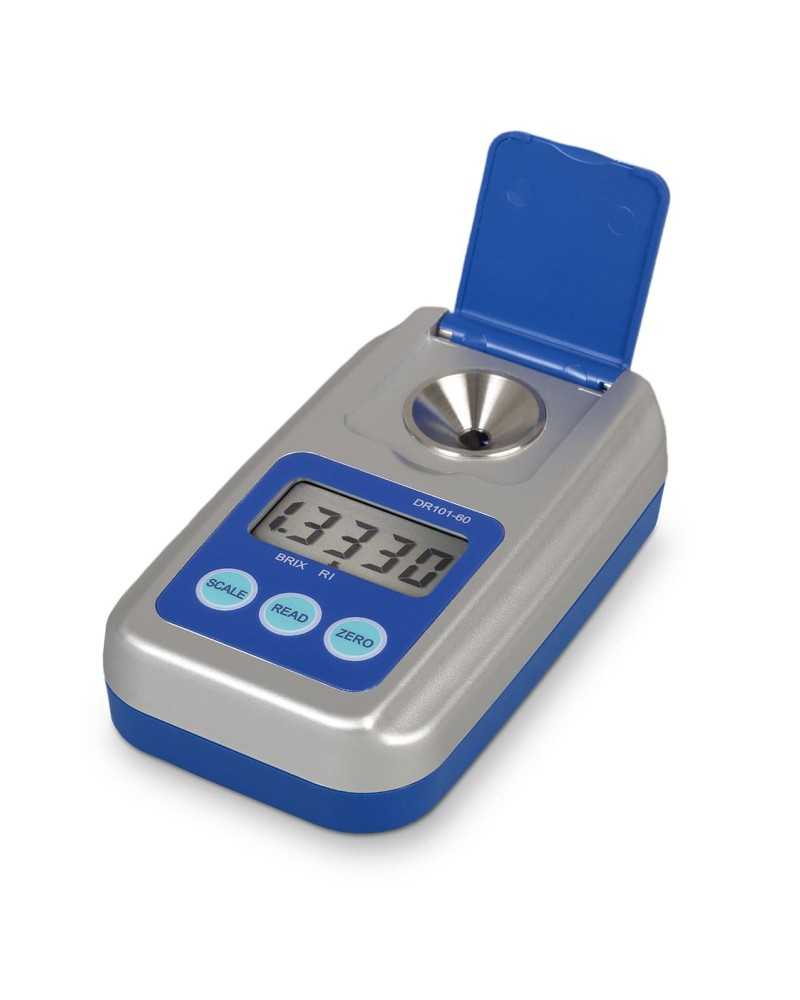

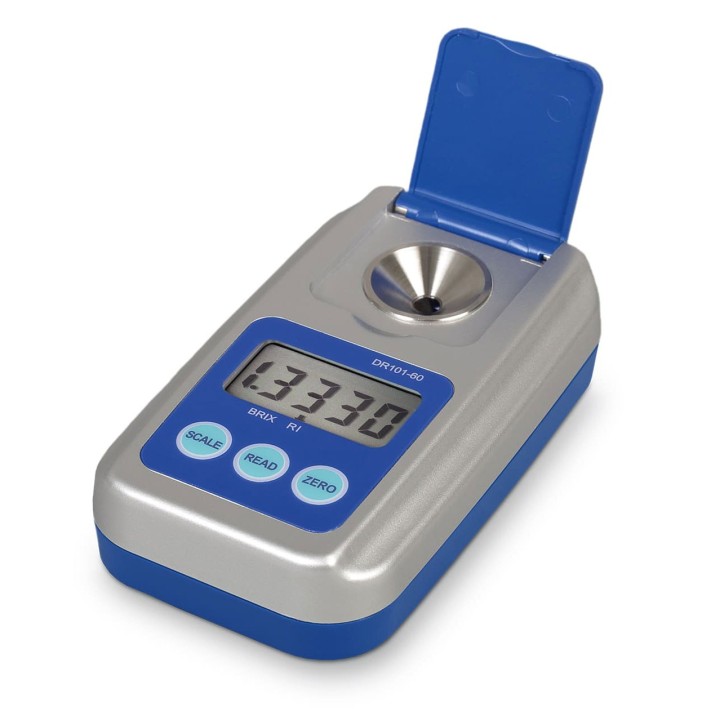

Digital handheld refractometer KRÜSS DR101-60


Digital handheld refractometer KRÜSS DR101-60

KRÜSS
DR101-60C

KRÜSS DR101-60 is a compact, mobile and splash-proof digital handheld refractometer. Thanks to the automatic temperature compensation for the BRIX scale, a reproducible measurement can be achieved even under changing ambient conditions. As a waterproof device, the DR101-60 meets the IP65 standard and can be cleaned under running water. The DR101-60 is used in the food and beverage industry, in pharmacies, laboratories and testing laboratories as well as in research and teaching.

  • Measurement range: nD 1.3330-1.4419 and 0-60%Brix
  • Mobile automatic measurement at the touch of a button
  • Reproducible measurement results that are not dependent on the user’s interpretation.
  • Automatic temperature compensation (BRIX scale)
  • Swift filling and cleaning
  • With high-quality, fully chrome-plated measurement tray
  • Robust housing and low device weight
Hurry! only 5 items left in stock.
€289.00
Tax excluded
Quantity

  • Characterisation tests in research and development
  • Identity test, purity control and concentration determination of raw materials, semi-finished products and end products
  • Tracking of chemical processes during production
  • Outgoing goods inspection
  • Stability test
  • Determination of the sugar concentration
  • Incoming and outgoing goods inspection
  • Checking medicines for pharmacopeias
  • Analysis of body secretions

Technical data DR101-60

Specification Digital handheld refractometers DR101-60 model
Measurement range nD 1.3330-1.4419
0-60 %Brix
Measurement accuracy 1) nD ±0.0005
±0.35 %Brix
Resolution nD 0.0001
0.1 %Brix
Measurement period 2) Approx. 1 second
Minimum sample volume 0.3 ml
Temperature measurement accuracy ±0.5 °C
Temperature measurement resolution 0,1°C
Scales Refractive index (nD), concentration of sucrose (%Brix)
Adjustment Via membrane keypad
Additional features Temperature compensation for 10-40 °C 3)
IP code: IP65
Parts in contact with the sample Optical Flint glass (SF4), full chromed surface
Operation Membrane keypad
Dimensions (W x H x D) 110 mm x 62 mm x 32 mm
Weight 160 g
Operating voltage 1.5 V (1xAAA battery)

¹) Under normal conditions for measurement refractive index (λ = 589 nm, 20 °C, 1013 hPa, 50 % relative humidity)

²) After temperature equalization

³) Temperature compensation only scale %Brix
