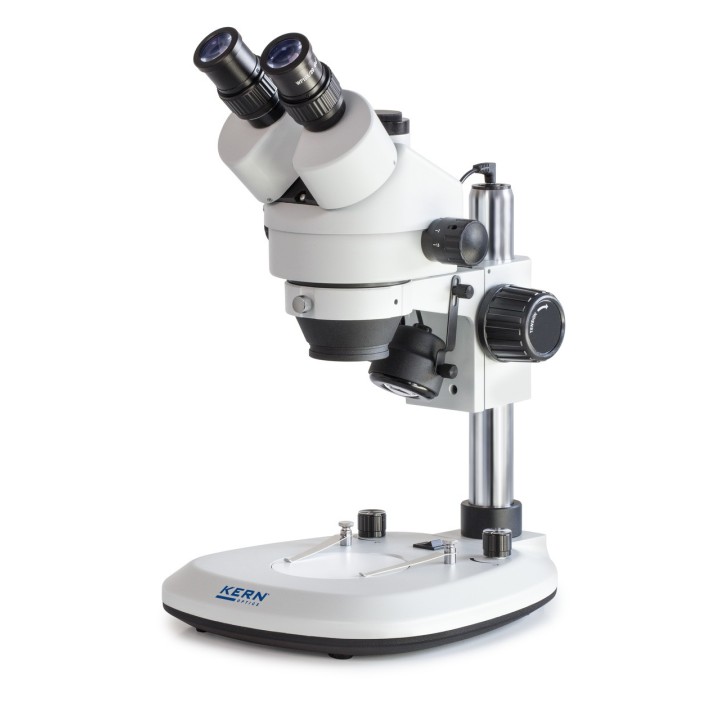

Stereo zoom microscope KERN OZL 463 LED

Stereo zoom microscope KERN OZL 463 LED

The flexible, affordable all-rounder with zoom function for schools, training companies, inspection authorities and laboratories

360° rotatable microscope headBinocular Microscope: For the inspection with both eyes LED illumination: Cold, energy saving and especially long-life illuminationIncident illumination: For non-transparent objectsTransmitting illumination: For transparent objectsZoom magnification: For stereomicroscopesMains adapter: 230V/50Hz in standard version for Germany. On request GB or USA version. 3 years warranty

€600.00
€540.00Save 10%
Tax excluded
1-3 days
Payment
discover visa googlewallet paypal mastercard americanexpress
  • The products in the KERN OZL-46 series are stereo zoom microscopes, which will impress you with their quality, easy handling, flexibility as well as their stability and economical price
  • The LED reflected and transmitted illumination included as standard guarantees the very best illumination of your sample
  • The highlight of the OZL 465/OZL 466 is the strong, continuously dimmable, integrated LED ring illumination in the objective housing, which ensures uniform, shadow-free illumination. An LED transmitted light variant is also included
  • As well as excellent optical characteristics and their large working surface, these models offer the highest level of comfort in this class – ideal for training companies, workshops as well as assembly and repair workstations, e.g. in the electronics industry
  • The zoom objective offers you continuous magnification from 7×–45×
  • The KERN OZL-46 series is available as a binocular or trinocular version
  • The pillar stand offers you the highest level of flexibility and the freedom to remove the microscope head and to integrate it into other modular systems, for example into a universal stand
  • With its integrated handle as well as its stable arm curved stand, the KERN OZL 467/OZL 468 has been specially developed for schools and workshops
  • A large selection of eyepieces, external illumination units as well as auxiliary objectives are available as accessories
  • A protective dust cover, eye cups, as well as multi-lingual user instructions are included in the scope of delivery
  • A C-mount adapter is required to connect a camera to the trinocular version. You can select this adapter from the following model outfit list

Scope of application

  • In vitro fertilisation, detection of parasites, zoology and botany, tissue preparation, section, quality control

Applications/Samples

  • Samples with focus on three-dimesnional impression, zoom with variable magnification (depth, thickness), e.g. insects, seeds, circuit boards, components

Technical data

  • Optical system: Greenough optics
  • Brightness adjustable (separate)
  • Tube 45° inclined
  • Magnification ratio: 6,4:1
  • Light distribution 50:50
  • Interpupillary distance 55 – 75 mm
  • Diopter adjustment: Both-sided
  • Overall dimensions W×D×H 300×240×420 mm
  • Net weight approx. 4 kg
OZL 463

Data sheet

Power Source
100 - 240 V
Illumination
3 W LED (incident); 3 W LED (transmitted)
Optical system
Greenough optics
Tube
Binocular
Objectives
0,7× – 4,5×
