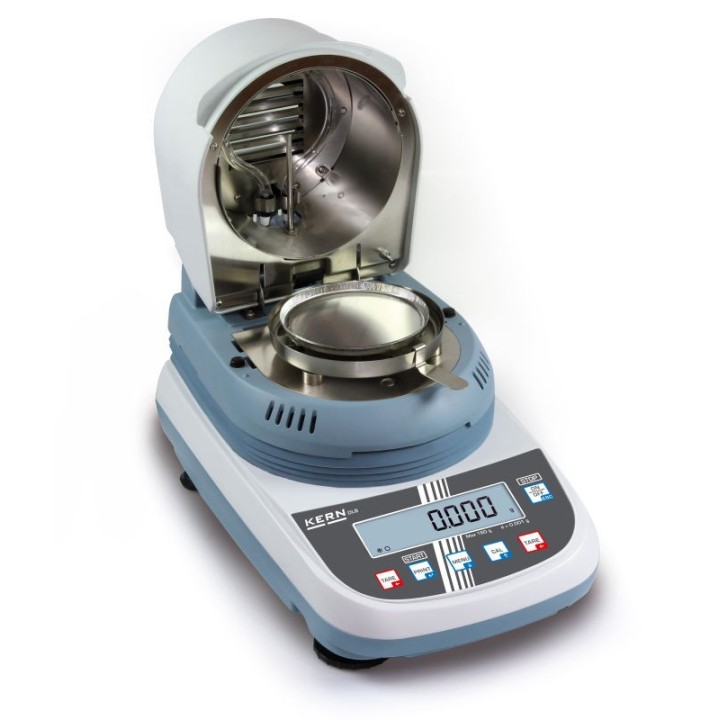

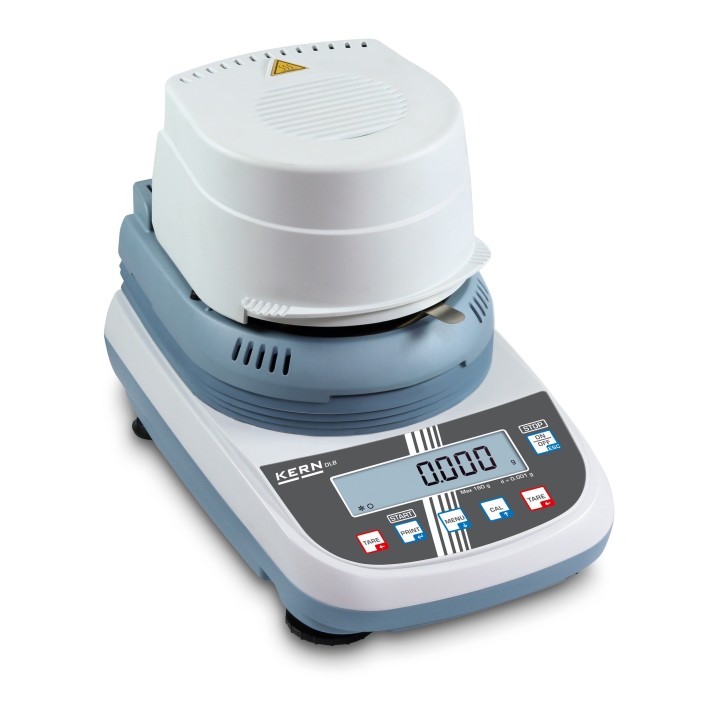

KERN DLB 160-3A Moisture analyser 1 mg

KERN DLB 160-3A Moisture analyser 1 mg

Adjusting program (CAL): For quick setting of the balance's accuracy. External adjusting weight required. Memory: Balance contains memories, e.g. for tare weights, weighing data, item data, PLU etc. Data interface RS-232: To connect the balance to a printer, PC or network GLP/ISO log: with weight, date and time. Only with KERN printers, see Accessories Weighing units: Can be switched to e.g. nonmetric units at the touch of a key. See balance model. Mains adapter: 230V/50Hz in standard version for Germany. On request GB or USA version. Strain gauge: An electrical resistor strip that is glued to an elastic deforming body made of aluminium. As the strain gauge is mechanically deformed its resistance value changes, allowing


Weighing capacity [Max]160 g
Readability [d]0,001 g
Weighing systemStrain gauge
Temperature [Min] (°C)35 °C
Temperature [Max] (°C)160 °C
Stabilization time4 s
Unitsg, mg, % rH, % Dry mass
Reproducibility0,001 g
Linearity± 0,003 g
Readability moisture [d] (%)0,01%
Drying modesStandard drying, Rapid drying
Switch-off criteriatime controlled, automatic, manual
Input Voltage110V or 240V, 50-60 Hz
Product groupMoisture analyser
€1,489.50Save 10%
Tax excluded
in stock
discover visa googlewallet paypal mastercard americanexpress

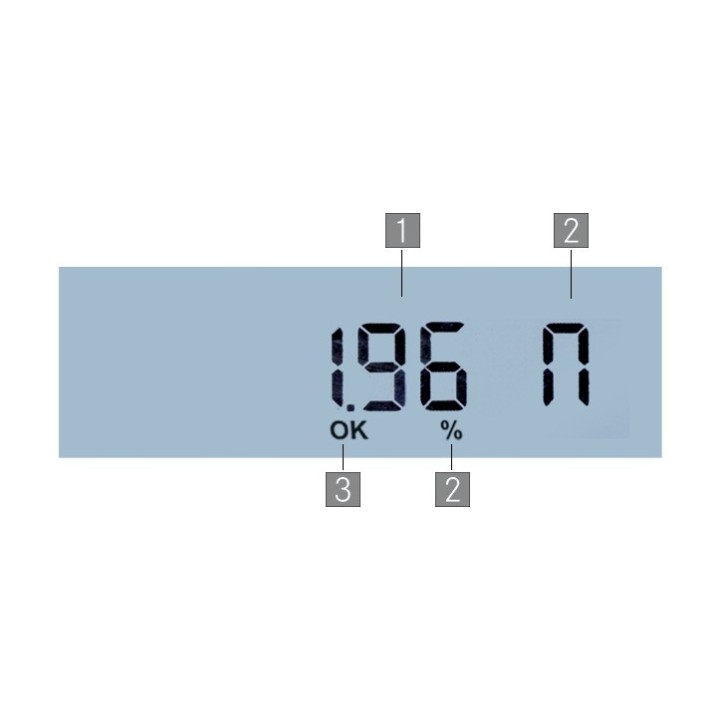

  • Backlit LCD display, digit height 17 mm
    • Current moisture content in %
    • Unit of the shown result, e.g. moisture
    • Drying process active
  • Halogen quartz glass heater 400 W
  • Internal memory for automatic sequence of 5 complete drying processes
  • The last value measured remains on the display until it is replaced by a new measurement
  • 10 sample plates included
  • Protective working cover included with delivery
  • Application handbook: On the internet, you will find a practical application handbook containing many examples, field reports, settings and tips for each KERN moisture analyser

The moisture analyser for heavy, high-volume samples KERN DLB 160-3A

  • Readability [d]: 160 g
  • Weighing capacity [Max]: 0,001 g/0,01 %
  • Reproducibility, weight of sample 10 g: 0,05%
  • Display after drying
  • Moisture [%] = Moisture content (M) from wet weight (W): 0–100 %
  • Dry content [%] = 100–0 %
  • Dry weight (D) from W 100–0 %
  • ATRO [%] [(W-D) : D] · 100%: 0–999 %
  • Moisture content (M): Absolute value in [g]
  • Temperature range: 35 °C–160 °C in steps up to 1 °C
  • Drying modes: Standard drying, Drying in levels, Rapid drying
  • Switch-off criteria
  • · Automatic unrestricted switch-off (Selectable loss in weight 0,01% – 0,1% in 30 s)
  • · Time controlled switch-off (1 min – 12 h)
  • · Manual switch-off at the press of a button
  • Log output:
  • · Continuous output (residual weight)
  • · At the end of the drying process, manual or automatic
  • Input voltage: 100V - 240V AC 50 Hz
  • Overall dimensions W×D×H: 210×340×225 mm
  • Net weight: approx. 4,2 kg
DLB 160-3A
