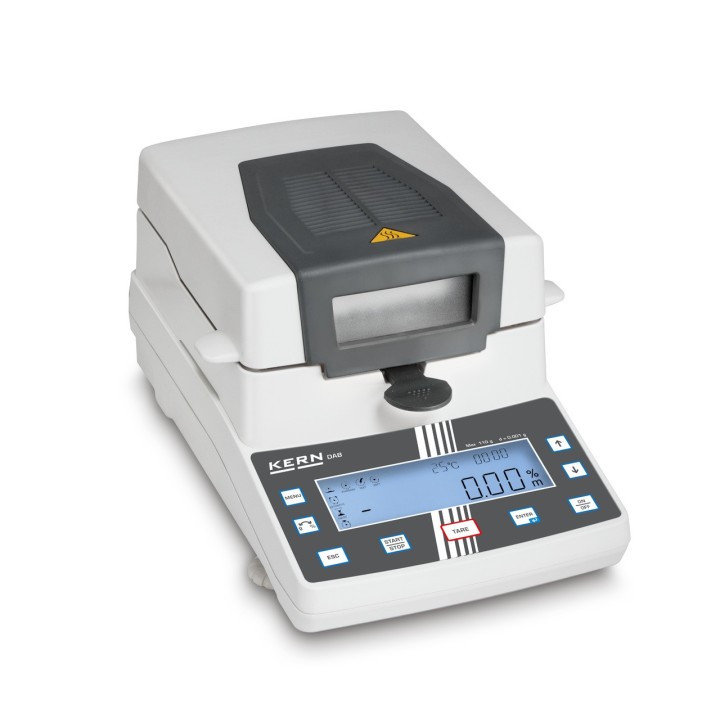

KERN DAB 100-3 Moisture analyser


KERN DAB 100-3 Moisture analyser 1 mg

KERN & SOHN GmbH
DAB 100-3

Moisture analyser with user-friendly graphics display and 15 memories for drying programs

Adjusting program (CAL): For quick setting of the balance's accuracy. External adjusting weight required. Memory: Balance contains memories, e.g. for tare weights, weighing data, item data, PLU etc. Data interface RS-232: To connect the balance to a printer, PC or network GLP/ISO log: with weight, date and time. Only with KERN printers, see Accessories Weighing units: Can be switched to e.g. nonmetric units at the touch of a key. See balance model. Mains part: mains part integrated in the balance. 230V/50Hz Standard type D, if requested also available in standard GB, AUS or USA. Strain gauge: An electrical resistor strip that is glued to an elastic deforming body made of aluminium. As the strain gauge is mechanically deformed its resistance value changes, allowing the measured value to be calculated. 3 years warranty

TECHNICAL DATA

Weighing capacity [Max] 110 g
Readability [d] 0,001 g
Weighing system Strain gauge
Temperature [Min] (°C) 40 °C
Temperature [Max] (°C) 199 °C
Stabilization time 3 s
Units g, % Humidity, % Dry mass
Reproducibility 0,001 g
Linearity ± 0,003 g
Readability moisture [d] (%) 0,01%
Drying modes Standard drying, Rapid drying, Gentle drying
Switch-off criteria time controlled, automatic, manual
Input voltage device / power [Max] 230 V AC, 50 Hz
Product group Moisture analyser
Calibration : without calibration
Hurry! only 11 items left in stock.
€1,125.00
€1,250.00
Save 10%
Tax excluded
Quantity

in stock
Add to Compare
Add to Wishlist

  • Backlit LCD display, digit height 14 mm
    1. Drying process active
    2. Active heating profile
    3. Active switch-off criteria
    4. Previous drying time
    5. Current temperature
    6. Unit of the shown result, e.g. moisture [%]
    7. Interim result in moisture-%
  • Halogen quartz glass heater 400 W

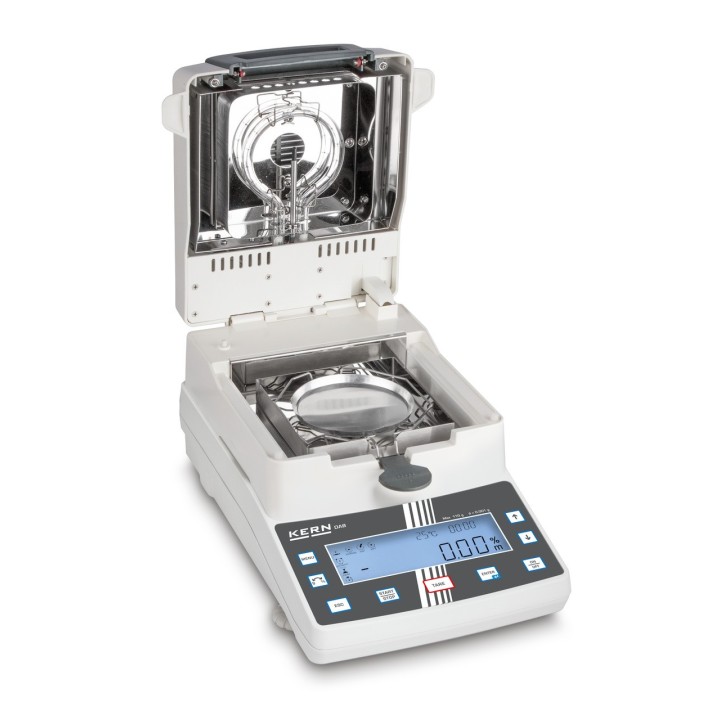

  • Observation window above the sample, useful during initial setting
  • Internal memory for automatic sequence of 15 complete drying processesand 5 drying processes carried out
  • The last value measured remains on the display until it is replaced by a new measurement
  • 50 sample plates included
  • Application handbook: On the internet, you will find a practical application handbook containing many examples, field reports, settings and tips for each KERN moisture analyser

Moisture analyser KERN DAB 100-3

  • Adjusting program (CAL): For quick setting of the balance's accuracy. External adjusting weight required.
  • Memory: Balance contains memories, e.g. for tare weights, weighing data, item data, PLU etc.

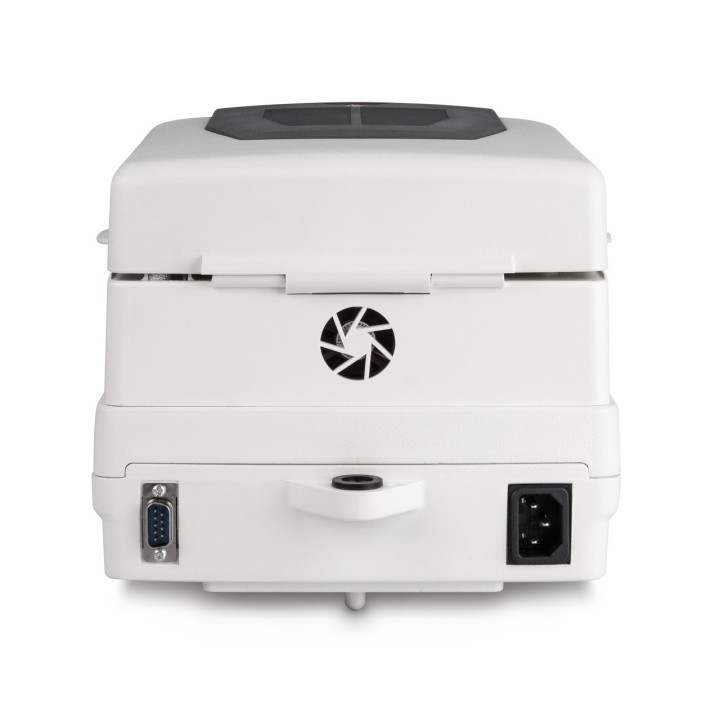

  • Data interface RS-232: To connect the balance to a printer, PC or network" title="Data interface RS-232: To connect the balance to a printer, PC or network
  • GLP/ISO log: with weight, date and time. Only with KERN printers, see Accessories
  • Weighing units: Can be switched to e.g. nonmetric units at the touch of a key. See balance model.
  • Mains part: mains part integrated in the balance. 230V/50Hz Standard type D, if requested also available in standard GB, AUS or USA.
  • Strain gauge: An electrical resistor strip that is glued to an elastic deforming body made of aluminium. As the strain gauge is mechanically deformed its resistance value changes, allowing the measured value to be calculated.
  • 3 years warranty
: DAB 100-3
Hurry! only 11 items left in stock.

Data sheet

Weighing range [Max]
110 g
Readout [d]
1 mg
Weighing plate dimensions
92 mm
