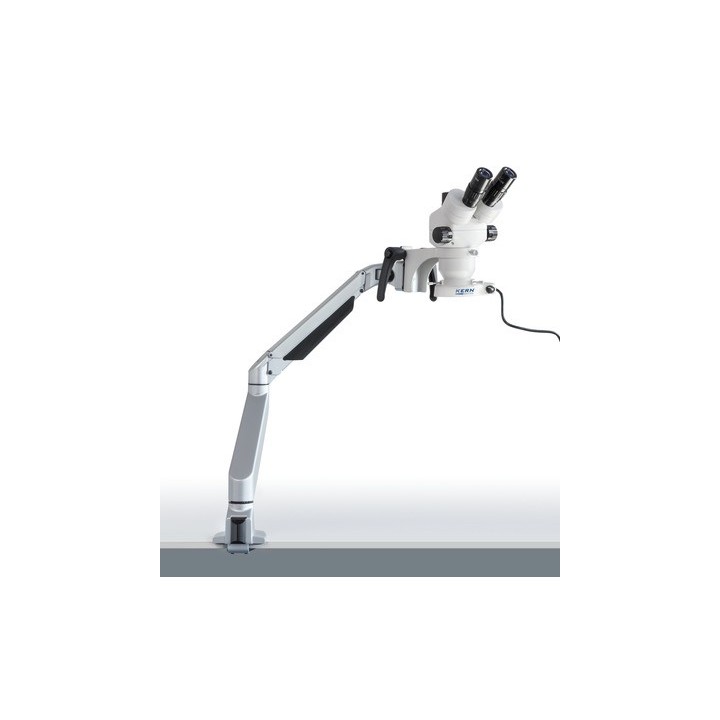

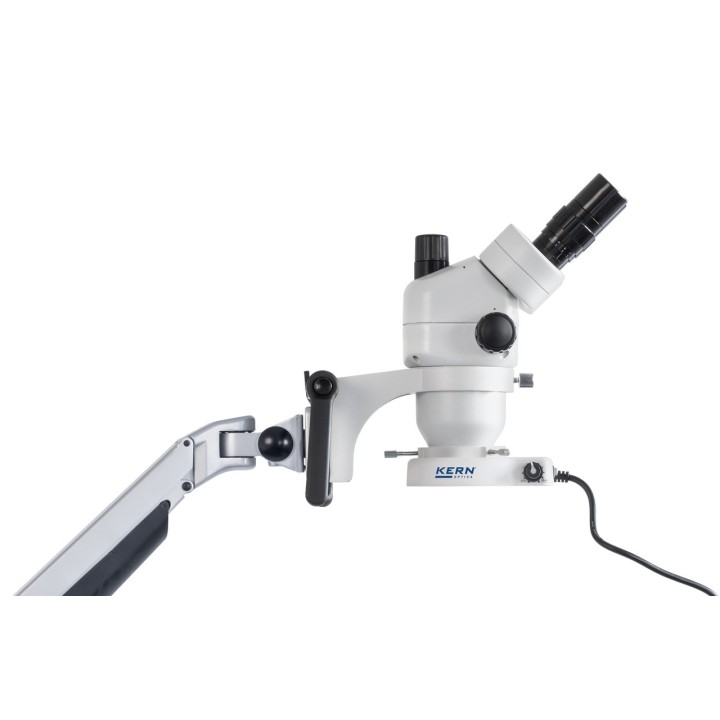

Stereo microscope Set KERN OZM 983

Construction

• Optical system Greenough
• Tube type Trinocular
• Tube angle of inclination 45°
• Tube 360° rotation ✓
• Light distribution 0:100
• Contrasting methods Bright field
• Interpupillary distance [Min] 52 mm
• Interpupillary distance [Max] 76 mm
• Diopter adjustment both-sided
• Diopter adjustment [Min]-6
• Diopter adjustment [Max] 6

Ocular

• Ocular type Eyepiece HSWF 10x / Ø 23mm with anti-fungus, high eye point
• Ocular field width HSWF
• Eye point High Eye Point
• Ocular magnifications 10x
• Ocular visual field 23 mm
• Ocular diameter 30 mm

Objective

• Objectives magnifications 0,7x - 4,5x
• Illumination
• Illuminance Reflected light
• Illumination type incident light LED
• Illumination intensity incident light 4,5 W
• Illumination dimmable Incident light

Focussing

• Field of view [Min] 5,1 mm
• Field of view [Max] 32,8 mm
• Standard total magnification [Min] 7x
• Standard total magnification [Max] 45x
• Zoom [Min] 0,7x Zoom [Max] 4,5x
• Sample height [Max] 130 mm
• Torque regulation ✓
• Working distance 110 mm
• Magnification ratio 6,4:1
• Focusing mechanism coarse drive

Stereomicroscope stand

• Stand type universal (spring loaded arm with clamp)
• Diameter mounting microscope head (Ø) 76 mm

Power Supply

• Power supply type Built-in power supply
• Plug-in power supply / adapter for countries - optional EURO AUS UK US CH
• Input voltage power supply / power [Max] 100 - 240 V
• Input voltage device / power [Max] 100 - 240 V
• Power socket for mains adapter Protective contact plug

Environmental conditions

• Storage temperature [Min]-5 °C
• Storage temperature [Max] 40 °C
