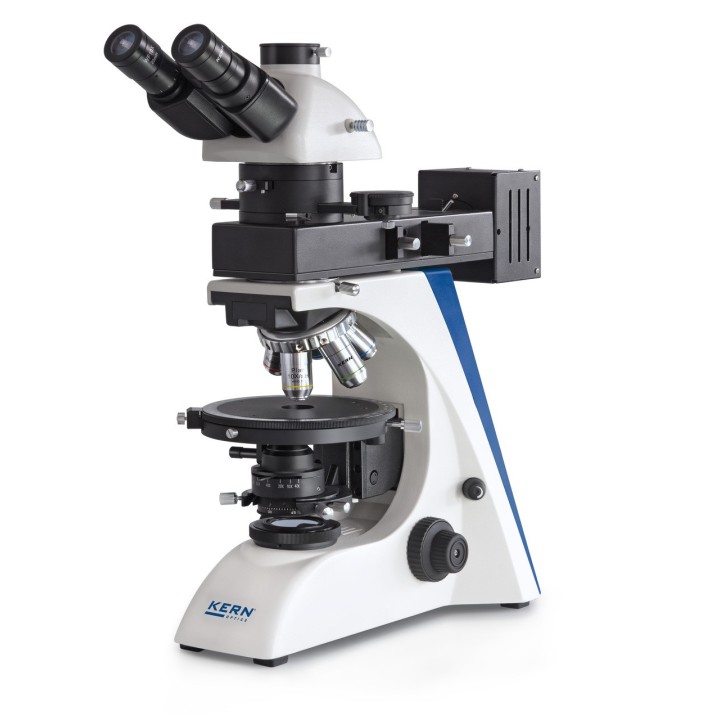

Polarising microscope KERN OPO 185

• These devices are professional, fully-equipped polarising microscopes, which use the polarisation of light to analyse minerals, crystals and isotropic materials
• You can choose between a pure transmitted light variant (KERN OPM), a pure reflected light variant (KERN OPN) and a combi variant (KERN OPO). A complete Koehler illumination is integrated into all series as standard
• As standard, the KERN OPM and OPO transmitted illumination variants have a height-adjustable 0,9/0,13 swing-out Abbe condenser which can be centred, for complete Koehler illumination
• A 360° revolving stage with 1° division, 6' fine division and locking function is integrated into all series as standard
• As standard all series are fitted with a complete polarising unit with scale, a Bertrand lens, a λ + ¼ λ Slip as well as a quartz wedge
• A large selection of accessories such as, for example, a mechanical stage attachment as well as further objectives for a long working distance and filter units are also available
• A protective dust cover, eye cups, as well as multi-lingual user instructions are included in the scope of delivery
• A C-Mount adapter is required to connect a camera. You can select this adapter from the following model outfit list
• Please find detailed information in the following model outfit list

Scope of application

• Mineralogy, texture observations, material testing, observation of crystals

Applications/Samples

• More complex samples with polarising properties

Technical data

• Infinity optical system
• Quintuple nosepiece
• Siedentopf 30° inclined/360° rotatable
• Diopter adjustment: One-sided
• Overall dimensions W×D×H 500×200×500 mm
• Net weight approx. 14,5 kg
