    KERN DBS 60-3 Moisture analyser

    KERN DBS 60-3 Moisture analyser

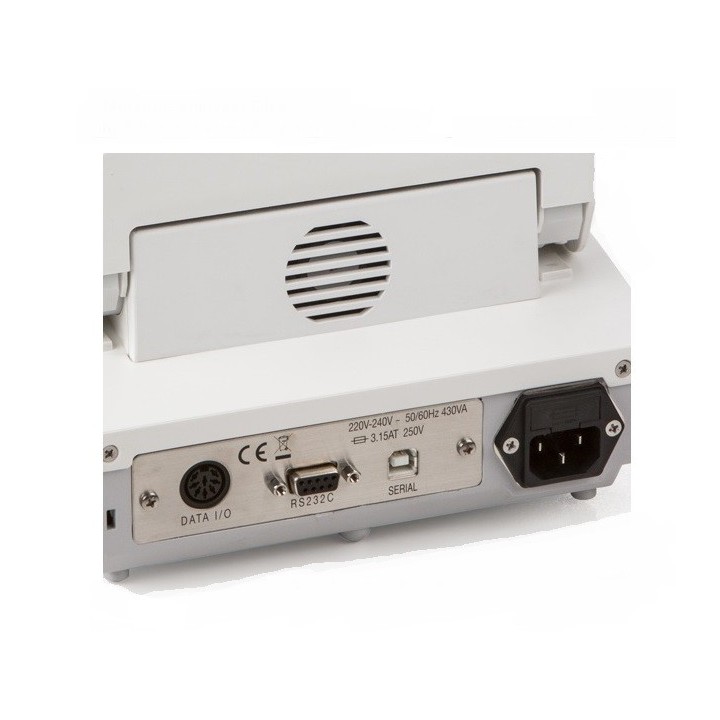

    Adjusting program (CAL): For quick setting of the balance's accuracy. External adjusting weight required. Memory: Balance contains memories, e.g. for tare weights, weighing data, item data, PLU etc. Data interface RS-232: To connect the balance to a printer, PC or network GLP/ISO log: the balance displays the weight, date and time, regardless of printer connected Weighing units: Can be switched to e.g. nonmetric units at the touch of a key. See balance model. Mains part: mains part integrated in the balance. 230V/50Hz Standard type D, if requested also available in standard GB, AUS or USA. Weighing principle: Electromagnetic force compensation: Coil inside a permanent magnet. For the most accurate weighings

    TECHNICAL DATA

    Weighing capacity [Max]60 g
    Readability [d]0,001 g
    Weighing systemSingle-Cell
    Temperature [Min] (°C)50 °C
    Temperature [Max] (°C)200 °C
    Stabilization time3 s
    Unitsg, % Humidity, % Dry mass, % ATRO
    Reproducibility0,001 g
    Linearity± 0,003 g
    Readability moisture [d] (%)0,01%
    Drying modesStandard drying, Rapid drying, Gentle drying, Drying in levels
    Switch-off criteriatime controlled, automatic, manual
    Product groupMoisture analyser
    Calibration
    €1,750.00
    Tax excluded
    in stock
    Payment
    discover visa googlewallet paypal mastercard americanexpress

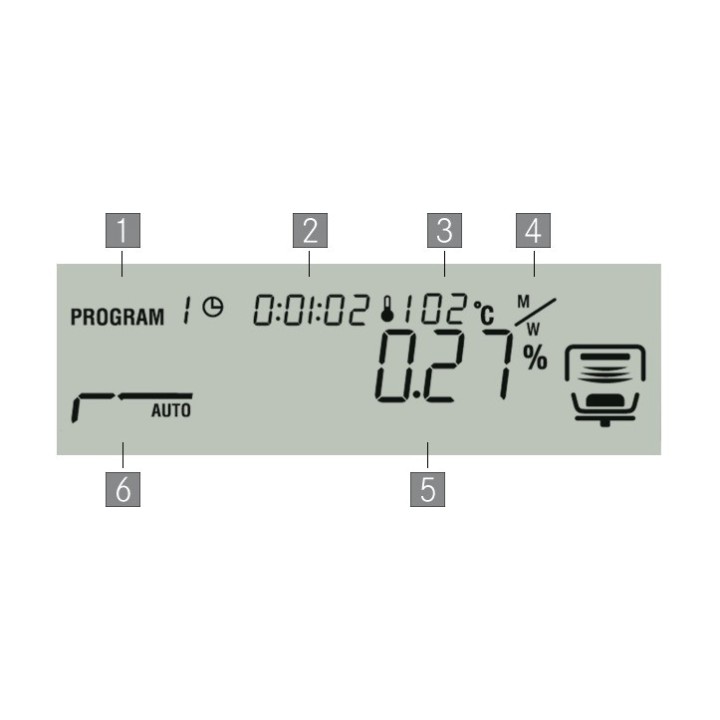

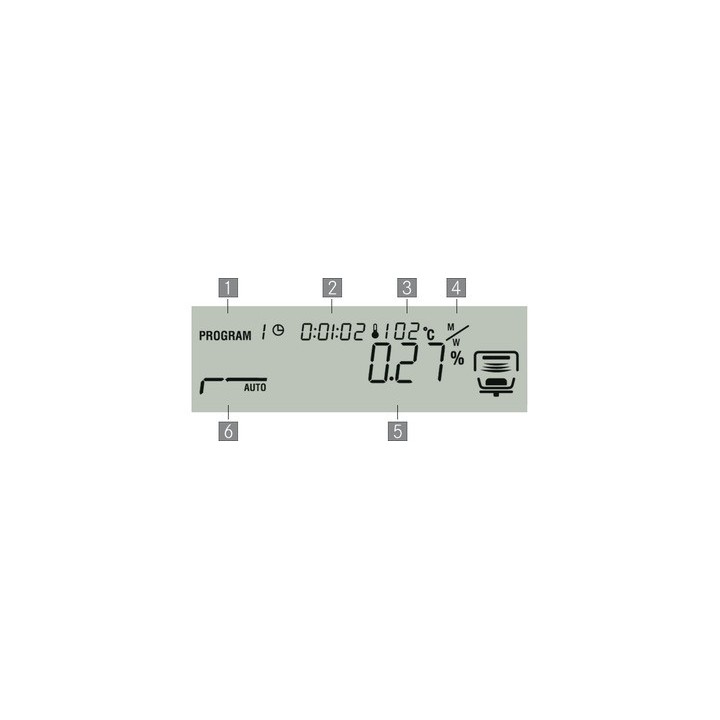

    • Backlit LCD graphic display with digit height 15 mm
    • Drying process active
    • Previous drying time
    • Current temperature
    • Unit of the shown result, e.g. moisture
    • Current moisture content in %
    • Active heating profile
    • Halogen quartz glass heater 400 W Observation window above the sample, useful during initial setting
    • Internal memory for automatic run of 10 drying programs and 100 drying processes already executed
    • The last value measured remains on the display until it is replaced by a new measurement
    • Sample description for up to 99 samples, 2 digits, freely programmable, and is printed in the measuring protocol
    • Date and time display as standard
    • 10 sample plates included Protective working cover included with delivery
    • Application handbook: On the internet, you will find a practical application handbook containing many examples, field reports, settings and tips for each KERN moisture analyser

    KERN DBS 60-3 Moisture analyser

    Technical data

    • Readability [d]: 60 g
    • Weighing capacity [Max]: 0,001 g/0,01 %
    • Reproducibility weight of sample 2 g: 0,15%
    • Reproducibility, weight of sample 10 g: 0,02%
    • Display after drying
    • Moisture [%] = Moisture content (M) from wet weight (W): 0–100 %
    • Dry content [%] = 100–0 %
    • Dry weight (D) from W 100–0 %
    • ATRO [%] [(W-D) : D] · 100%: 0–999 %
    • Moisture content (M): Absolute value in [g]
    • Temperature range: 50 °C–200 °C in steps up to 1 °C
    • Drying modes: Standard drying, Drying in levels, Gentle drying, Rapid drying
    • Switch-off criteria
      • Automatic unrestricted switch-off (Selectable loss in weight 0,01% – 0,1% in 30 s)
      • Time controlled switch-off (1 min – 12 h)
      • Manual switch-off at the press of a button
    • Recall of measurement/ Log output: Interval can be set from 1 s – 10 min
    • Overall dimensions W×D×H: 204×336×167 mm
    • Net weight: approx. 4,6 kg
    DBS 60-3

    Data sheet

    Power Source
    220 V - 240 V AC 50 Hz
    Weighing range [Max]
    60g
    Readout [d]
    0,001g / 0,01%
    Weighing plate dimensions
    95 mm
