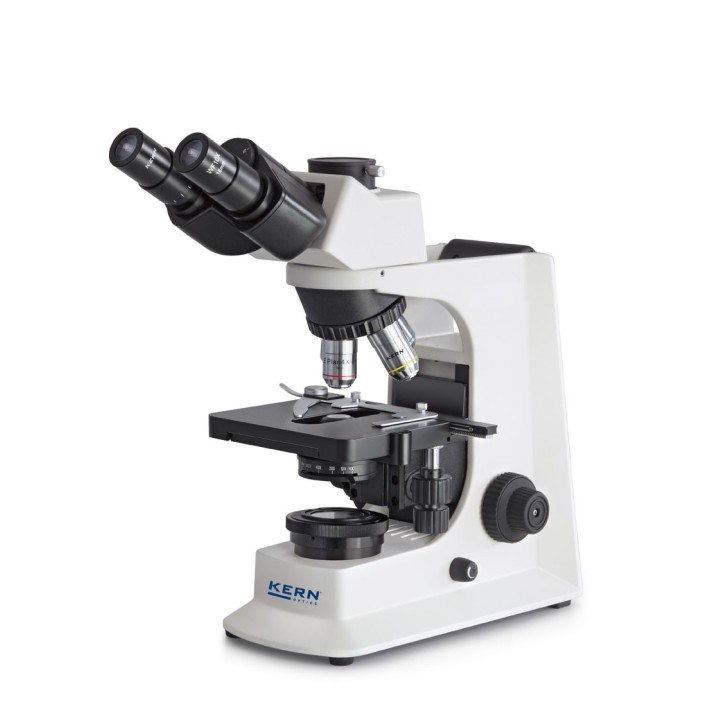

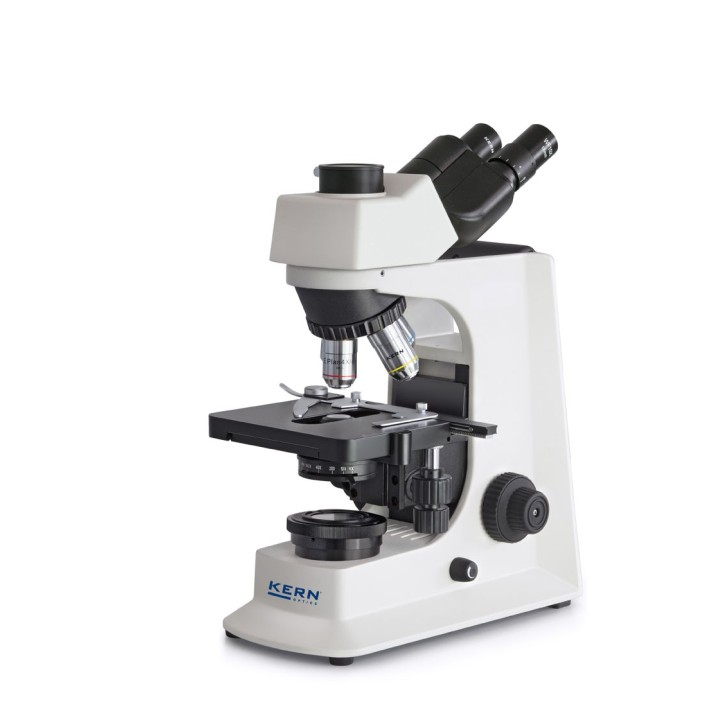

Compound microscope KERN OBL 137 LED Trinocular

• The KERN OBL-1 models are excellent and robust laboratory microscopes for all common routine applications.
• Thanks to the simple Koehler illumination, the adjustable field diaphragm and a pre-centred and height adjustable Abbe condenser with adjustable aperture diaphragm, these microscopes produce impressive images in both bright and dark field applications.
• The microscopes are equipped with wide field eyepieces, with achromatic, plan achromatic or infinity corrected E-plan objectives, depending on the model.
• These binocular microscopes are equipped with diopter adjustment.
• A trinocular head is optionally available, allowing a camera to be fitted.
• A nosepiece for up to four objectives and a large stage are provided as standard.
• The following optional accessories are available: A variety of eyepieces, objectives, a complete polarisation kit, a phase contrast unit, complete HBO and LED fluorescence kits and more.
• 20W halogen illumination and a 3W LED alternative version are available for illumination.
• One of the central features of this variable and simultaneously robust series of microscopes is the stable and precisely adjustable mechanism.

Technical data

• Eyepieces: WF 10x18 mm / WF 10x20 mm
• Infinity E-Plan objectives: 4x / 10x / 40x / 100x
• Overall dimensions WxDxH 395x200x380 mm
• Net weight approx. 6,5 kg
