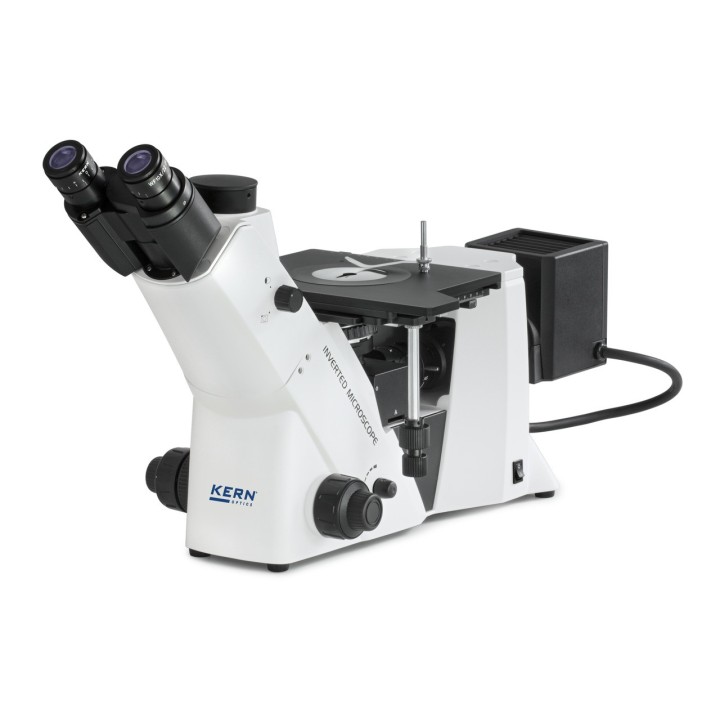

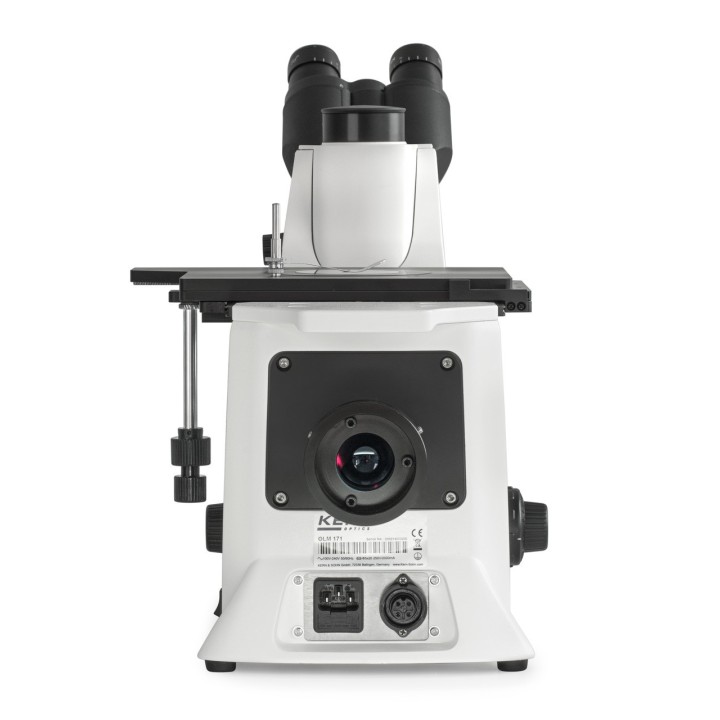

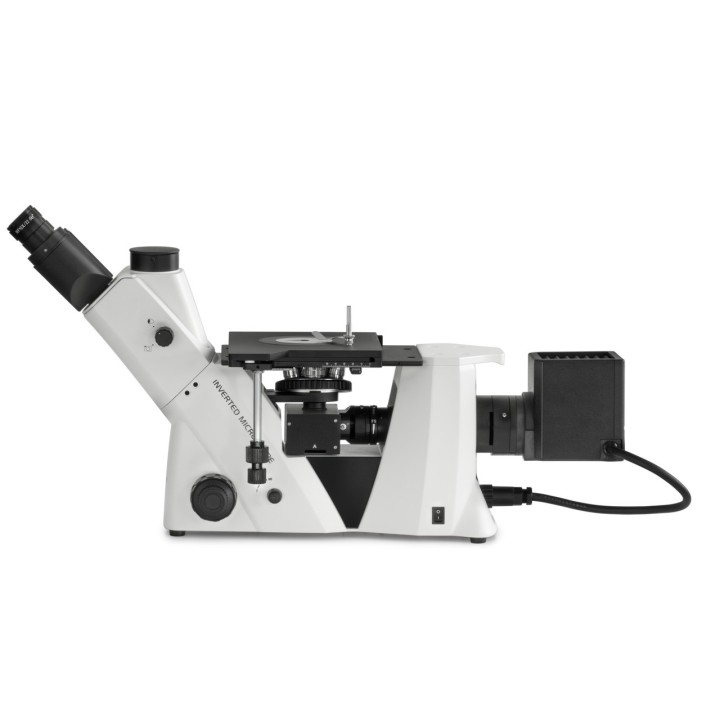

Metallurgical inverted microscope KERN OLM 171

Metallurgical inverted microscope KERN OLM 171

The inverted metallurgical microscope for professional applications

Trinocular Microscope: For the inspection with both eyes and the additional option for the connection of a camera Abbe Condenser: With high numerical aperture for the concentration and the focusing of light Halogen illumination: For pictures bright and rich in contrast Polarising unit: To polarise the light Transmitting illumination: For transparent objects Length measurement: captures the geometric dimensions of a test object or the movement during a test process. Mains part: mains part integrated in the balance. 230V/50Hz Standard type D, if requested also available in standard GB, AUS or USA. 3 years warranty

€3,780.00Save 10%
Tax excluded
3-5 days
discover visa googlewallet paypal mastercard americanexpress
  • The KERN OLM range is part of the range of inverted microscopes and stands out through its design which is ergonomic, robust and extremely stable. This range, with its large working distance is, for example, particularly suitable for surface quality testing of raw materials and finished products in industry
  • Strong and continuously adjustable 50W halogen illumination unit ensures the optimum illumination of the materials to be tested
  • As standard, the OLM range is fitted with a trinocular eyepiece tube
  • A simple polarising unit (analyser and polariser) is included with delivery
  • A large mechanical stage is included with delivery as standard. The coarse and fine focusing knob on both sides guarantees optimal adjustment and focusing
  • Further options such as, for example, a large selection of objectives can be integrated as accessories
  • A dust cover as well as user instructions are included with the delivery
  • Please find detailed information in the following model outfit list

Scope of application

  • Metallurgy, material testing, quality assurance


  • Opaque and thick samples, workpieces (surfaces, fold lines, coatings)

Technical data

  • Infinity optical system
  • Quintuple nosepiece
  • Siedentopf 30° inclined
  • Diopter adjustment: Both-sided
  • Overall dimensions W×D×H 271×379×747 mm
  • Net weight approx. 12,5 kg
OLM 171

Data sheet

12V 50W Halogen (reflecting)
Optical system
Objective quality
Infinity Plan
LWD5× / LWD10× / LWD20× / LWD50×
