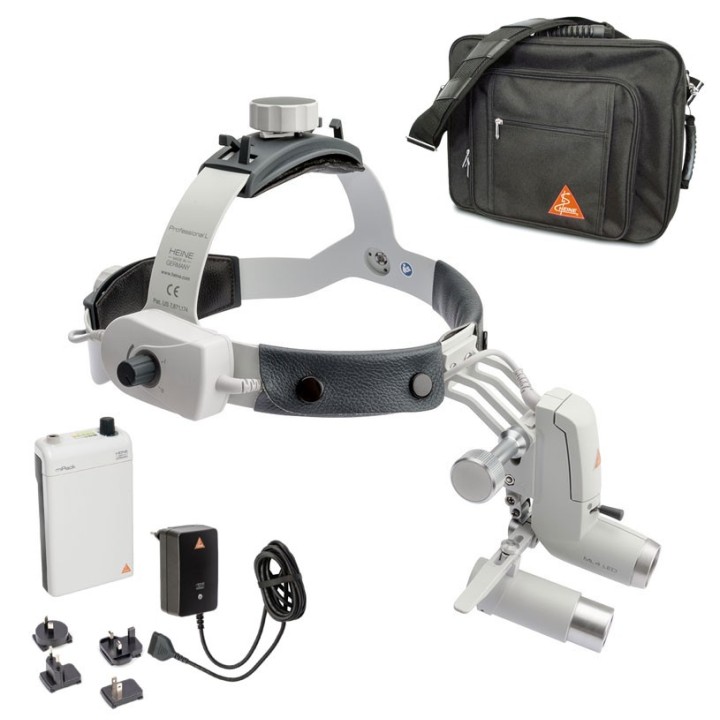

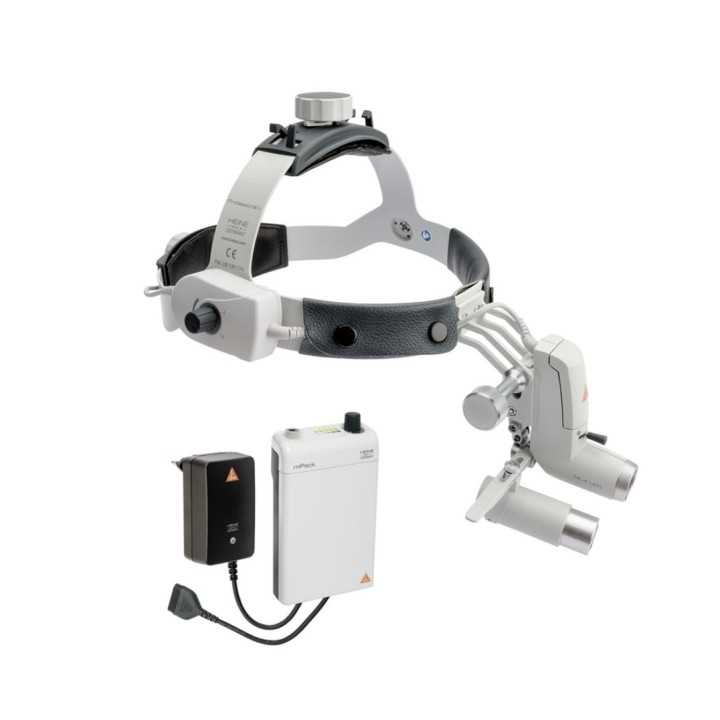

HeadLight HEINE ML4 LED Set with HRP loupes and mPack

• LED in HQ: The new standard in LED illumination defining optimal light intensity, homogeneity and colour rendering for the most accurate diagnosis. Red is red, blue is blue. Colour temperature: typ. 5500 K, Colour Rendering Index (CRI) > 90, exceptional colour rendering.
• Adjustable illumination spot size: 30 mm to 80 mm spot size range (at 420 mm working distance) to fit any examination situation.
• Bright and homogenous illumination. Absolutely bright light spot that is uniform from edge-to-edge for the perfect illumination in all examination situations.
• Stepless light intensity control. Optimal brightness setting prevents reflexes.
• Flexibility. Flexible Power Source Options: 100 % mobility with a choice of cable-free mPack UNPLUGGED head-worn battery or mPack belt-worn battery pack.
• Coaxial illumination. Coaxial design ensures a completely shadow-free image and allows for excellent illumination of difficult to see areas.
• Comfortable and secure fit. The Professional L headband has multiple adjustment points and soft padding for comfort and stability – even during long examinations.
• Optional filters. Polarisation Filter P2 improves contrast and yellow filter reduces blue light.

Technical Specification

• Illumination Typ. 90 000 Lux (at a working distance of 180 mm)
• Colour Temperature Typ. 5500 Kelvin
• LED Operating Life Typ. 50 000 hours
• Spot Adjustment 30 mm to 80 mm at 420 mm working distance
• Angle of Declination Stepless and individually adjustable for every examination Rheostat Headband-mounted
• Operating Time Typ. 8.5 hours with mPack of continuous ON time at full power

How to choose the correct Loupe

HEINE HRP high resolution prismatic binocular loupes

with i-View loupe mount

• Achromatic optics for crisp, bright images from edge-to-edge
• Lightweight (85 g)
• Water-resistant
• Independent adjustment of left and right optics for perfect PD adjustment
• Highest magnification: Choice of 3.5 x, 4 x and 6 x
• i-View loupe mount provides any angle of view and flips up the optics independently

HEINE Professional L Headband without S-GUARD

• Ideal for spectacle-wearers in combination with their own spectacles
• Fully-adjustable for height and width to fit any head
• Hygienic and comfortable leather cushions

HEINE i-View for ML4 LED HeadLight

Provides any angle of view and flips up the optics independently of the illumination beam.

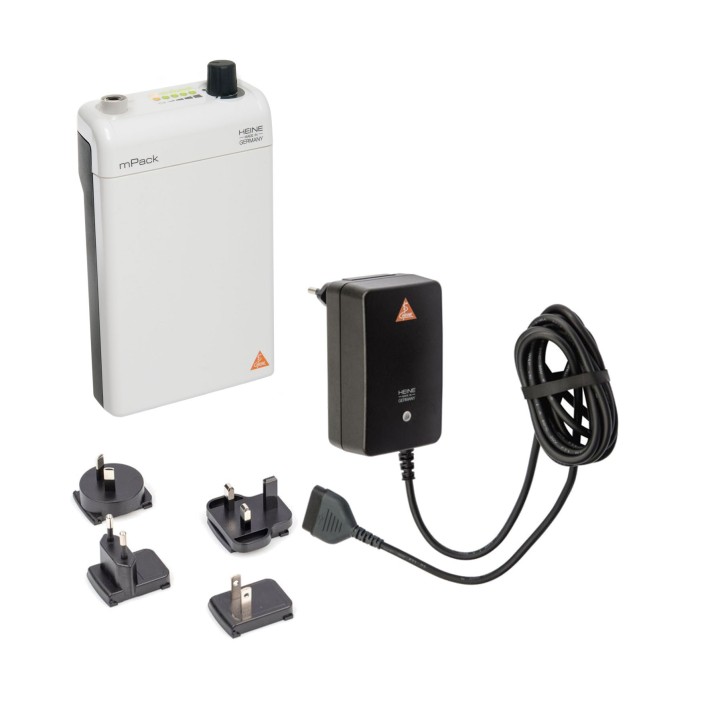

HEINE mPack

Portable power pack for ML4 HeadLight

• Freedom from cables that tie the user to desk, wall or static power supplies
• Triple the capacity with Li-ion technology. Compared with current NiCd systems. When fully charged at least 3 x the capacity of conventional NiCd systems. More than double of other Li-ion systems. No memory effect
• Fast charge. Charges to full capacity in typ. 2 hours
• Charge status indicator. Always lets you know how much operating charge you have left
• Operating time: typ. 8.5 hours for ML4 LED HeadLight, typ. 13 hours for OMEGA 500
• Flexible charging options. Charge in the EN 50 charger base station, or with mobile plug-in transformer
• Intelligent. Automatically switches to “charge” mode when inserted in EN 50. Can also be used as mains power supply even while in “charge” mode
• Automatic remote power adjustment for compatibility with all HEINE 6 V and selected LED instruments
• Stepless light intensity control 0.5 – 100 %. Optimum brightness Setting prevents reflexes
• 100 – 240 V compatible transformer incl. 4 plugs for world wide compatibility (EU, UK, US, AU)
