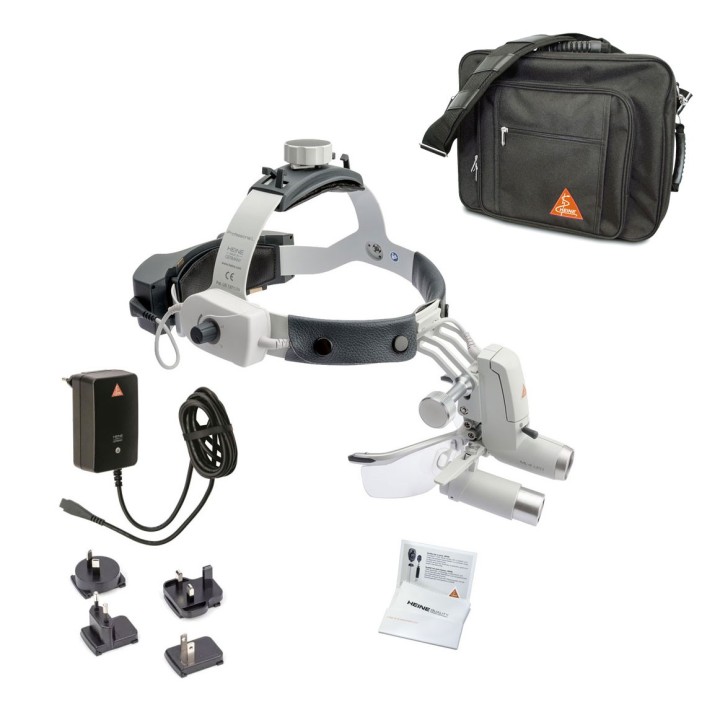

HeadLight HEINE ML4 LED wireless Set with HRP loupes and S-GUARD

• LED in HQ: The new standard in LED illumination defining optimal light intensity, homogeneity and colour rendering for the most accurate diagnosis. Red is red, blue is blue. Colour temperature: typ. 5500 K, Colour Rendering Index (CRI) > 90, exceptional colour rendering.
• Adjustable illumination spot size: 30 mm to 80 mm spot size range (at 420 mm working distance) to fit any examination situation.
• Bright and homogenous illumination. Absolutely bright light spot that is uniform from edge-to-edge for the perfect illumination in all examination situations.
• Stepless light intensity control. Optimal brightness setting prevents reflexes.
• Flexibility. Flexible Power Source Options: 100 % mobility with a choice of cable-free mPack UNPLUGGED head-worn battery or mPack belt-worn battery pack.
• Coaxial illumination. Coaxial design ensures a completely shadow-free image and allows for excellent illumination of difficult to see areas.
• Comfortable and secure fit. The Professional L headband has multiple adjustment points and soft padding for comfort and stability – even during long examinations.
• Optional filters. Polarisation Filter P 2 improves contrast and yellow filter reduces blue light.

Technical Specification

• Illumination Typ. 90 000 Lux (at a working distance of 180 mm)
• Colour Temperature Typ. 5500 Kelvin
• LED Operating Life Typ. 50 000 hours
• Spot Adjustment 30 mm to 80 mm at 420 mm working distance
• Angle of Declination Stepless and individually adjustable for every examination Rheostat Headband-mounted
• Operating Time Typ. 8.5 hours with mPack and typ. 3.5 hours with mPack UNPLUGGED of continuous ON time at full power

How to choose the correct Loupe

HEINE HRP High Resolution Prismatic Binocular Loupes

with i-View loupe mount

• Achromatic optics for crisp, bright images from edge-to-edge.
• Lightweight (85 g).
• Water-resistant.
• Independent adjustment of left and right optics for perfect PD adjustment.
• Highest magnification: Choice of 3.5 x, 4 x and 6 x.
• i-View loupe mount provides any angle of view and flips up the optics independently

HEINE Professional L Headband with S-GUARD

• S-GUARD splash protection. Rapid and simple symmetric adjustment of binocular loupes with splash protection by protective lenses.
• Ergonomic nose pad for comfort during long procedures.
• Fully-adjustable for height and width to fit any head.
• Hygienic and comfortable leather cushions.
• Optional clip-in correction frame for prescription lenses.

HEINE i-View for ML4 LED HeadLight

Provides any angle of view and flips up the optics independently of the illumination beam.

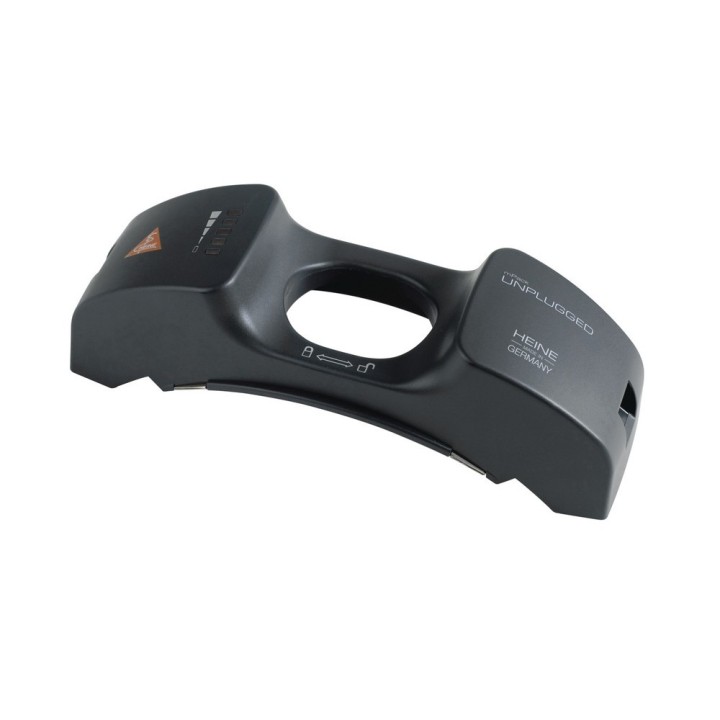

HEINE mPack UNPLUGGED

Headband-mounted rechargeable battery

• Rechargeable battery for ML4 LED HeadLight UNPLUGGED (System voltage 6 V).
• Lightweight with balanced weight distribution. High level of comfort.
• Charge status indicator. Display of remaining operating time.
• Can be recharged by wall- or plug-in transformer.
• Direct operation possible while charging through the use of the mobile plug-in transformer.
• Charging time: typ. 2 hours.
• Operating time: typ. 3.5 hours for ML4 LED HeadLight
• Intelligent charging system. Automatic changeover from operating to charging mode (in the wall unit).
• Top safety standards. Integrated charge and performance checks during operation.
• Lithium polymer technology. UL-compliant.
• Registered Design.
