HEINE ML4 LED HeadLight Kit 11 with Binocular Loupes HR 2.5x/520

Name: HEINE ML4 LED HeadLight Kit 11 with Binocular Loupes HR 2.5x/520
Brand: HEINE
SKU: J-008.31.450C
Price: 2859 EUR
Availability: InStock

Brand : HEINE

Reference : J-008.31.450C

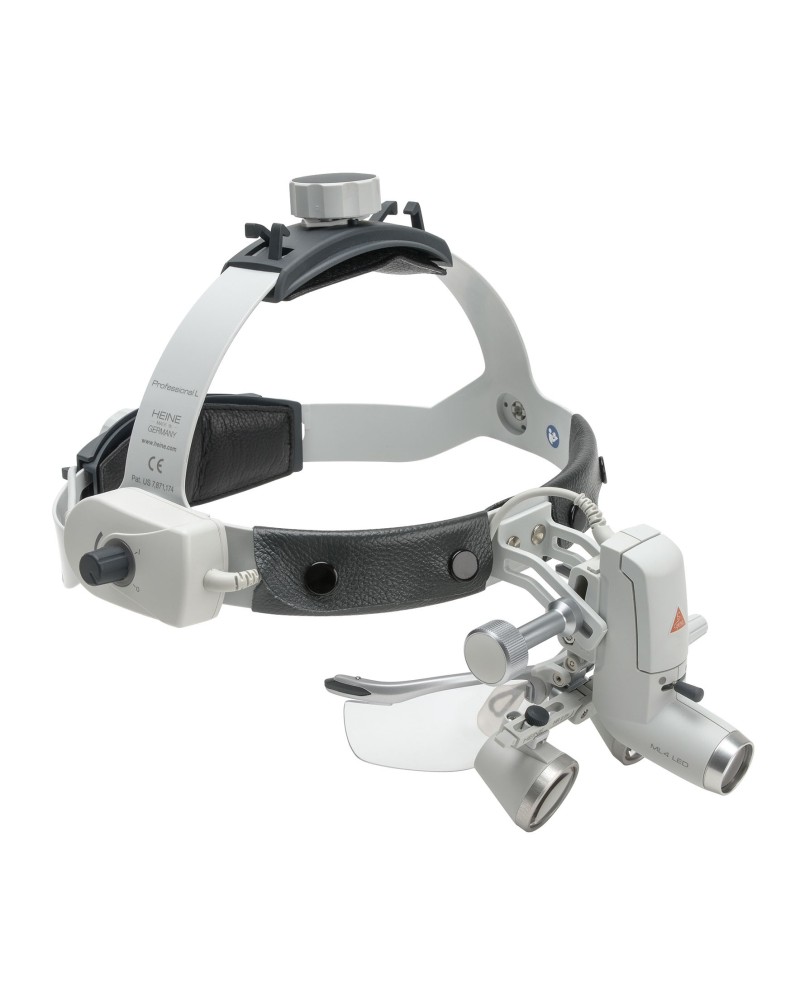

The following Kit 11 contain:

HEINE ML4 LED HeadLight
HEINE HR 2.5x Binocular Loupes with i-View
HEINE Professional L Headband with S-GUARD
HEINE mPack with plug-in transformer

HEINE HR 2.5x Specifications

Working distance	Field of view	Depth of field
340 mm (13")	90 mm (3.5")	110 mm (4.3")
420 mm (16")	130 mm (5")	180 mm (7")
520 mm (20")	180 mm (7")	260 mm (10")

Hurry! only 8 items left in stock.

€2,859.00

Tax excluded

Quantity

Add to Compare

Add to Wishlist

Guarantee safe checkout

HEINE ML4 LED HeadLight Kit 11 with Binocular Loupes HR 2.5x/520

The ML4 LED HeadLight is optionally supplied with HR Binocular Loupes incl. i-View loupe mount and with or without S-GUARD. The binocular loupe is fully adjustable for every examiner and for every examination axis.

HEINE S-GUARD: Rapid and simple symmetric adjustment of binocular loupes with splash protection by protective lenses.

HEINE i-View for ML4 LED HeadLight: Provides any angle of view and flips up the optics independently of the illumination beam.

Comfortable and secure fit
Flexible Power Source Options
Adjustable spot size

HEINE HR 2.5X Binocular Loupes

with i-View loupe mount

HR 2.5x Binocular Loupes with i-View Achromatic optics for crisp, bright images with colour-correction. Lightweight (51 g). Water-resistant. Independent adjustment of left and right optics for perfect PD adjustment.

High magnification with a large field of view and excellent depth of field. i-View loupe mount provides any angle of view and flips up the optics independently of the optional LED LoupeLight.

Crisp, High-Resolution Image
Unique i-View Loupe Mount
Exceptional Focal Range
Multi-coated Achromatic Optics

How to choose the correct Loupe

HEINE ML4 LED HeadLight

Compact, ergonomic design without compromises.

Compact, ergonomic design without compromises. The HEINE ML4 LED Headlight combines illumination in LED-HQ with optimum wearing comfort. It provides homogeneous illumination with anabsolutely bright light spot that is uniform from edge-to-edge for the demanding tasks of a busy practiceand the most accurate diagnosis in every examination situation. Individual adjustment options suchas the adjustment of the viewing angle over a wide range and practical features such as the cable-freebattery form a perfectly matched system.

Technical Specification

Illumination Typ. 90,000 Lux (measured at a working distance of 180 mm from the light emission to the object)
Colour Temperature Typ. 5,500 Kelvin
LED Operating Life Typ. 50,000 hours
Spot Adjustment 30 mm to 80 mm at 420 mm working distance
Angle of Declination Stepless and individually adjustable for every examination
Rheostat Headband-mounted
Operating Time Typ. 8.5 hours with mPack and typ. 3.5 hours with mPack UNPLUGGED of continuous ON time at full power

HEINE mPack

Portable Power Pack for HEINE ML4 LED HeadLight

Freedom from cables that tie the user to desk, wall or static power supplies.
Triple the Capacity with Li-ion Technology. Compared with current NiCd systems. When fully charged at least 3 x the capacity of conventional NiCd systems. More than double of other Li-ion systems. No memory effect.
Fast Charge. Charges to full capacity in typ. 2 hours.
Charge status indicator. Always lets you know how much operating charge you have left.
Operating time: typ. 8.5 hours for HEINE ML4 LED HeadLight
Flexible Charging Options. Charge in the EN 50 Charger base station, or with mobile plug-in transformer.
Intelligent. Automatically switches to “charge” mode when inserted in EN 50.
Can also be used as mains power supply even while in “charge” mode.
Automatic remote power adjustment for compatibility with all HEINE 6 V and selected LED instruments.
Stepless light intensity control 0.5 – 100 %. Optimum brightness setting prevents reflexes.
100 – 240 V Compatible Transformer incl. 4 plugs for world wide compatibility.

Reference : J-008.31.450C

Hurry! only 8 items left in stock.

Data sheet

Power Source: mPack and plug-in transformer
Light Source: LED
Illumination: 90 000 lux at a working distance of 180 mm
Colour temperature: 5 500 K
Magnification: 2.5x
Working distance: 520 mm (20")
Field of view: 180 mm (7")
Depth of field: 260 mm (10")
Mounting options: Professional L Headband
Duration of Guarantee: 5 years

Download

HEINE Headlights and Loupes

Download (1.34MB)
