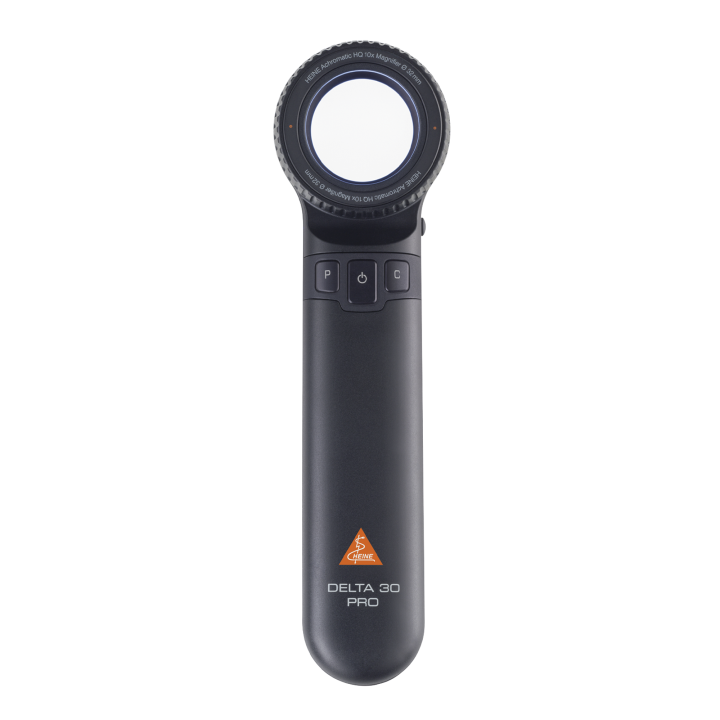

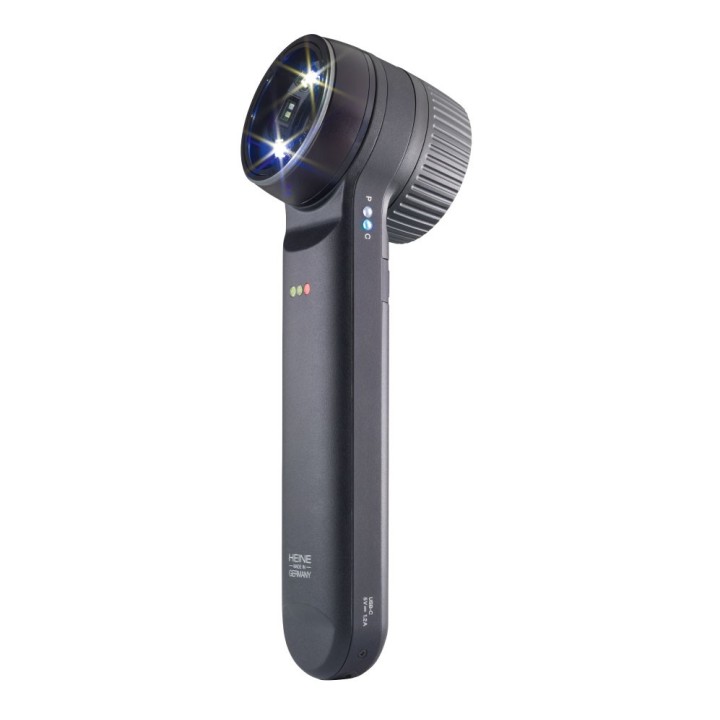

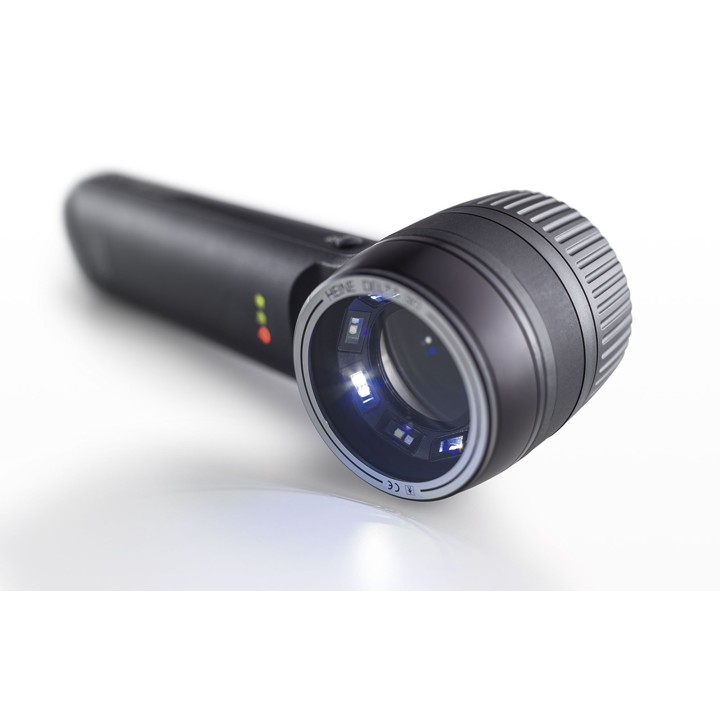

HEINE DELTA 30 PRO Dermatoscope

High-end dermoscopy for the most demanding professional applications

The HEINE DELTA 30 PRO Dermatoscope represents the top model within the HEINE DELTA family. It is designed for dermatologists and medical professionals who expect the highest standards of image quality, spatial perception, colour differentiation and examination comfort in everyday dermoscopy.

The PRO model builds on the successful concept of the DELTA 30 while adding two major technologies: an advanced directional LEDHQ arrangement for enhanced depth perception and HEINE colorSHIFT with four selectable colour temperature settings.

This gives the HEINE premium dermatoscope range a clear hierarchy:

DELTAone → compact & mobile

DELTA 30 → large field of view & high examination comfort

DELTA 30 PRO → advanced high-end imaging & individually adjustable illumination

Enhanced spatial perception of skin lesions

Directional LEDHQ illumination for improved depth visualisation

One of the most important differences between the DELTA 30 PRO and the standard DELTA 30 lies in the arrangement of the illumination system.

In the DELTA 30 PRO, the LEDHQ elements are angled and specifically arranged to direct light into deeper layers of the skin. This creates a more pronounced spatial impression of the structures being examined.

Instead of focusing solely on colour, pigmentation and individual dermoscopic structures, the DELTA 30 PRO is designed to provide a more three-dimensional perception of the lesion.

For experienced dermoscopy users, this represents one of the key reasons to choose the PRO model.

HEINE colorSHIFT

Four colour temperatures for individual viewing preferences

A defining feature of the DELTA 30 PRO is HEINE colorSHIFT.

This technology allows the colour temperature of the illumination to be adjusted in four steps:

• warm white;
• neutral white;
• cool white;
• bluish white.

This allows users to adapt the illumination characteristics to their personal viewing preferences and the individual examination situation.

This can be particularly valuable for experienced dermatologists who have developed specific visual preferences through years of working with different dermatoscopes.

Rather than requiring the user to adapt to one fixed light characteristic, colorSHIFT allows the illumination to be adapted to the user.

Large 30 mm field of view

Like the standard DELTA 30, the DELTA 30 PRO features a particularly large optical system.

Its 32 mm lens provides a true field of view of 30 mm in diameter.

This combines detailed observation with an excellent overview of the examined skin area.

For professionals performing numerous dermoscopic examinations every day, the large field of view is particularly beneficial because the instrument needs to be repositioned less frequently.

High-precision optical system

Crystal-clear imaging at different viewing distances

The DELTA 30 PRO is designed to accommodate different individual working styles.

Its precision optical system provides a sharp and clear image at both shorter and longer viewing distances between the eye and the eyepiece.

The examiner therefore has greater flexibility in choosing a comfortable viewing position.

This is particularly relevant during intensive everyday use, as different users naturally prefer different ergonomic working distances.

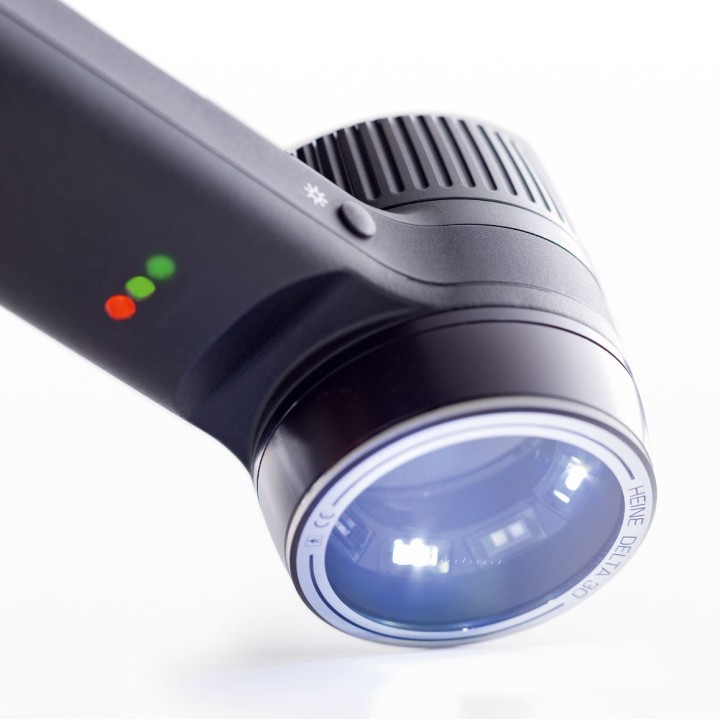

HEINE LEDHQ

Premium illumination for professional dermoscopy

The DELTA 30 PRO combines its advanced illumination geometry with HEINE LEDHQ technology.

In dermoscopy, accurate visualisation of subtle colour differences and structures is essential. High-quality, homogeneous illumination and natural colour rendering therefore form an important part of the complete optical system.

With the DELTA 30 PRO, LEDHQ is not simply used as a light source. Its arrangement is an integral part of the advanced imaging concept.

Polarised and non-polarised light

The HEINE DELTA 30 PRO supports examination with polarised and non-polarised illumination.

Both modes provide different views of the skin structures being examined.

Polarised illumination reduces disturbing reflections from the skin surface and supports the observation of subsurface structures and patterns.

Non-polarised illumination complements the examination by providing additional information about more superficial structures.

The same lesion can therefore be assessed under different illumination conditions.

HEINE Toggle Function

Switch illumination modes at the touch of a button

The HEINE Toggle Function allows the examiner to switch directly between polarised and non-polarised light.

There is no need to change attachments or reconfigure the dermatoscope.

This creates a fast and intuitive examination sequence:

Polarised → Toggle → Non-polarised → Compare

For professionals performing many examinations every day, this quick switching capability can make the dermoscopic workflow particularly efficient.

HEINE diSTANCE working ring

Non-contact examination at a defined working distance

A particularly interesting accessory for the DELTA 30 PRO is the HEINE diSTANCE working ring.

The stable working ring maintains a defined distance between the dermatoscope and the skin, allowing magnified examination without direct contact between the dermatoscope and the lesion.

Openings in the ring also provide access for additional instruments.

This can be useful when:

• marking a lesion;
• manipulating a skin lesion during observation;
• removing small foreign bodies;
• using additional instruments;
• examining without direct dermatoscope-to-skin contact.

The diSTANCE working ring therefore extends the DELTA 30 PRO beyond conventional observation by providing a practical working area under magnification.

Contact dermoscopy with integrated scale

For conventional contact dermoscopy, the DELTA 30 PRO can be used with the appropriate HEINE contact plate with integrated scale.

Direct contact provides stable positioning during examination, while the integrated scale offers a visual reference for assessing the dimensions of a lesion.

Depending on the examination technique, an appropriate contact or immersion medium can also be used.

Small contact plate for difficult-to-access areas

A small contact plate is also available for the DELTA 30 PRO.

It is particularly useful for examining anatomically difficult-to-access areas such as:

• between the fingers;
• between the toes;
• within skin folds;
• small anatomical regions;
• difficult-to-reach lesions.

This gives the large DELTA 30 PRO additional flexibility for specialised examination situations.

Ergonomic design

Developed for intensive everyday use

The DELTA 30 PRO features the characteristic angled ergonomic design of the larger HEINE DELTA instruments.

Its shape facilitates comfortable positioning during examination and is particularly beneficial for dermatologists performing numerous consecutive dermoscopic examinations.

For a professional dermatoscope intended for intensive daily use, ergonomics are not merely a convenience. They form an important part of the overall instrument concept.

Individual focus adjustment

The DELTA 30 PRO provides individual focus adjustment directly at the eyepiece.

A scale indicates the selected focus position, making preferred settings easier to reproduce.

This can be particularly useful:

• when several physicians share the same dermatoscope;
• in hospitals and group practices;
• when switching between users;
• when using the instrument with a camera or smartphone.

The ability to reproduce a preferred setting supports an efficient professional workflow.

Digital dermoscopy with a smartphone

High-end optics combined with digital documentation

The DELTA 30 PRO can be connected to compatible smartphones using the HEINE Universal Smartphone Adapter mag.

This allows the high-end optical dermatoscope to be integrated into a digital workflow whenever required:

DELTA 30 PRO → Universal Smartphone Adapter → Smartphone → Dermoscopic Image → Documentation

The modular concept is particularly practical because the DELTA 30 PRO remains a completely independent optical dermatoscope.

Digital imaging is added only when it is needed.

Digital documentation and follow-up

Dermoscopic images can be captured with a compatible smartphone directly during examination.

This can support:

• photographic documentation of lesions;
• follow-up examinations;
• comparison of previous and current images;
• structured medical documentation;
• professional exchange;
• obtaining a second opinion;
• education and training.

Digital imaging therefore complements rather than replaces conventional optical dermoscopy.

HEINE DERM App

Structured documentation of dermoscopic images

The smartphone-based workflow can also be combined with the HEINE DERM App for structured digital documentation.

A typical workflow can therefore look like this:

Examination → Image Capture → Body Location → Documentation → Follow-up → Comparison

This is particularly relevant for lesions that need to be monitored over time, where consistent photographic documentation can complement the clinical examination.

Designed for professional durability

The DELTA 30 PRO is not only focused on optical performance.

HEINE uses an aluminium frame and glass lenses, while the materials are designed with regular professional cleaning and disinfection in mind.

The overall construction is intended for intensive daily use in dermatology practices, clinics and other professional medical environments.

This is important when evaluating a premium dermatoscope: image quality matters, but so do durability, hygiene and long-term usability.

HEINE DELTA 30 PRO or DELTA 30?

At first glance, the two instruments are closely related. Both offer the large 30 mm viewing concept, professional HEINE optics, LEDHQ and switchable polarisation.

The decisive difference is the advanced imaging technology of the PRO model.

The reason to choose the DELTA 30 PRO is therefore not a larger field of view – both models provide 30 mm.

The additional value of the PRO lies in its advanced illumination and imaging concept, particularly enhanced spatial perception and the ability to select different colour temperatures with colorSHIFT.

DELTA 30 PRO, DELTA 30 or DELTAone?

The three premium HEINE dermatoscopes can be clearly differentiated according to their intended use.

This creates a logical choice depending on the user's priorities:

Maximum mobility → DELTAone

Large field of view and premium everyday dermoscopy → DELTA 30

Most advanced HEINE imaging concept → DELTA 30 PRO

Who is the HEINE DELTA 30 PRO suitable for?

The DELTA 30 PRO is particularly suitable for:

• dermatologists;
• specialist dermatology practices;
• dermatology clinics;
• hospitals;
• medical facilities with a high examination frequency;
• experienced dermoscopy users;
• professionals with particularly high expectations of image quality;
• users integrating digital image documentation into their workflow.

The PRO model is especially attractive for professionals who want more than a large field of view and wish to make active use of advanced illumination, selectable colour temperature and enhanced spatial visualisation.

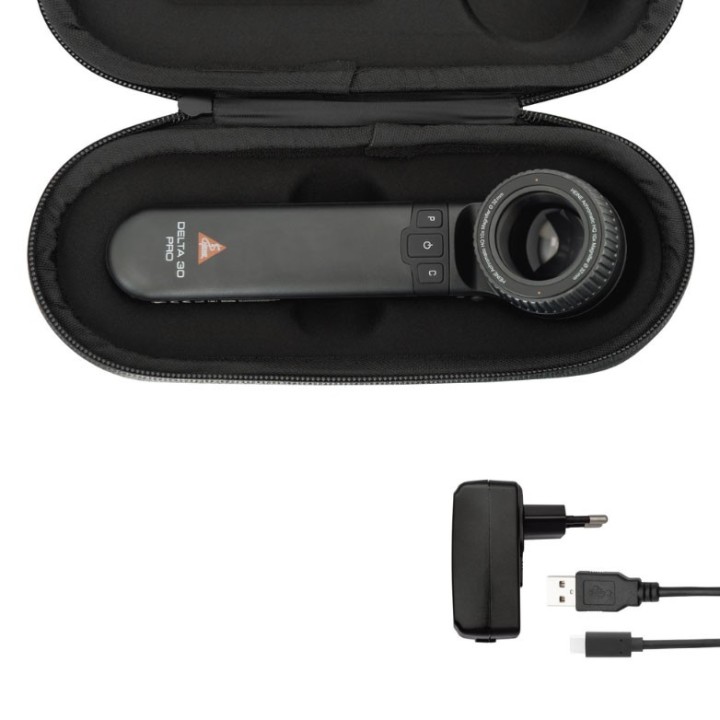

Accessories for the HEINE DELTA 30 PRO

A comprehensive range of accessories is available for the DELTA 30 PRO, including:

• HEINE contact plate with scale;
• small contact plate;
• HEINE diSTANCE working ring;
• HEINE Universal Smartphone Adapter mag;
• HEINE Charger 30 table charging station;
• charging accessories;
• case and protective accessories.

Compatible components can be found in our Dermatoscope Accessories category.

Frequently asked questions about the HEINE DELTA 30 PRO

How large is the field of view of the DELTA 30 PRO?

The DELTA 30 PRO features a 32 mm lens and provides a true field of view of 30 mm in diameter.

What is HEINE colorSHIFT?

HEINE colorSHIFT allows the illumination colour temperature to be adjusted in four settings, ranging from warm white to bluish white. This allows the light characteristics to be adapted to individual viewing preferences and examination situations.

What is the main difference between DELTA 30 PRO and DELTA 30?

The key difference lies in the advanced directional LEDHQ arrangement and colorSHIFT. The PRO model is designed to provide enhanced spatial perception of lesions and allows the user to select between four colour temperatures.

Does the DELTA 30 PRO provide polarised light?

Yes. The DELTA 30 PRO supports polarised and non-polarised illumination. The Toggle Function allows the user to switch between the two modes.

Can the DELTA 30 PRO be used for non-contact examination?

Yes. The optional HEINE diSTANCE working ring supports non-contact examination while maintaining a defined distance between the dermatoscope and the skin.

Can the DELTA 30 PRO be connected to a smartphone?

Yes. The HEINE Universal Smartphone Adapter mag allows the DELTA 30 PRO to be combined with compatible smartphones for digital image capture and documentation.

Do I need a smartphone to use the DELTA 30 PRO?

No. The DELTA 30 PRO is a fully functional optical dermatoscope. Smartphone connectivity is an optional extension for digital imaging and documentation.

Is the DELTA 30 PRO better than the DELTA 30?

The DELTA 30 PRO provides additional high-end imaging functions, particularly its advanced LEDHQ arrangement and colorSHIFT. For professionals who do not require these additional functions, the DELTA 30 remains an excellent premium dermatoscope with the same large 30 mm field of view.

Is the DELTA 30 PRO suitable for intensive everyday use?

Yes. Its ergonomic design, robust construction and professional materials are intended for regular use in dermatology practices, clinics and other medical environments.

HEINE DELTA 30 PRO at V-MEDTECH

The HEINE DELTA 30 PRO Dermatoscope is the premium choice for professionals looking for the most advanced imaging concept within the HEINE DELTA family.

The large 30 mm field of view provides an excellent overview. The advanced directional LEDHQ arrangement enhances spatial perception of skin lesions, while HEINE colorSHIFT allows the illumination to be adapted using four selectable colour temperatures. Toggle Function, contact and non-contact examination and optional smartphone connectivity complete the professional concept.

Its position within the range is therefore clear:

DELTAone → compact & mobile

DELTA 30 → large field of view & premium comfort

DELTA 30 PRO → advanced imaging & high-end dermoscopy

For dermatology specialists who use dermoscopy intensively and want HEINE's most advanced DELTA imaging technology, the HEINE DELTA 30 PRO is our premium recommendation within the DELTA range.
