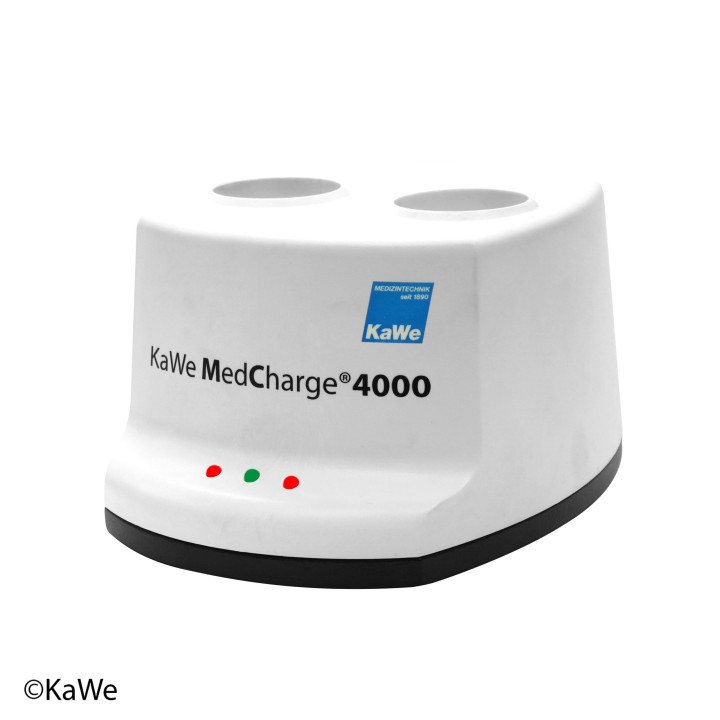

KaWe MedCharge® 4000 is the charging station for the KaWe EUROLIGHT®, KaWe COMBILIGHT®, and the laryngoscope product lines metal handles in small (AA) and medium (C) models, with the exception of the Economy, LED 2.5 V and plug-in charging handles. The operation time of a medium-sized rechargeable batteries is approximately 3 hours, whereas the smaller models last approx. 2 hours. This is however, dependent on the type of bulb used.
- charging station
- for charging handles 2.5 V / 3.5 V
- intelligent electronics control
- with universal power plug
ALL in ONE: EU 240 V, GB 240 V, US 110 V - 2 adapter sleeves for (AA) handles
- incl. wall-mounted holder
Performance characteristics:
- input voltage: 100V - 240V +/- 10%, 50 - 60 Hz
- max. power: 1.2 A
- efficiency factor: 90 - 93 %
- chargeable capacity: min. 250 mAh, max. 4500 mAh
- input voltage charging station: 9 VDC +/- 10 %
- output voltage in stand-by: < 9 VDC
- rated output voltage: 2x 3.6 VDC
- rated charging current: 2x 250 mA +/- 10 %
- charge end power: 10 - 30 mA for Li-Ion
- electric strength: 4 kV
- protection class: II
- operating temperature: 0° C - +40° C
- storage temperature: -25° C - +70° C
