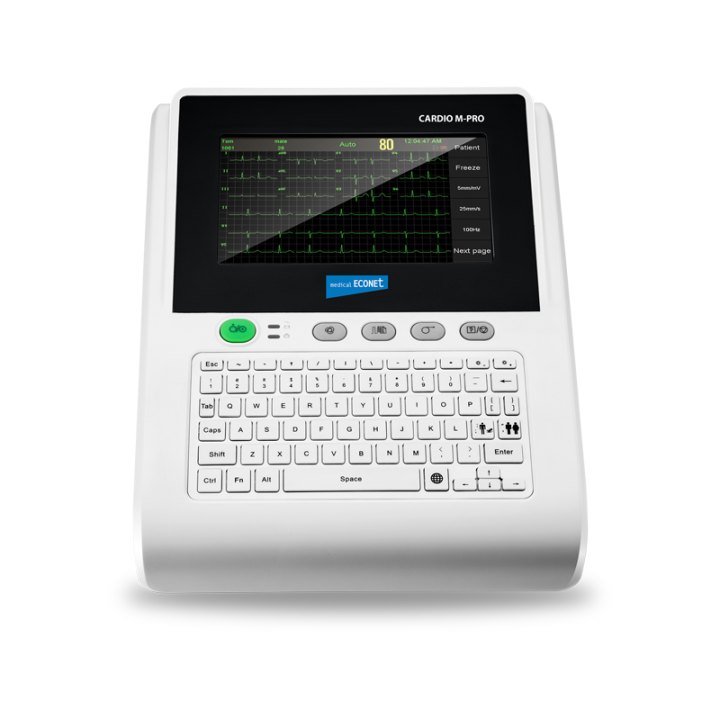

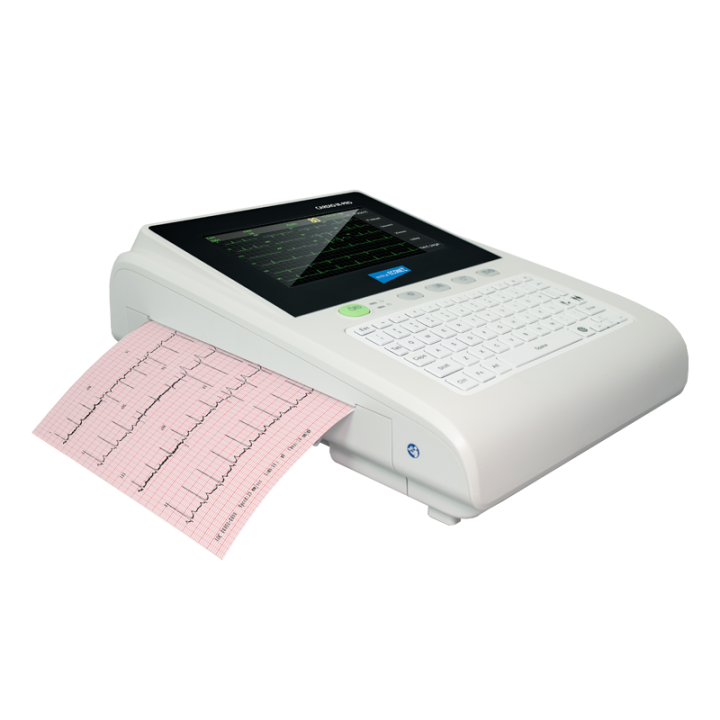

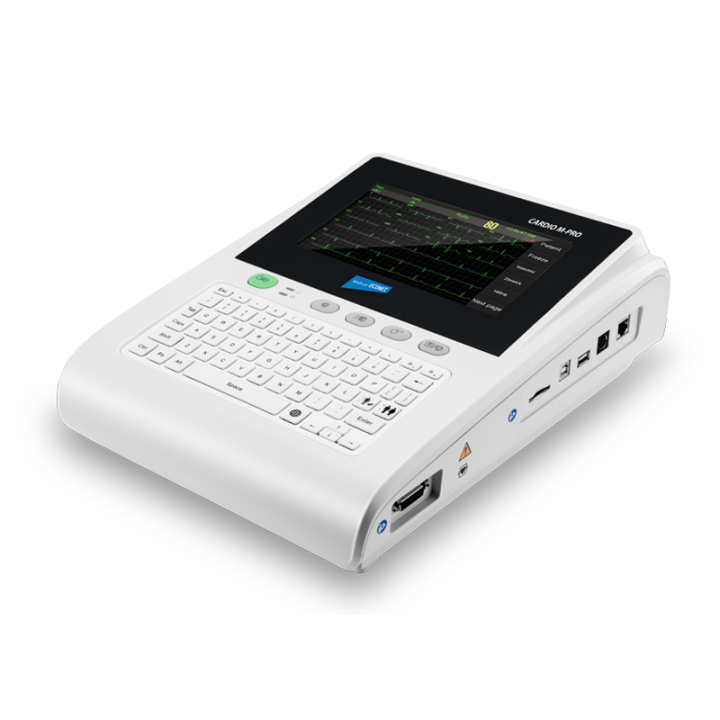

ECG Device CARDIO M-PRO
ECG Device CARDIO M-PRO
ECG Device CARDIO M-PRO

ECG Device CARDIO M-PRO

medical ECONET Germany
€1,699.00
Tax excluded

  • 12, 6 and 3 channel resting ECG
  • 8" LCD color touch screen
  • Write-out of all 12 channels among each other or in packages (2x6, 3x4)
  • Clearly arranged, high printout in DIN A4 format
  • Printout of rhythm derivarion for 3- and 6-channel settings
  • Manual ECG monitoring or 10 seconds memory ECG for interpretation
  • Automatic interpretation recommendation
  • Interpretation function distinguishes between 25 diagnostic cases based on Minnesota protocol
Share

Dimensions: 360 x 276 x 130 mm (WxHxD) approx. 4,2 kg

Touch screen: 800 x 480 pixels

Measurement parameters: HF, PR Interval, Duration of QRS-complex, QT/QTC, electrical R/QRS/T-axis, RV5/SVI amplitude

Battery: Lithium-ion - Approx. 5 gours runtime when fully charged or up to 500 printed ECG reports in automatic mode

Connection: 1x SD card / 2x USB / 1x RJ-45 (network)

Included are:

  • ECG patient cable
  • Power cord
  • 6x chest wall suction electrodes
  • 4x extremity clamb electrodes
  • Manual
  • Paper
  • ECG gel

  • Brand
  • Reference
    30.11-2300
