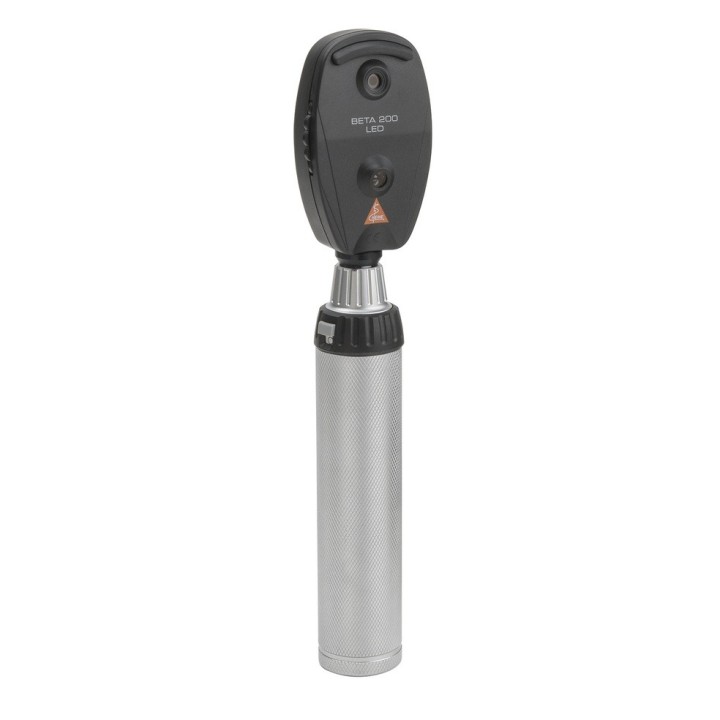

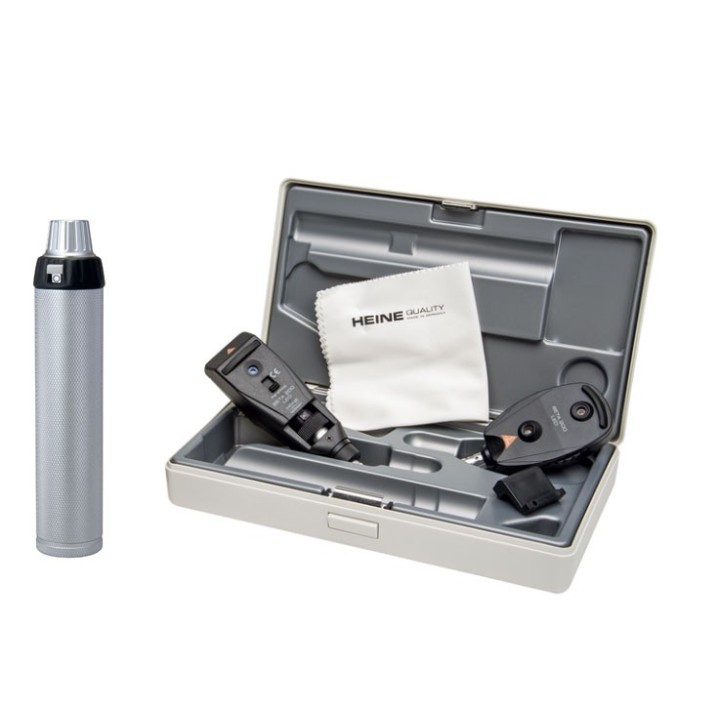

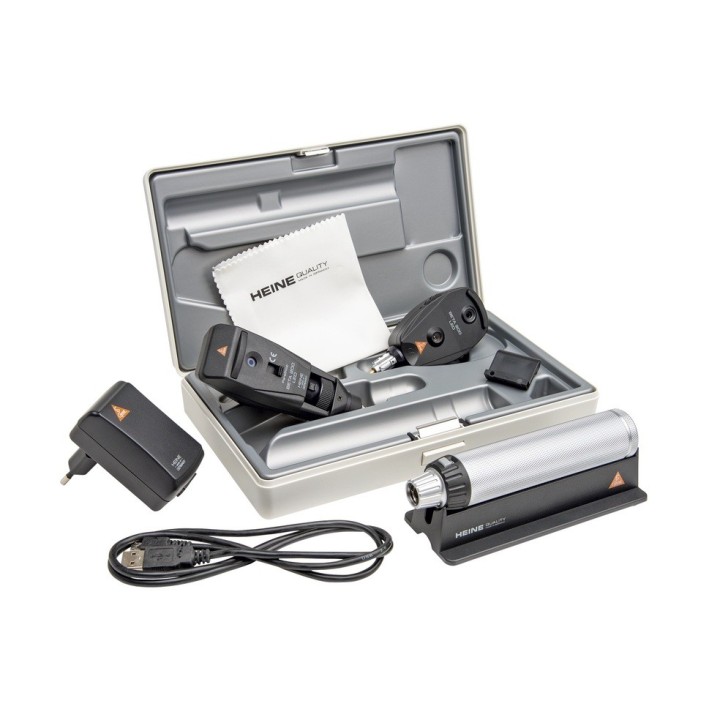

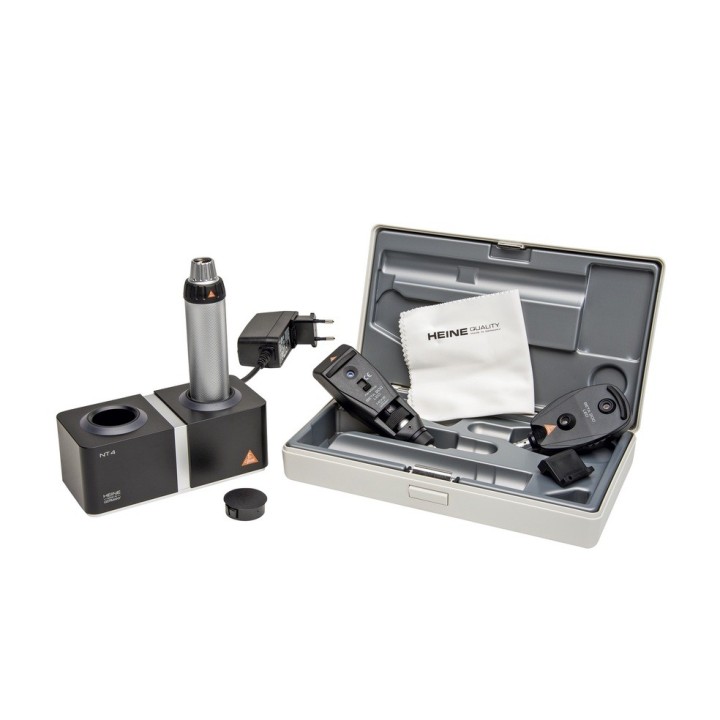

HEINE BETA 200 LED Ophthalmic Diagnostic Set

• Unique optical system. HEINE optimizes the Gullstrand principle with aspherical optics (separation of illumination and observation beam). Corneal and iris reflexes are eliminated, (see illustration below). A full view is guaranteed even with small pupils.
• LED-HQ Technology. Bright, white light.
• Recessed, multi-coated viewing window. Avoids stray light.
• Dustproof housing. Maintenance-free.
• Optics mounted on precision metal chassis. Durable, precise.
• Ergonomic shape. Instrument fits the orbita comfortably in any position.
• Soft orbital support. Protects the users' glasses and steadies the instrument.
• 6 apertures with separate red-free filter. Suitable for large or small pupils. Incorporates slit aperture, fixation star, cobalt blue filter and red-free filter for improved contrast.
• Lens range: Perfect focus even with high refractive errors.

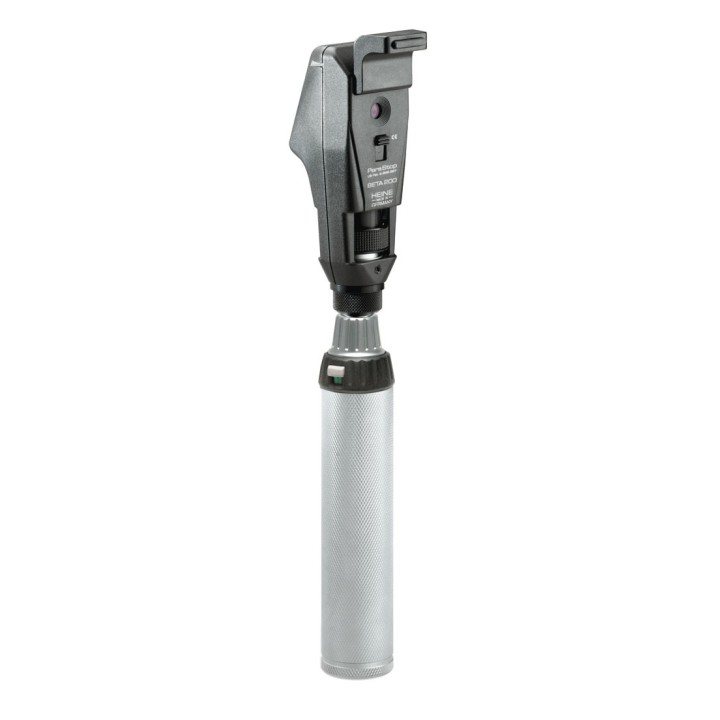

HEINE BETA 200 LED retinoscope with HEINE ParaStop®

Quick and easy observation of the fundus reflex

Hand-held retinoscope for objective refraction with totally even LEDHQ Illumination for a precise streak. Enables quick and easy recognition of the fundus reflex.

• Reliable measurement of the eye’s refraction
• Precise adjustment of the parallel beam path due to ParaStop
• Very bright and clearly visible fundus reflex due to a very bright, precise streak with a line width of typically 1.1mm (ISO 12865 standard < 1.5mm) and a line length of 35mm
• Particularly bright and even light due to LEDHQ
• Patented and exclusive continuous dimmability between 3 and 100%
• Polarisation filter eliminates stray light and internal reflections
• Minimised light leaks due to good eye socket coverage
• Exceptional durability due to metal controls
• Maintenance-free and dustproof
• LEDHQ with virtually unlimited working life
• 5-year guarantee
• Practical one-finger operation
• Convenient thumb operation with a single control for vergence and line rotation
• Holder for fixation cards for dynamic retinoscopy (optional)
