Analytical balance KERN ABT 220-4NM


Analytical balance KERN ABT 220-4NM

KERN
ABT 220-4NM

Internal adjusting (CAL): Quick setting of the balance's accuracy with internal adjusting weight (motordriven). Data interface RS-232: To connect the balance to a printer, PC or network GLP/ISO log: the balance displays the weight, date and time, regardless of printer connected Piece counting: Reference quantities selectable. Display can be switched from piece to weight. Recipe level A: Separate memory for the weight of the tare container and the recipe ingredients (net total). Percentage determination: Displays the deviation from the reference weight (100%) in % instead of grams. Suspended weighing: load support with hook on the underside of the balance. Weighing units: Can be switched to e.g. nonmetric units at the touch of a key. See balance model. Universal mains adapter: with universal input and optional input socket adapters for EU, GB, USA Single cell technology: Advanced version of the classic electromagnetic force compensation principle. The load cells are milled from a single aluminium block achieving high mechanical strength, fast response characteristics and greater measurement stability, e.g. temperature behaviour and high reproducibility. 3 years warranty

TECHNICAL DATA

Weighing capacity [Max]220 g
Readability [d]0,1 mg
Verification scale interval [e]1 mg
Conformity assessment possible ex works
Minimum weight [Min]10 mg
Linearity± 0,2 mg
Reproducibility0,1 mg
Stabilization time4 s
USP Minimum weight of sample (k = 2, U = 0.1%)200 mg

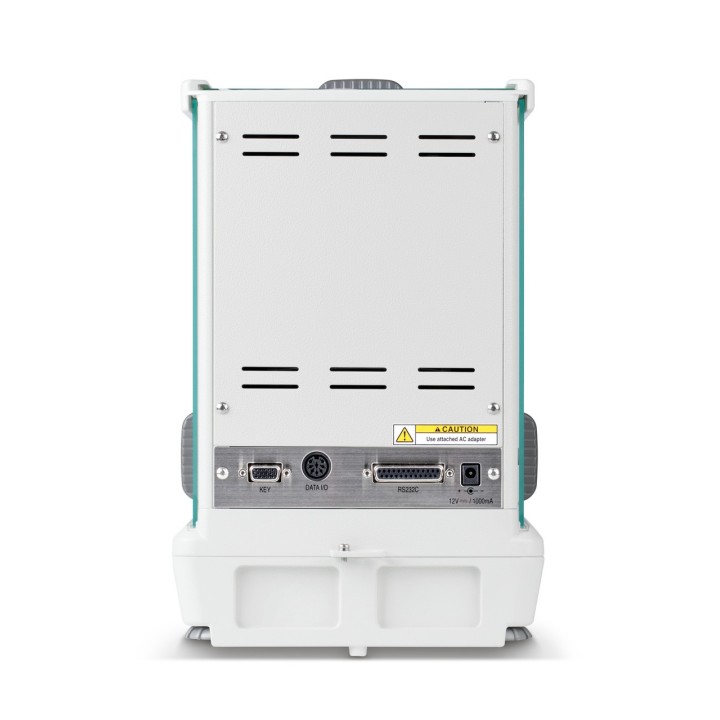

InterfacesRS-232 standard
Adjustment optionsAdjusting with external weight, Internal calibration (automatic), Adjusting with internal weight (manual)
Ambient temperature10 °C – 30 °C
Dimensions weighing surface (Ø)80 mm
Material draught shieldglass
Material housingmetal
Dimension housing (W×D×H)217×345×330 mm
Material weighing platestainless steel
Net weight approx.8 kg
Construction type of the scaleSingle-range balance
Calibration : without calibration
Out of Stock
€2,300.00
Tax excluded
Quantity

Out-of-Stock
Add to Compare
Add to Wishlist

The premium Analytical balance KERN ABT 220-4NM with single-cell weighing system

  • Automatic internal adjustment in the case of a change in temperature ≥ 0,5 °C or timecontrolled every 4 h, guarantees high degree of accuracy and makes the balance independent of its location of use
  • Dosage aid: High stability mode and other filter settings can be selected
  • Simple recipe weighing and documenting with a combined tare/print function. In addition, the ingredients for the recipe are numbered automatically and printed out with their corresponding number and nominal weight
  • Identification number: 4 digits, printed on calibration protocol freely programmable
  • Printout of a GLP-compliant calibration report conveniently at the touch of a button
  • Automatic data output to the PC/printer each time the balance is steady
  • Large glass draught shield with 3 sliding doors for easy access to the items being weighed.
  • Protective working cover included with delivery


Single-cell advanced technology:

  • Fully automatic manufactured weighing cell from one piece of material
  • Stable temperature behaviour
  • Short stabilisation time: Steady weight values within approx. 5 sec under laboratory conditions
  • Shock proof construction
  • High corner load performance
: ABT 220-4NM
