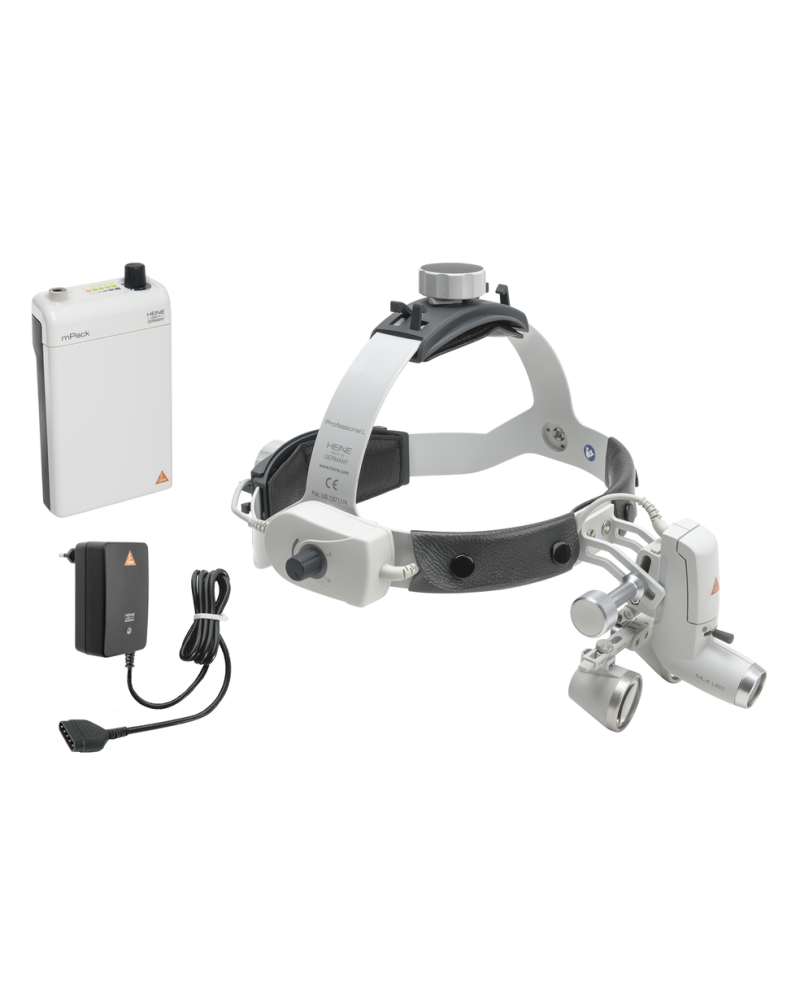

HEINE ML 4 LED Kit 11c with HR 2,5x/520 mm

• LED in HQ: The new standard in LED illumination defining optimal light intensity, homogeneity and colour rendering for the most accurate diagnosis. Red is red, blue is blue. Colour temperature: typ. 5,500 K, Colour Rendering Index (CRI) > 90, exceptional colour rendering.
• Adjustable illumination spot size: 30 mm to 80 mm spot size range (at 420 mm working distance) to fit any examination situation.
• Bright and homogenous illumination. Absolutely bright light spot that is uniform from edge-to-edge for the perfect illumination in all examination situations.
• Stepless light intensity control. Optimal brightness setting prevents reflexes.
• Flexibility. Flexible Power Source Options: 100 % mobility with a choice of cable-free mPack UNPLUGGED head-worn battery or mPack belt-worn battery pack.
• Coaxial illumination. Coaxial design ensures a completely shadow-free image and allows for excellent illumination of difficult to see areas.
• Comfortable and secure fit. The Professional L headband has multiple adjustment points and soft padding for comfort and stability – even during long examinations.
• Optional filters. Polarisation Filter P 2 improves contrast and yellow filter reduces blue light.

Technical Specification

• Illumination Typ. 90,000 Lux (measured at a working distance of 180 mm from the light emission to the object)
• Colour Temperature Typ. 5,500 Kelvin
• LED Operating Life Typ. 50,000 hours
• Spot Adjustment 30 mm to 80 mm at 420 mm working distance
• Angle of Declination Stepless and individually adjustable for every examination
• Rheostat Headband-mounted
• Operating Time Typ. 8.5 hours with mPack and typ. 3.5 hours with mPack UNPLUGGED of continuous ON time at full power

How to choose the correct Loupe

HEINE® HR 2.5x Binocular Loupes

with i-View loupe mount

• Achromatic optics for crisp, bright images with colour-correction.
• Lightweight (51 g).
• Water-resistant.
• Independent adjustment of left and right optics for perfect PD adjustment.
• High magnification with a large field of view and excellent depth of field.
• i-View loupe mount provides any angle of view and flips up the optics independently

HEINE® Professional L Headband without S-GUARD

• Ergonomic nose pad for comfort during long procedures.
• Fully-adjustable for height and width to fit any head.
• Hygienic and comfortable leather cushions.

HEINE i-View for ML 4 LED HeadLight

Provides any angle of view and flips up the optics independently of the illumination beam.

HEINE® mPack

Portable Power Pack for OMEGA 500 and ML 4 HeadLight

• Freedom from cables that tie the user to desk, wall or static power supplies.
• Triple the Capacity with Li-ion Technology. Compared with current NiCd systems. When fully charged at least 3 x the capacity of conventional NiCd systems. More than double of other Li-ion systems. No memory effect.
• Fast Charge. Charges to full capacity in typ. 2 hours.
• Charge status indicator. Always lets you know how much operating charge you have left.
• Operating time: typ. 8.5 hours for ML 4 LED HeadLight
• Flexible Charging Options. Charge in the EN 50 Charger base station, or with mobile plug-in transformer.
• Intelligent. Automatically switches to “charge” mode when inserted in EN 50.
• Can also be used as mains power supply even while in “charge” mode.
• Automatic remote power adjustment for compatibility with all HEINE 6 V and selected LED instruments.
• Stepless light intensity control 0.5 – 100 %. Optimum brightness setting prevents reflexes.
• 100 – 240 V Compatible Transformer incl. 4 plugs for world wide compatibility.
