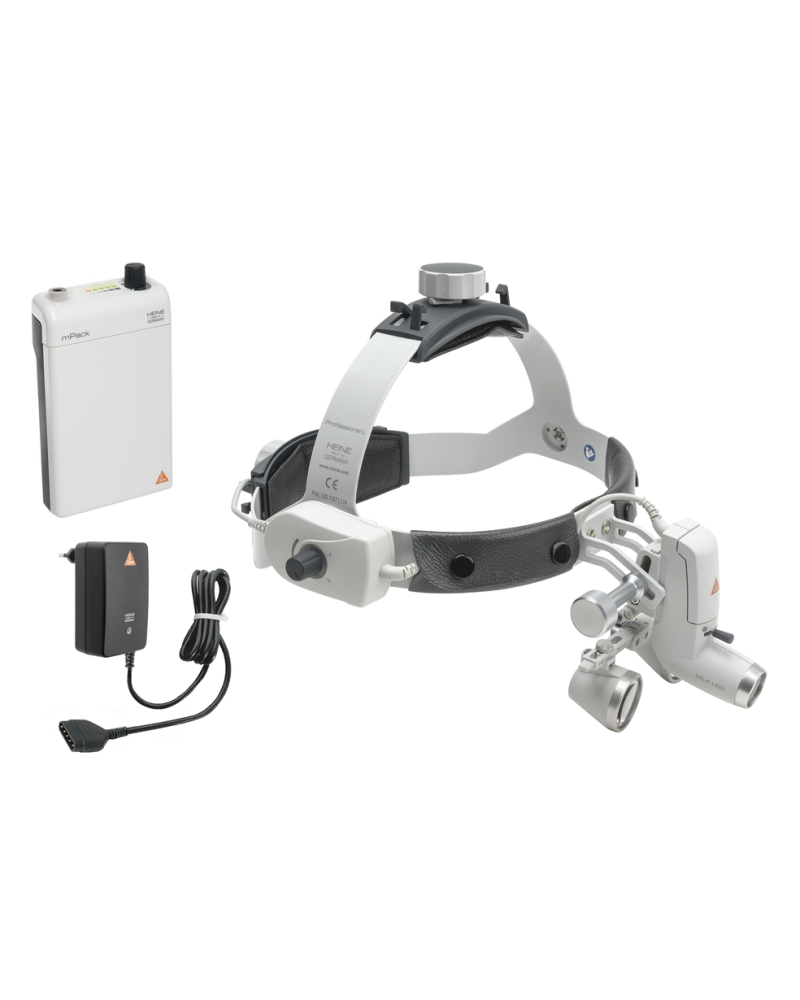

HEINE ML 4 LED Kit 2c with loupes HR 2,5x

HEINE ML4 LED HeadLight Kit 2c with loupes HR 2,5x/420

The following Kit 2c contain:

  • HEINE ML4 LED HeadLight
  • HEINE HR 2.5x/420 Binocular Loupes with i-View
  • HEINE Professional L headband without S-GUARD
  • HEINE mPack and plug-in transformer
€2,291.10
€2,061.99Save 10%
Tax excluded
8-11 days
Payment
discover visa googlewallet paypal mastercard americanexpress

HEINE ML4 LED HeadLight

Ultra bright coaxial LED-HQ illumination

  • LED in HQ: The new standard in LED illumination defining optimal light intensity, homogeneity and colour rendering for the most accurate diagnosis. Red is red, blue is blue. Colour temperature: typ. 5,500 K, Colour Rendering Index (CRI) > 90, exceptional colour rendering.
  • Adjustable illumination spot size: 30 mm to 80 mm spot size range (at 420 mm working distance) to fit any examination situation.
  • Bright and homogenous illumination. Absolutely bright light spot that is uniform from edge-to-edge for the perfect illumination in all examination situations.
  • Stepless light intensity control. Optimal brightness setting prevents reflexes.
  • Flexibility. Flexible Power Source Options: 100 % mobility with a choice of cable-free mPack UNPLUGGED head-worn battery or mPack belt-worn battery pack.
  • Coaxial illumination. Coaxial design ensures a completely shadow-free image and allows for excellent illumination of difficult to see areas.
  • Comfortable and secure fit. The Professional L headband has multiple adjustment points and soft padding for comfort and stability – even during long examinations.
  • Optional filters. Polarisation Filter P 2 improves contrast and yellow filter reduces blue light.

Technical Specification

  • Illumination Typ. 90,000 Lux (measured at a working distance of 180 mm from the light emission to the object)
  • Colour Temperature Typ. 5,500 Kelvin
  • LED Operating Life Typ. 50,000 hours
  • Spot Adjustment 30 mm to 80 mm at 420 mm working distance
  • Angle of Declination Stepless and individually adjustable for every examination
  • Rheostat Headband-mounted
  • Operating Time Typ. 8.5 hours with mPack and typ. 3.5 hours with mPack UNPLUGGED of continuous ON time at full power

How to choose the correct Loupe

HEINE® HR 2.5 x High Resolution Binocular Loupes

with i-View loupe mount

  • Achromatic optics for crisp, bright images with colour-correction.
  • Lightweight (51 g).
  • Water-resistant.
  • Independent adjustment of left and right optics for perfect PD adjustment.
  • High magnification with a large field of view and excellent depth of field.
  • i-View loupe mount provides any angle of view and flips up the optics independently

HEINE® Professional L Headband without S-GUARD

  • Ergonomic nose pad for comfort during long procedures.
  • Fully-adjustable for height and width to fit any head.
  • Hygienic and comfortable leather cushions.

HEINE i-View for HEINE ML4 LED HeadLight

Provides any angle of view and flips up the optics independently of the illumination beam.

HEINE® mPack

Portable Power Pack for HEINE ML4 LED HeadLight

  • Freedom from cables that tie the user to desk, wall or static power supplies.
  • Triple the Capacity with Li-ion Technology. Compared with current NiCd systems. When fully charged at least 3 x the capacity of conventional NiCd systems. More than double of other Li-ion systems. No memory effect.
  • Fast Charge. Charges to full capacity in typ. 2 hours.
  • Charge status indicator. Always lets you know how much operating charge you have left.
  • Operating time: typ. 8.5 hours for HEINE ML4 LED HeadLight
  • Flexible Charging Options. Charge in the EN 50 Charger base station, or with mobile plug-in transformer.
  • Intelligent. Automatically switches to “charge” mode when inserted in EN 50.
  • Can also be used as mains power supply even while in “charge” mode.
  • Automatic remote power adjustment for compatibility with all HEINE 6 V and selected LED instruments.
  • Stepless light intensity control 0.5 – 100 %. Optimum brightness setting prevents reflexes.
  • 100 – 240 V Compatible Transformer incl. 4 plugs for world wide compatibility.

J-008.31.453C

Data sheet

Power Source
mPack and plug-in transformer
Light Source
LED
Illumination
90 000 lux at a working distance of 180 mm
Colour temperature
5500 K
Magnification
2.5x
Working distance
420 mm (16")
Field of view
130 mm (5")
Depth of field
180 mm (7")
Mounting options
Professional L Headband
Duration of Guarantee
5 years
